Saeco HD8838 - Page 8

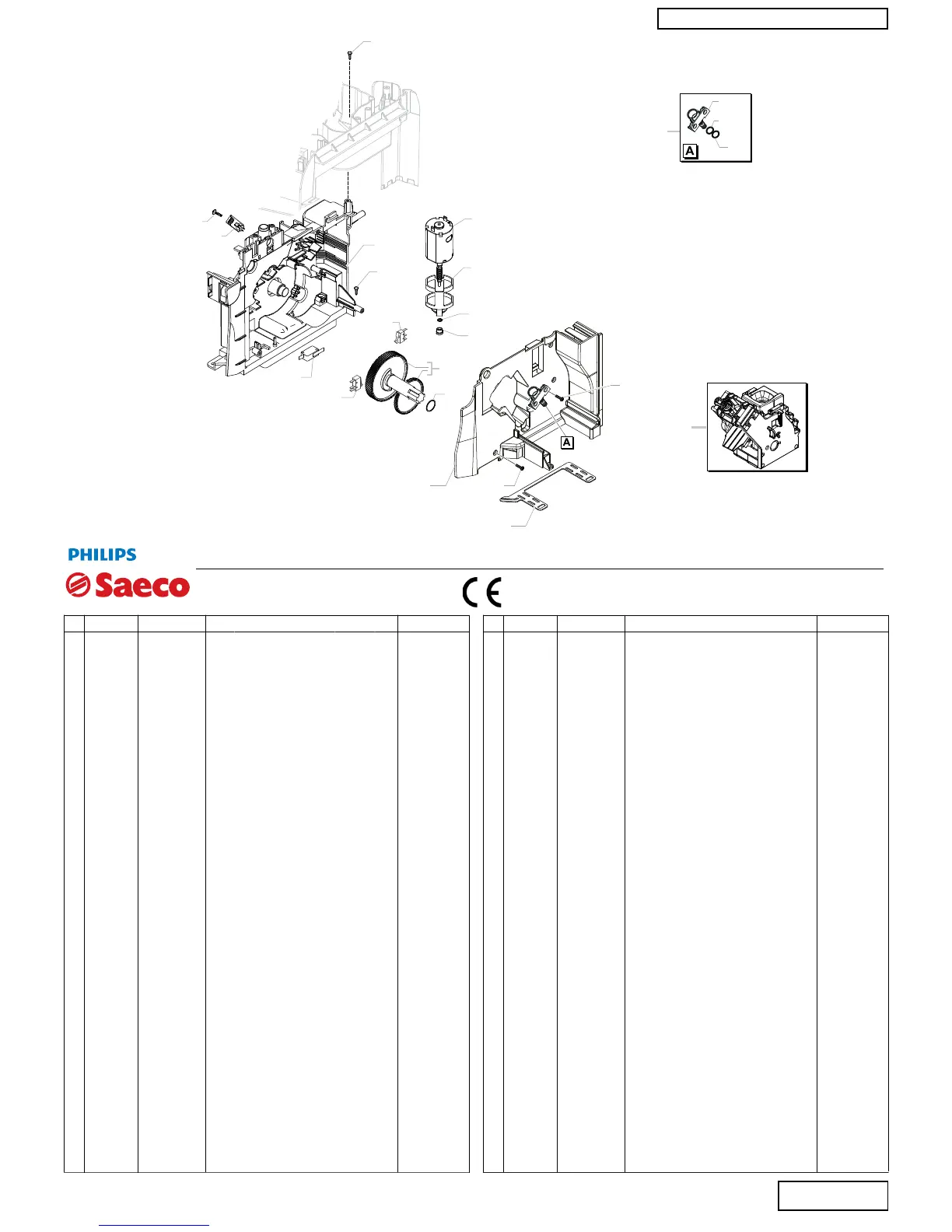

PSA SYNTIA CAPPUCCINO
Exp. E74154 Rev.05-30/06/13
HD8838/01-02-03-04-06-08-09-31
HD8838/32-41-43-47-HD8839/11-32
Cod.10003326-3598-3327-3762-3873-68-3560-3824
Cod.10003929-4076-77-3879-3769-3989
17
15
10
1
3
2
2
4
9
8
5
10
10
16
10
6
7
12
13
11
14
10
18
POS
POS
CODE
CODE
DESCRIPTION
DESCRIPTION
NOTE
NOTE
12NC
12NC
TABLE 6/7
01 17000366 996530066736 BLK RATIOMOTOR MOUNTING PLATE XSMC ASSY.
02 NE05.038 996530058869 MICROSWITCH SAIA XCG5-81-P5
03 20000900 996530009913 SPARES KIT GEARS FOR RATIOMOTOR V2
04 9161.132 996530050569 MYLAR WASHER FOR RATIOMOTOR
05 11005214 996530002796 MOTOR FOR RATIOMOTOR P124 ASSY.
06 9121.046 996530049898 BRONZE SINTERED BUSH FOR MOTOR RATIOMOT.
07 148380200 996530017424 BAKELIZZATE WASHER D=5,5
08 9121.044 996530049896 ANTIVIBRATION FOR MOTOR
09 11003754 996530001899 BLK RATIOMOT.MOUNTING PLATE COVER P0057
10 12001728 996530070321 SCREW TCBR TORX 10 3,5X12 PLAST.SS
11 11013531 996530006805 PIN FOR FLOW SELECTOR FAUCET P0057 ASSY.
12 11013530 996530006804 PIN FOR FLOW SELECTOR FAUCET V2 P0057
13 NM01.035 996530059399 OR ORM 0090-20 SILICONE
14 NM01.057 996530059419 OR ORM 0050-20 IN SILICONE
15 12001890 996530073209 MICROSWITCH XG/V3D
16 11013205 996530006688 BLACK SEAL FOR RATIOMOTOR PLATE XSM
17 17000064 996530067437 BLK CAPACIT.SENSOR DEADLOCK INSERT XSM
18 11031554 996530073362 BLACK BREW UNIT 8GR.5BAR HGO
