CONNECTION OF EACH PART
■ Wall Mounting Bracket Installation

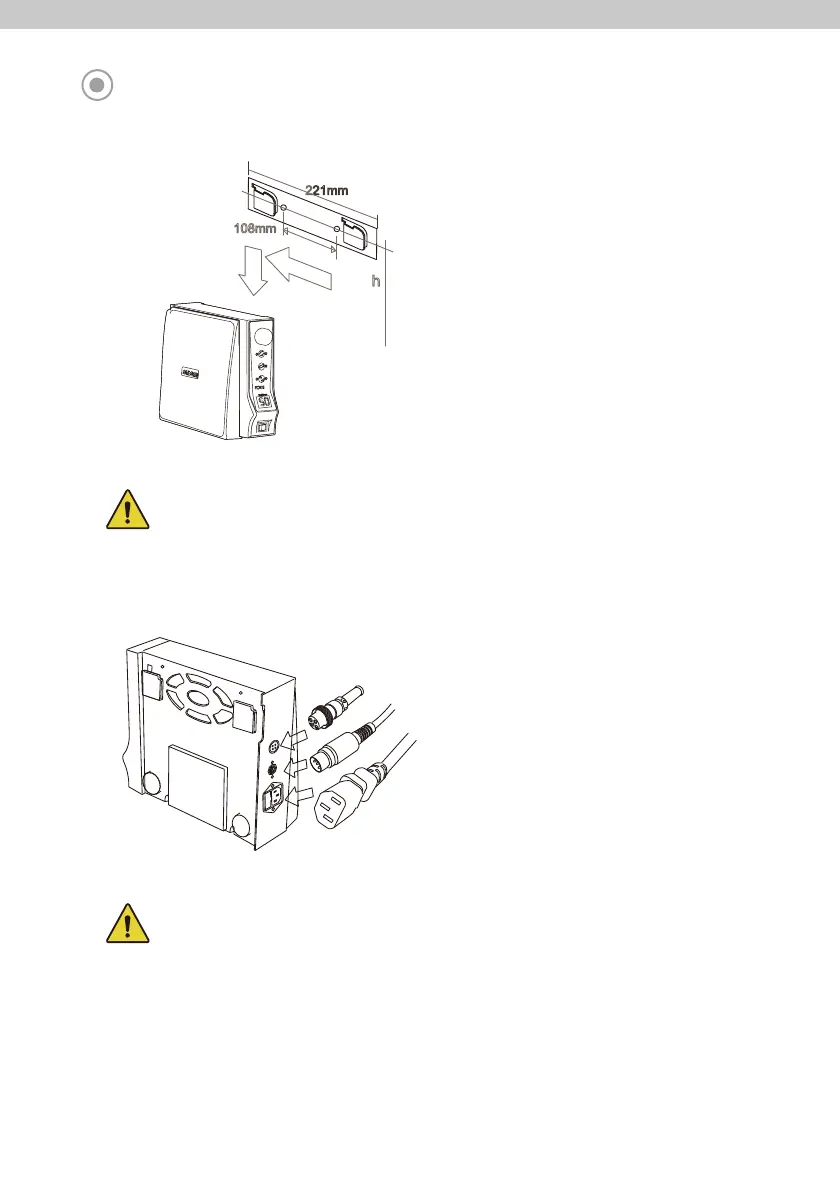

1. Using the screws and bolts, Mount the wall mounting bracket at the lower side of workbench as the picture.
2. After look the hole position, mount the control box to mounting bracket as direction like picture(A->B) without shaking.
- Pay attention to not pop out the head of screw or bolt than surface of bracket.
1. Connect the power cord to the power socket.
- Before connect the power cord, make sure to check the power off.
- Make sure to check that the speed control dial is set to ‘0’.
2. Connect the foot controller cord.
3. Connect the handpiece cord.
■ Control Box Connection
A
To Next Page
