37

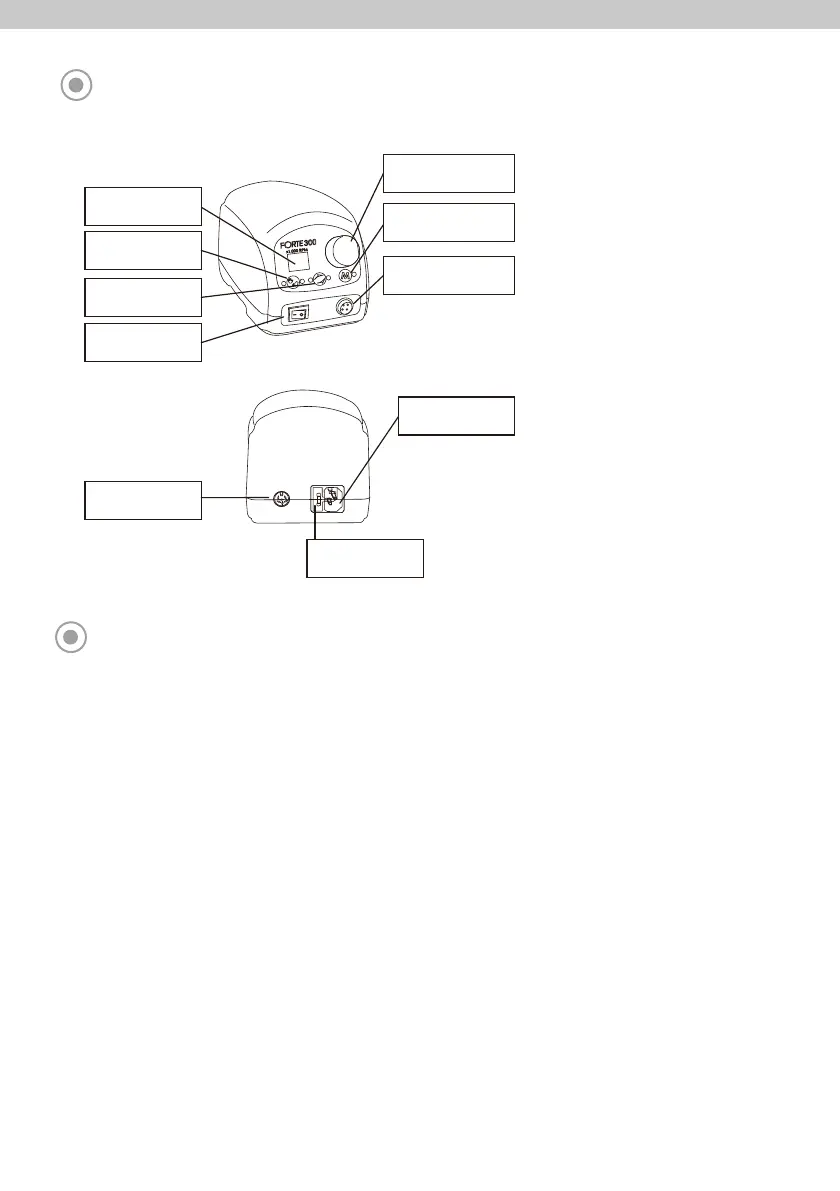

PART NAME OF CONTROL BOX
BUTTONS ON THE OPERATION PANEL
■ Indicator:
- RPM: RPM is displayed. Displayed number X 1,000 is actual RPM.
- Error Code: When errors occur, the corresponding errors are displayed.
■ Speed Control Dial:
This dial is used to control RPM. Turn the clockwise, RPM is increased. Turn the reverse, RPM is decreased.
■ Hand/Foot Select Button:
This Button is used to select the handpiece operation method.
- Hand: Handpiece is operated by ‘motor button’.
- Foot: Handpiece is operated by foot controller.
■ Rotation Direction Select Button:
This button is used to select rotation direction to the clockwise or reverse.
■ Motor Button:
This button is used to operate the handpiece when select operation method by hand.
■ Power Switch:
This switch is used to turn on the power or
off.
- I: Power On
- O: Power Off
Indicator
Speed Control Dial
Hand/Foot
Select Button
Rotation Direction
Select Button
Motor Button
Power Switch
Handpiece Connector
Foot Controller
Connector
Fuse Box
Power Socket
To Next Page
