INTEGRA/-S/-G/-GS User Manual WEB GUI
SAF Tehnika JSC
45
d

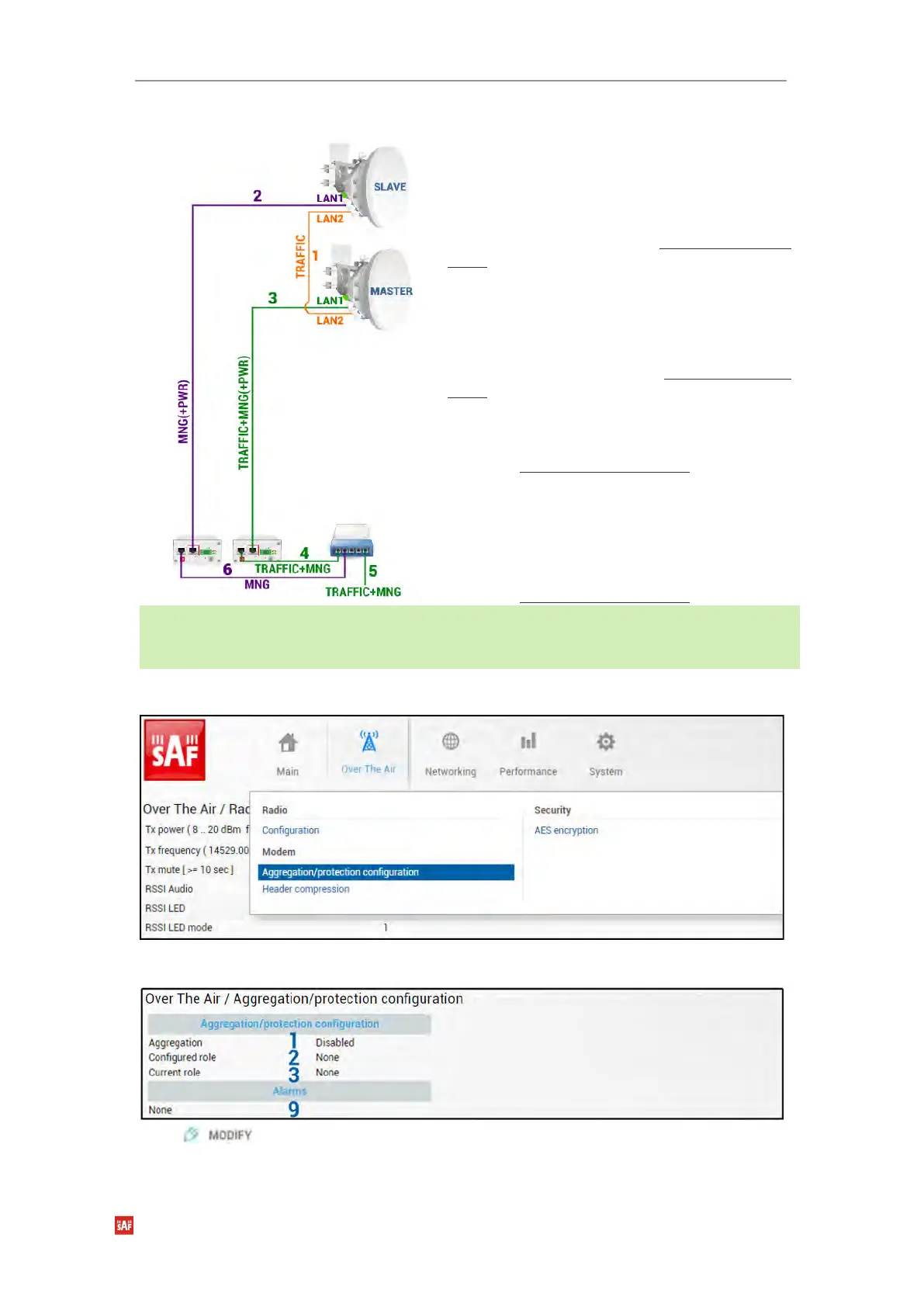

1. Mandatory fiber optic cable between LAN2
(optical) ports on both units.
2. Electrical Ethernet cable (1000Base-T) between
PoE injector’s (#1) DATA+PWR port and LAN1
(electrical) port of the Slave FODU. Both data and
power are carried, therefore the total length of
cables #2 and #6 combined should not exceed
100m. If the Master link is down, traffic will be
redirected to this cable.
3. Electrical Ethernet cable (1000Base-T) between
PoE injector’s (#2) DATA+PWR port and LAN1
(electrical) port of the Master FODU. Both data
and power are carried, therefore the total length
of cables #3 and #4 combined should not exceed
100m.
4. Electrical Ethernet cable (1000Base-T) between
PoE injector’s (#2) DATA port and external
switch. The total length of cables #3 and #4
combined should not exceed 100m.
5. Electrical Ethernet cable (1000Base-T) between
the external switch and CPE for both traffic and
management traffic.
6. Electrical Ethernet cable (1000Base-T) between
PoE injector’s (#1) DATA port and external
switch. The total length of cables #2 and #6
combined should not exceed 100m.
Advantages: 1) only a single fiber optic cable is required; 2) only two cables are installed between
FODUs and indoor facility; 3) Slave link will be able to reconfigure to 1+0 in case the Master unit goes
down (2+0 redundancy).
Configuration in Web GUI
Status mode
Press button.
