Chapter 1: OVERVIEW
Labeling

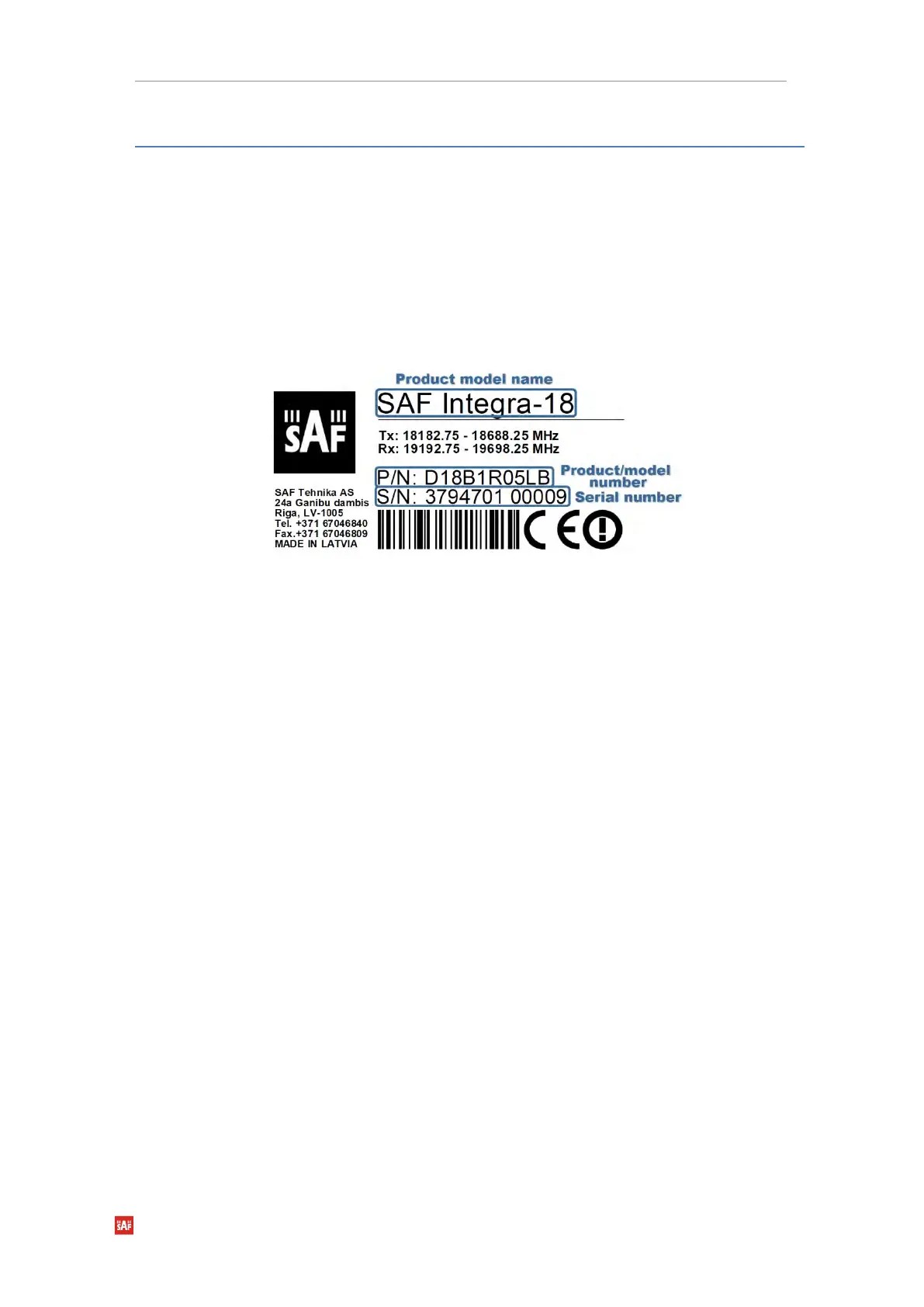

The label contains the following information (see samples in the picture below):
Product model name (“SAF Integra-18”). The FODU model name example is:
- SAF Integra-18 for Integra 18GHz FODU,
- SAF Integra-GS-23 for Integra-GS 23GHz FODU, etc
Product Number / Model Number (P/N or M/N) (D18B1R05LB): product/model number
contains various information about the unit. Please see the translation below.
Serial Number (3794701 00009): the serial number uniquely identifies the unit.
P/N or M/N translation:
“D” designates Integra series product;
“18” designates the frequency band (18 GHz) of the radio;
“B” designates Integra/Integra-S product type;
- “G” - designates Integra-G/Integra-GS product type;
“1” designates 1ft antenna diameter and ETSI Class 3;
- “0” - <1ft (20cm) antenna diameter and ETSI Class 3;
- “2” - 2ft antenna diameter and ETSI Class 3;
- “3” - 3ft antenna diameter and ETSI Class 3;
- “4” - 4ft antenna diameter and ETSI Class 3;
- “5” - <1ft (20cm) antenna diameter and ETSI Class 4;
- “6” - 1ft antenna diameter and ETSI Class 4;
- “7” - 2ft antenna diameter and ETSI Class 4;
- “8” - 3ft antenna diameter and ETSI Class 4;
- “9” - 4ft antenna diameter and ETSI Class 4;
- “S” - split-mount, without an integrated antenna.
“R” designates Integra with full capacity license;
- “N” - 10 Mbps Basic License;
- “L” - 100 Mbps Basic License;
- “K” - 220 Mbps Basic License;
- “X” - without AES encryption
“05” designates the version number of the radio;
“L” designates low side radio;
- “H” - high side radio
“B” designates B subband radio;
- “A” - A subband radio;
- “C” - C subband radio
Please note that the frequency range is set from the central frequency of the first 3.5 MHz
channel to the central frequency of the last 3.5 MHz channel (see the diagram below).
