INTEGRA/-S/-G/-GS User Manual WEB GUI
SAF Tehnika JSC
67

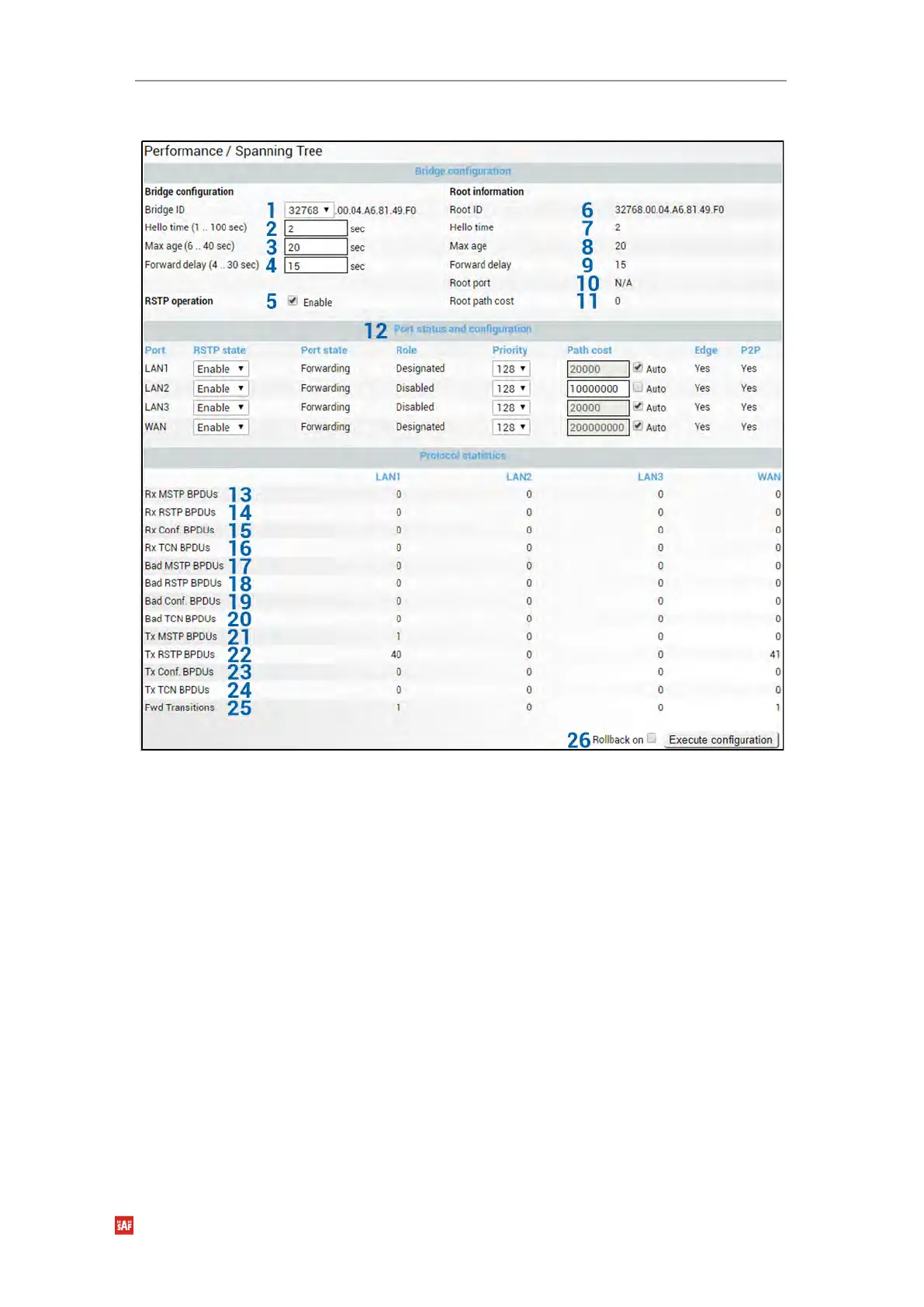

Modify mode
1) Bridge ID – Indicates the configured value of Bridge ID (status mode); allows
specifying the value of Bridge ID (modify mode). This parameter and MAC address
determines whether a given Bridge is Root Bridge. The advantage is given to the
combination of Priority and Address, which is numerically smaller.
2) Hello Time (1 – 100 sec) – Indicates configured time gap between which the BPDU
packets are being sent (status mode); allows specifying the value of Hello Time in
seconds (modify mode).
3) Max Age (6 – 40 sec) – Indicates configured time period, during which the received
BPDU packets’ information is stored for a separate port (status mode); allows
specifying the value of Max Age in seconds (modify mode).
4) Forward Delay (4 – 30 sec) – Indicates configured time period that determines the
time a separate port stays in Listening and Learning conditions (status mode); allows
specifying the value of Forward Delay in seconds (modify mode).
5) RSTP operation – Indicates configured status of RSTP (status mode); allows enable
or disable RSTP operation (modify mode).
Root information – displays the data only when RSTP is enabled:
6) Root ID – Indicates the Bridge ID of the current Root bridge;
7) Hello Time – Indicates the current hello time;
8) Max Age – Indicates the current max age;
9) Forward Delay – Indicates the current forward delay;
10) Root Port – Indicates elected root port is being shown;
11) Root Path Cost – Indicates the path cost from the current bridge to the root bridge;
