13
F@ST 1704N
Connection
Connecting your router

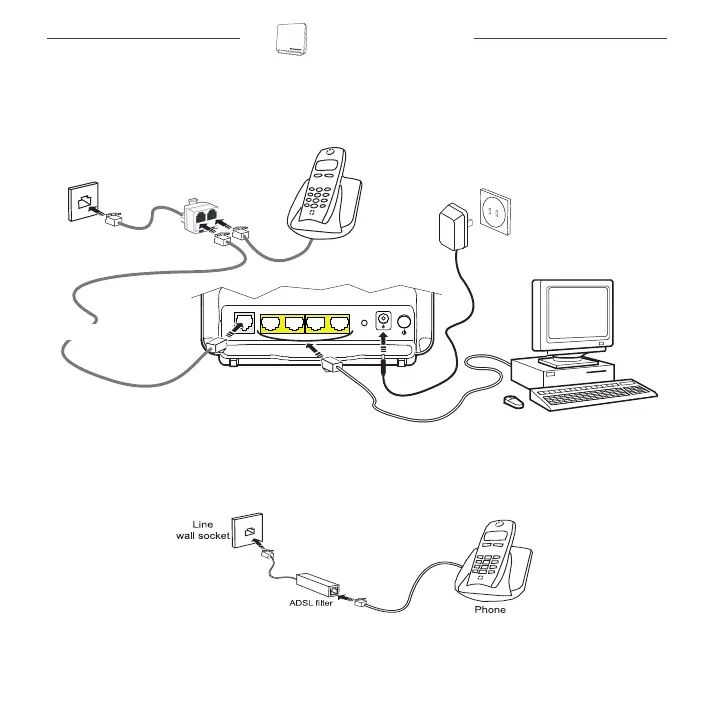

Make the connections as shown in the diagram below.
Connecting additional telephones
Make the connections as shown in this diagram.
ETH1
RESET
PWR
ETH2ETH3ETH4
ADSL
LINE
PHONE
Filter/Spitter
LINE
MODEM
Line
wall socket
PWR
Phone set
Mains Adapter
with its lead
Mains
wall socket
Line cord
QIG 253515865 Fast 1704N_EN USA-CA.book Page 13 Vendredi, 21. septembre 2012 10:49 10
