1

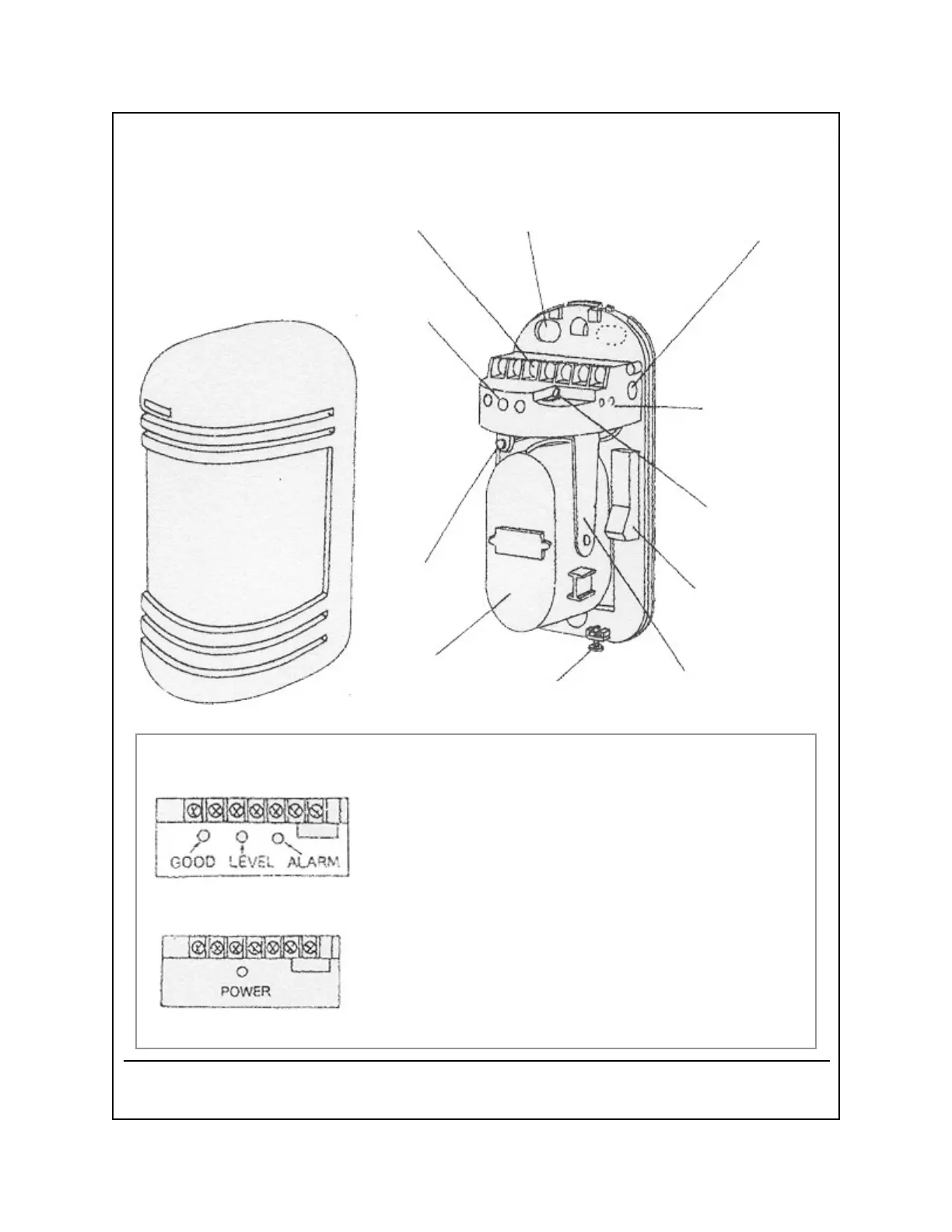

PARTS DESCRIPTION
Connection
Terminal
Wiring
Hole
2. Obscuration Time
Adjustment
(Only for receiver)
1. Monitor Jack
(Only for receiver)
Tamper
Viewfinder
Horizontal Angle
Adjusting Bracket
Screw Locking
Lens
Vertical Angle
Adjusting Screw
Indication
Lamp
Cover
Main Body
Receiver:
• Level (Red)
Brightness varies, depending on incident level.
• Alarm (Red)
On indicated alarm.
• Good (Green)
On indicates normal conditions, beam aligned.
1. Monitor Jack:
Should be used for making the optimum optical axis adjustment.
(Refer to “how to use monitor jack”)
2. Obscuration time adjustment:
To be used for setting the obscuration time to alarm.
(Refer to “adjustment of obscuration time”)
Transmitter
• Power (Green)
On indicates power is normal.
1. Indication Lamp
Receiver
Transmitter
