Sailor AT2112 User Manual

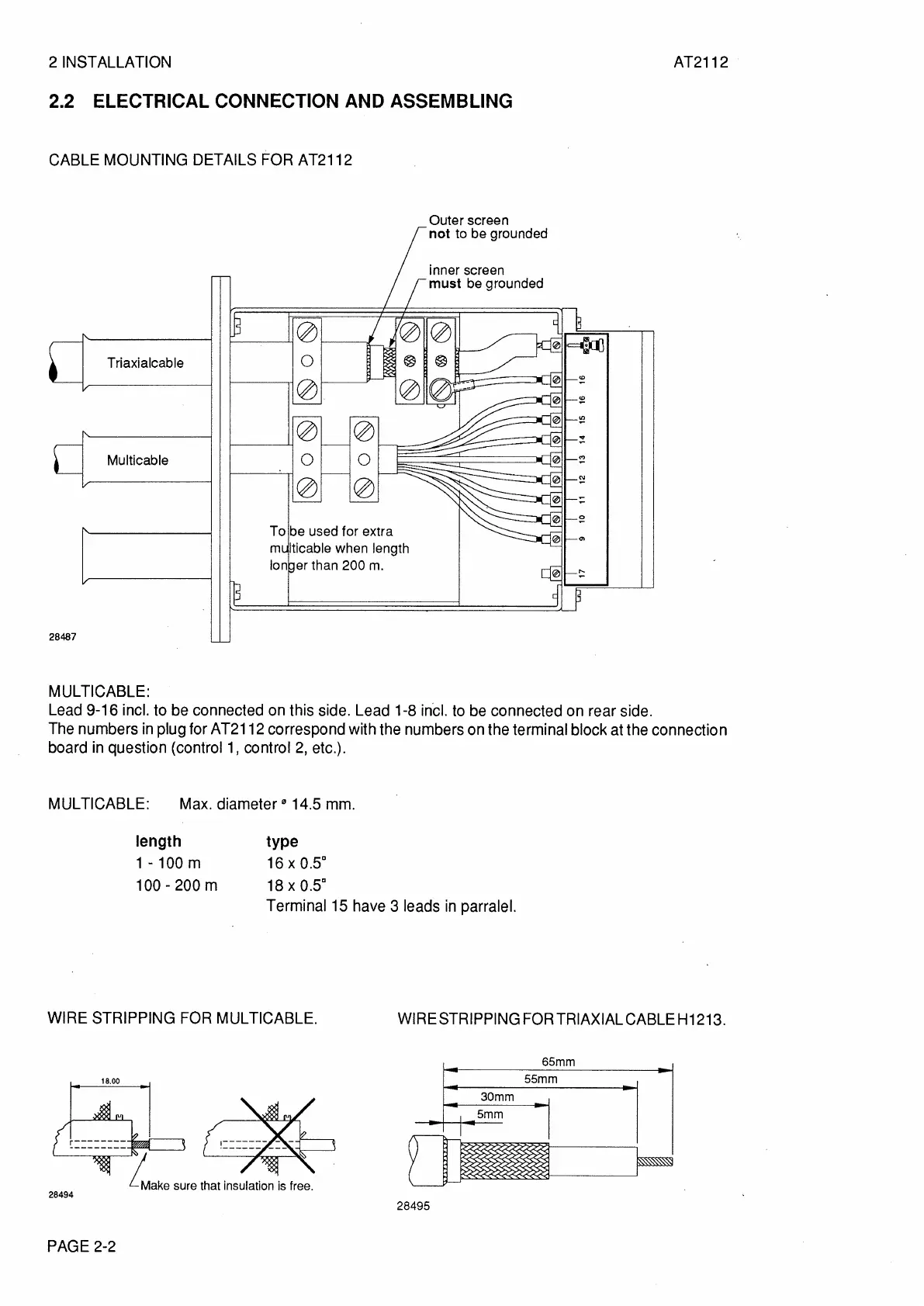

2 INST ALLA Tl ON
2.2 ELECTRICAL CONNECTION AND ASSEMBLING
GABLE MOUNTING DETAILS FOR AT2112
Triaxialcable
Multicable
28487
MUL TIGABLE:
~--'-<01 ~
0
0
0
~---'-<
0
0
Tol e used for extra
m lticable when length
Ion er than 200 m.
Outer screen
not to be grounded
inner screen
must be grounded
Lead 9-16 incl.tobe connected on this side. Lead 1-8 ind. tobe connected on rear side.
AT2112
The numbers in plug for AT2112 correspond with the numbers on the terminal block at the connection
board in question (control 1, control 2, etc.).
MUL TIGABLE: Max. diameter
0
14.5 mm.
length
1 - 100 m
100 - 200 m
type
16 X 0.5°
18x0.5°
Terminal 15 have 3 leads in parralel.
WIRE STRIPPING FOR MUL TIGABLE.
WIRESTRIPPING FORTRIAXIAL GABLE H1213.
65mm
18.00
~ 55mm
30mm _
1
1
5mm 1
- 1 -
~ 1
Zake sure that lnsuiation is free.
28494
28495
PAGE 2-2
