2 INSTALLATION
AT2112
Example

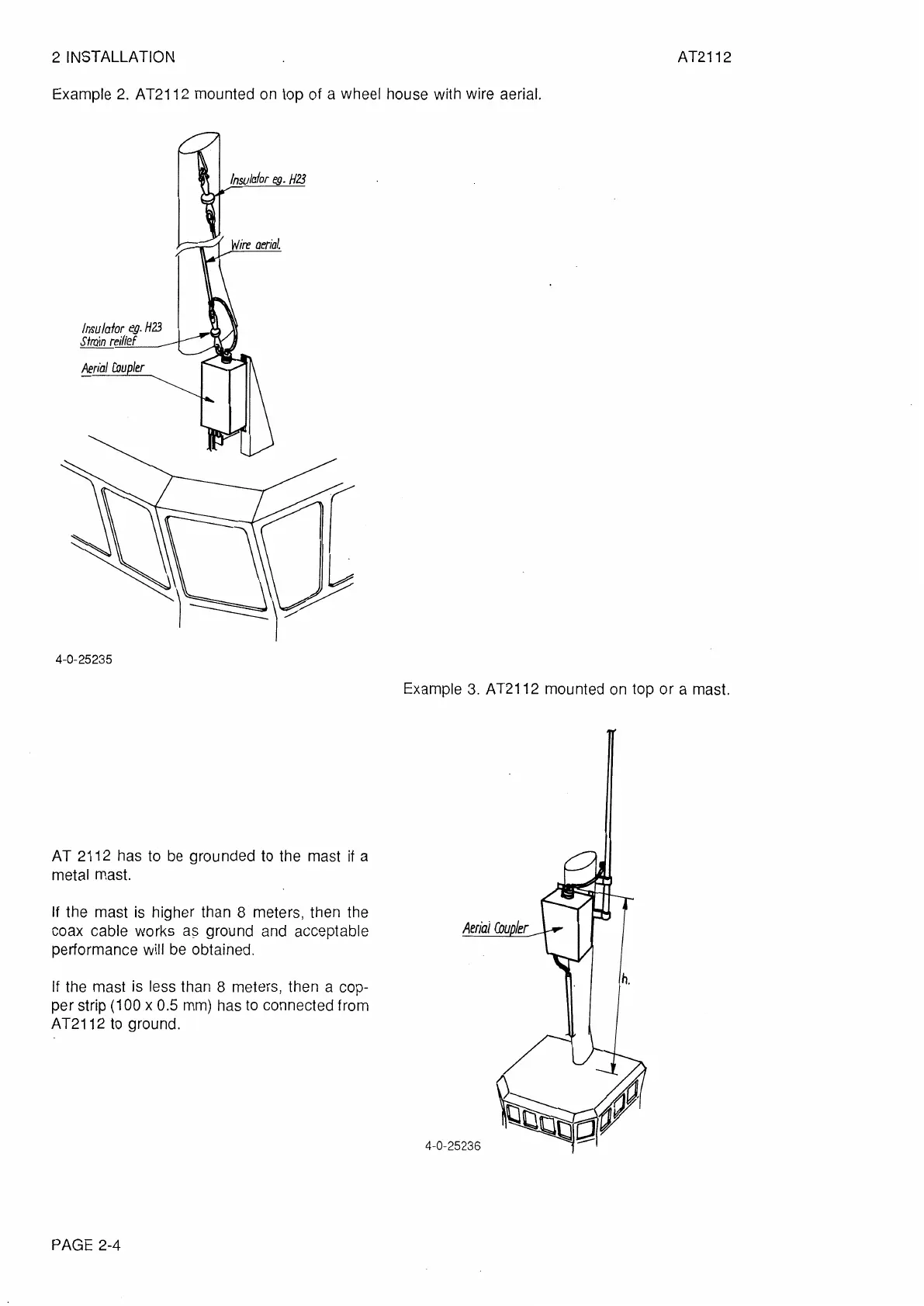

2.
AT2112 mounted on top of a wheel house with wire aerial.
lnsu/afor
eg.
H23
Strain
rei/;ef
4-0-25235
AT 2112 has
tobe
grounded to the mast
if
a
meta! mast.
lf the mast
is
higher than 8 meters, then the
coax cable works as ground and acceptable
performance will
be
obtained.
lf the mast is less than 8 meters, then a cop-
per strip (100 x 0.5 mm) has to connected from
AT2112 to ground.
PAGE 2-4
Example
3.
AT2112 mounted on top
or
a mast.
Aerial
C.Oup/er
h.
To Next Page
