Sailor SC4150 Installation Manual

4
Installation
IRIDIUM
0225

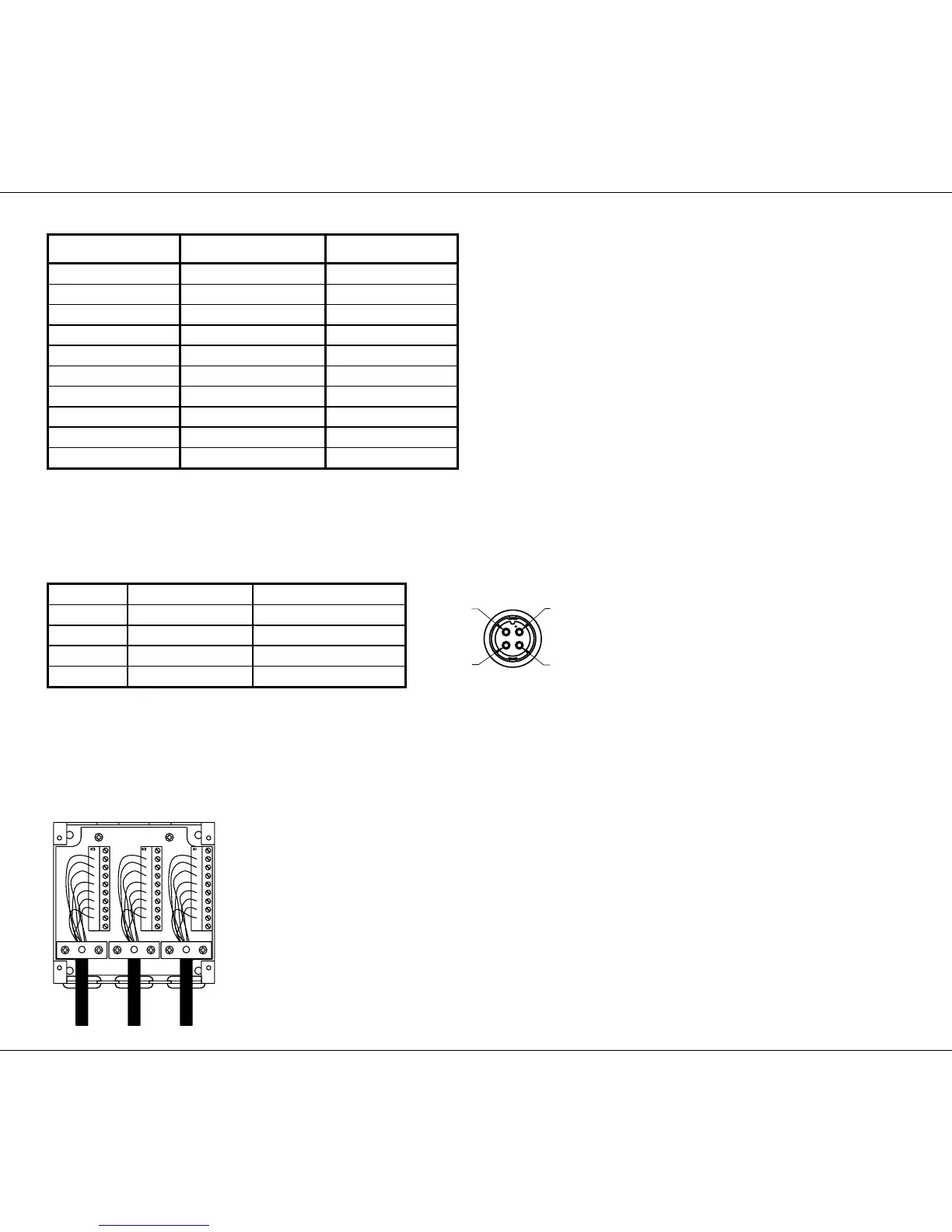

Transceiver Description Veritas
1 DCD 1
2 received data 2
3 transmitted data 3
4 data terminal ready 4
5serial GND5
6 data set ready 6
7 request to send 7
8 clear to send 8
9RI9
shield GND shield
Cable 4
Power supply
Front view
Pin no. Description Colour
1 10-32V DC red
20V DC black
3NC white
4GND green
4
3
1
2
36662A
Cable 5
Description of connections to T-connection H4196
The wire terminal blocks are connected in parallel.
36090
