Sailor SC4150 Installation Manual

3
Installation
IRIDIUM
2 Installation

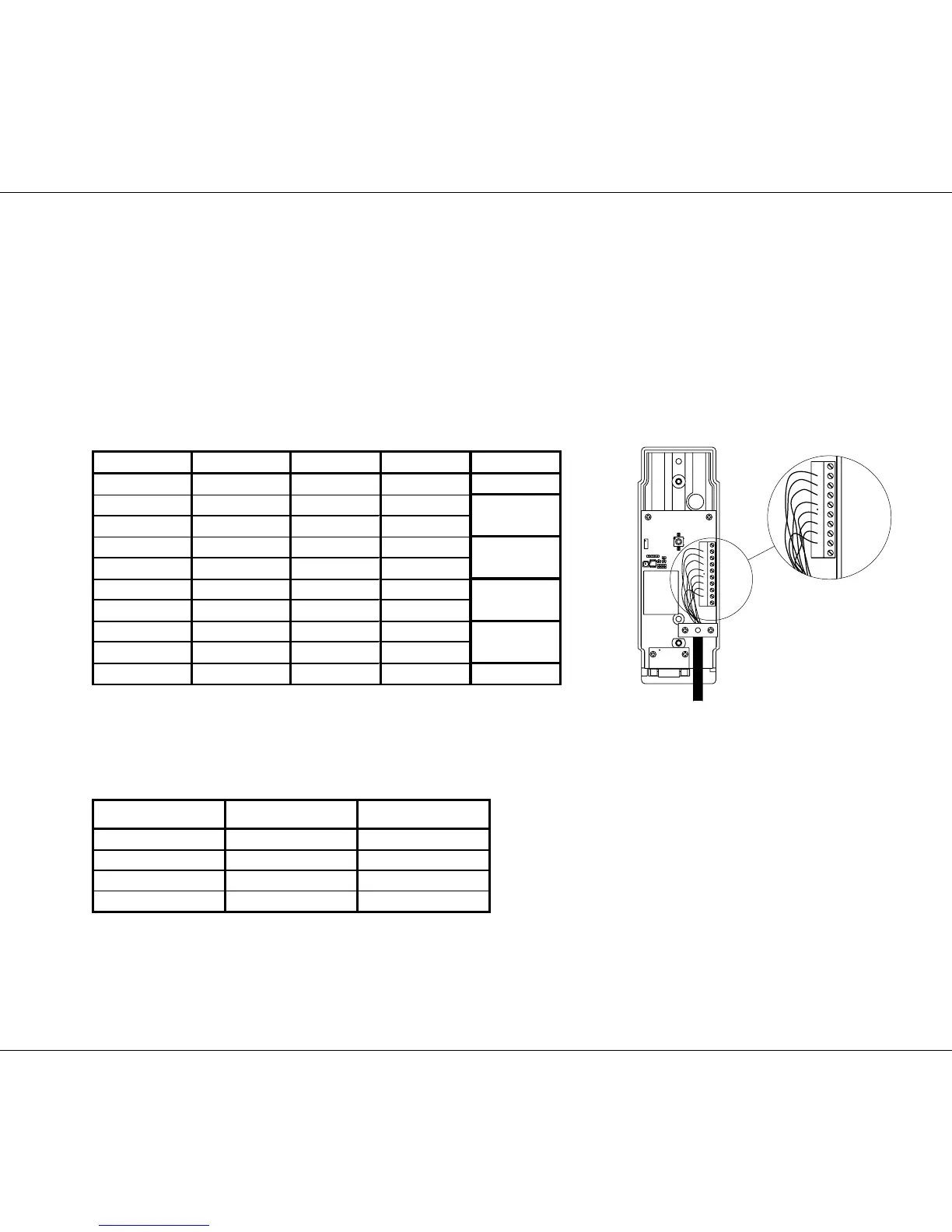

2.1 Cable Overview
Cable 1
Scanbus
Cable: 9*0.22 mm
2
shielded
shield connected to ground
Cable connector type: 9 pole sub-d male
Transceiver Description Handset Colour
1NC1
2 data+ 2 white Twisted
3 data- 3 brown pairs
4AF+4greenTwisted
5 AF- 5 yellow pairs
6 GND 6 grey Twisted
7 +24V DC 7 pink pairs
8RX_AF+8blue Twisted
9 RX_AF- 9 red pairs
shield GND shield
2
3
4
5
6
7
8
9
1
10
36088
Cable 2
Phone
Cable connector type: RJ 11
Transceiver Description Veritas
1NC1
2 phone1+ 2
3 phone1- 3
4NC4
Cable 3
Data
Cable: 9*0.22 mm
2
shielded
shield connected to ground
Cable connector type: 9 pole sub-d male
0225
