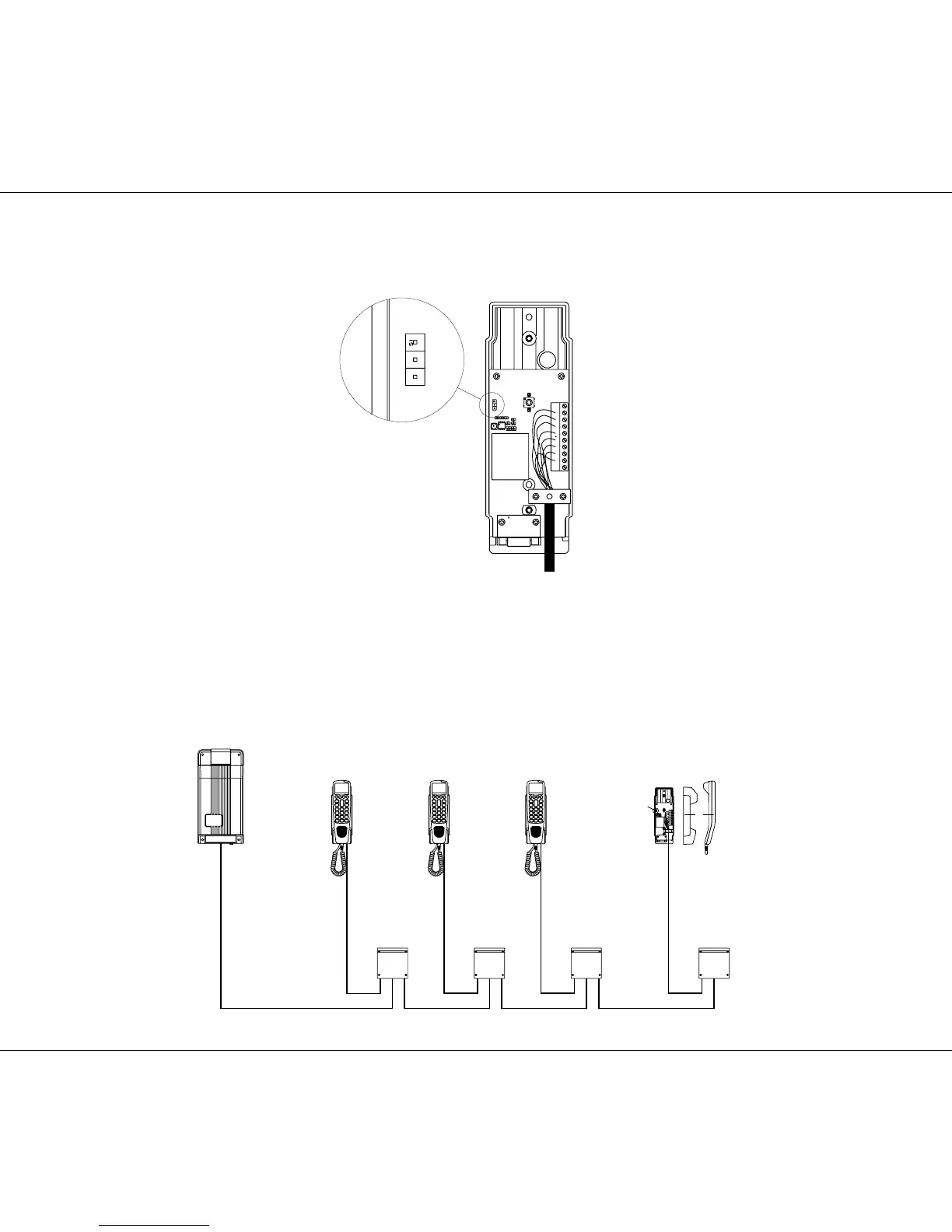

The termination in the control unit is located on the PCB in the cradle as jumper S1 (see figure below). As default the
jumper S1 is set ON.
38637
S1
ON
OFF
When configuring a system only including a transceiver unit and one control unit, no changes in the default termination
is needed. If the system includes more than one control unit, it is needed to remove some of the default terminations.
Below two examples of scanbus termination is given, when the system includes several control units.
38635
Box
Connection
Transceiver Unit
Control Unit
Terminated
Terminated
