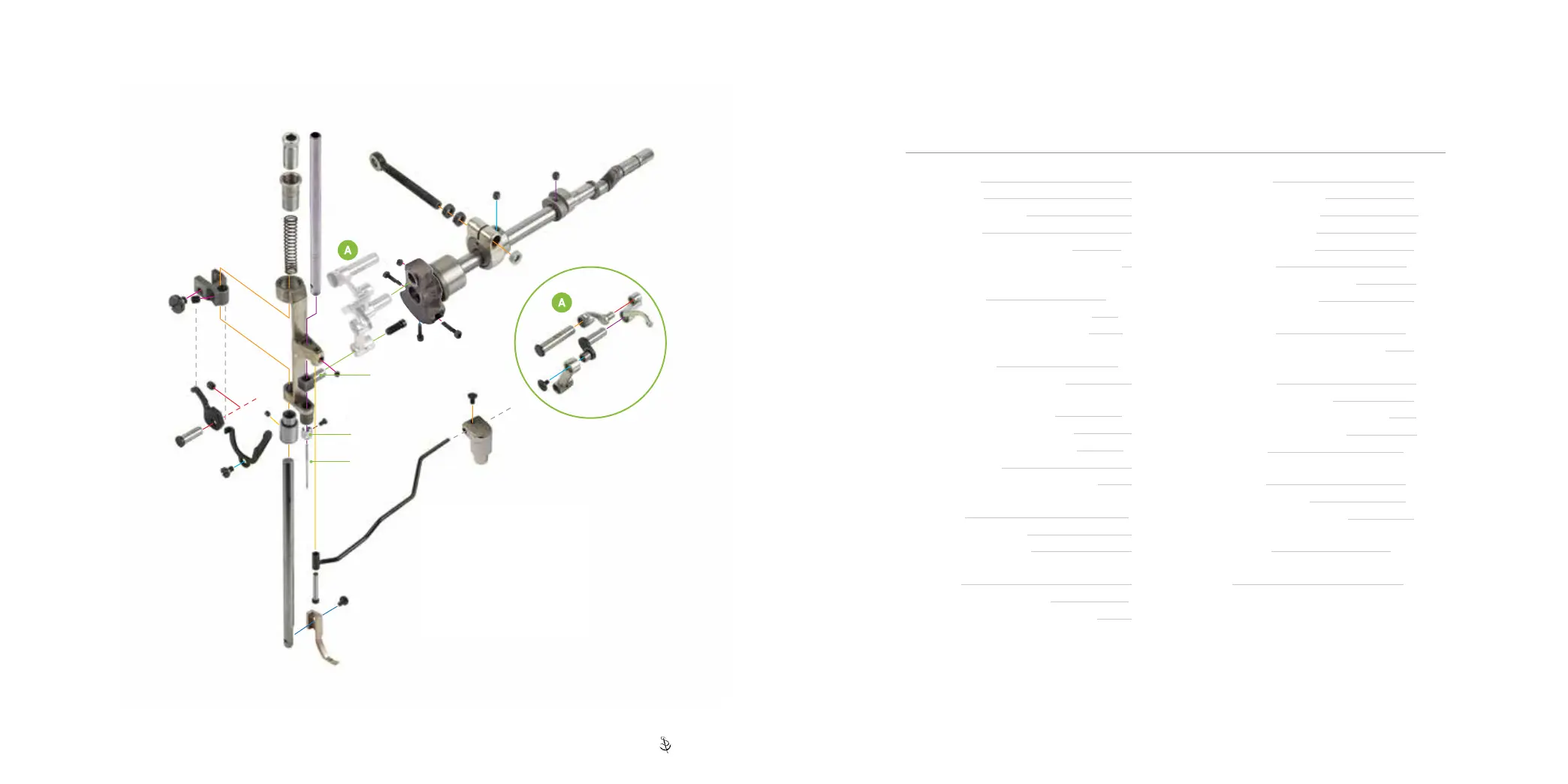

GROUP 2: Sewing Transmission Group
16
17
18
19
30
31
6
4
32
33
35
34
37
29
15
20
6
7
42
41
41
5
3
23
9
10
9
8
6
36
4
2
1
14
27
40
38
24
25
26
26
21
28
22
11
11
11
39
13
12
KEY NAME PART # KEY NAME PART #
1 Arm Shaft E053
2 Feed Cam B007
3 Arm Shaft Bushing B051
4 Set Screw A012
5 Thread Take-Up Lever Cam B048-2
6 Thread Take-Up Assembly Set Screw A029
7 Long Screw for Thread Take-Up
Lever Cam B048LS-2
8 Crank Rod Lever Cam Follower W028-4
9 Crank Connecting Rod Set Nut A027B
10 Crank Rod Lever Cam
Follower Bolt W028-1
11 Thread Take-Up Assembly E020
12 Needle Bar Connecting Rod Set
Screw - Reverse Thread E020-2
13 Needle Bar Connecting Rod B018
14 Needle Bar Connecting Stud A042S
15 Needle Screw A092
16 Presser Regulating Thumbscrew A031
17 Presser Regulating Thumbscrew
Socket W010
18 Presser Bar Spring A032
19 Needle Bar Support B016
20 Needle Bar & Zigzag Connecting Rod Set
Screw D097
21 Zigzag Connecting Rod W015
22 Needle Bar Connecting Joint Pin B099
23 Needle Bar W066
24 Needle Thread Guide W067
25 Needle #20 (135x17) 7010
26 Presser Foot Screw A036
27 Inside Presser Foot W012
28 Presser Bar A035-1
29 Presser Bar Lower Bushing B028
30 Presser Bar Bracket W039
31 Presser Bar Feed Actuator
Pivot Screw 103257
32 Tension Release Lever Drag Link W043
33 Tension Release Lever Drag
Link Set Pin D020
34 Tension Release Lever W045
35 Tension Release Lever Set Screw B046
36 Presser Bar Actuator Cam W065
37 Set Screw W052-1
38 Needle Bar Set Screw with 2�5mm
Hex Head 121695
39 Needle Crank Arm 103269
40 Connecting Rod Set Base W016
41 Short Screw for Thread Take-Up
Lever Cam B048SS-2
42 Crank Rod Lever Cam Follower Adjust
Nut W028-2
57 | Sailrite�com Ultrafeed
®
LS Guidebook | 58
