Sailrite ULTRAFEED LS - Page 33

10
25
26
20
23
19
13
11
11
12
1
2
3
3
5
4
6
28
7
24
27
17
18
14
15
11
11
16
22
23
21
15
9
8

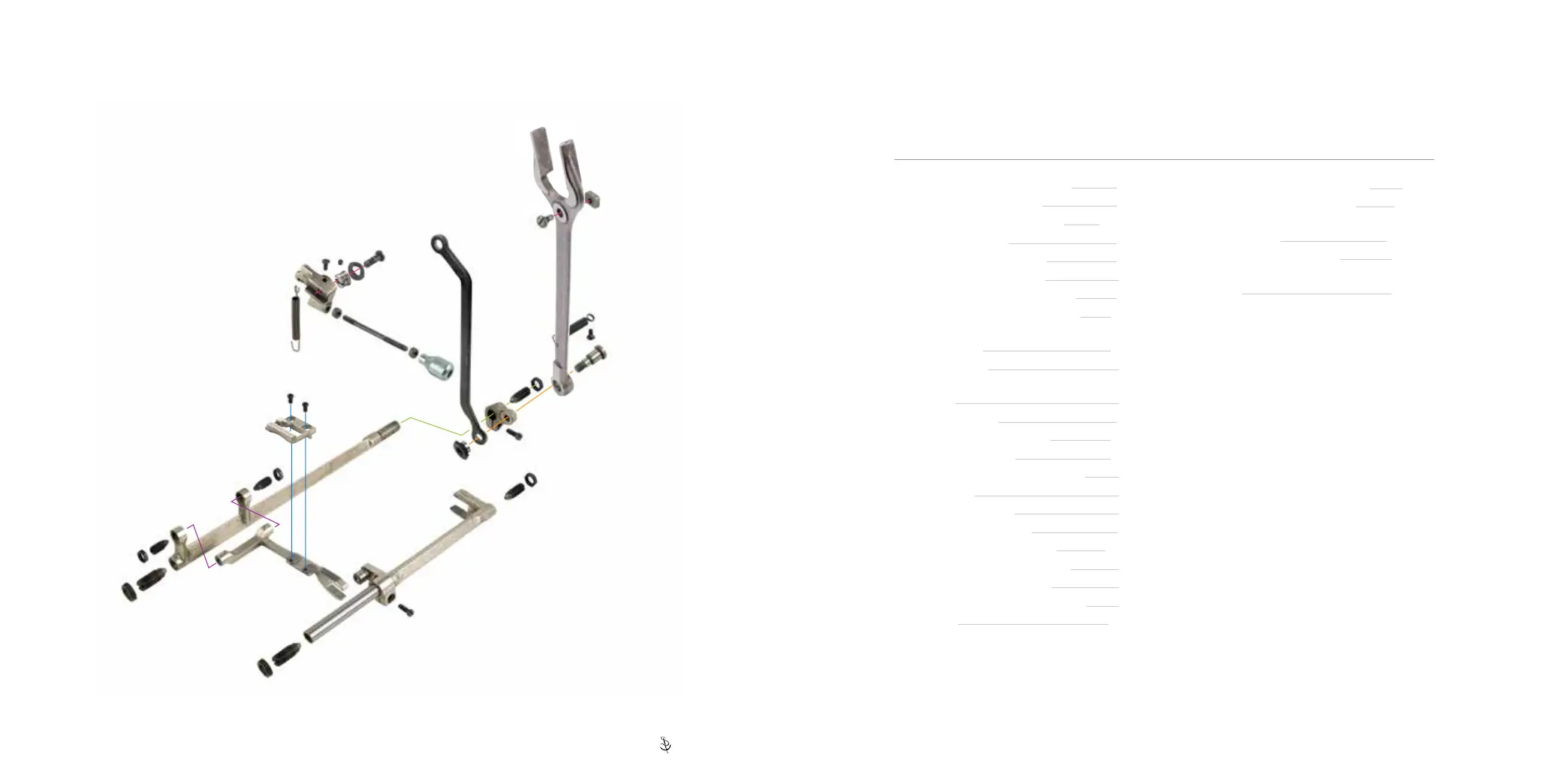

GROUP 4: Feed Transmission Group
KEY NAME PART # KEY NAME PART #
1 Feed Regulator Thumb Nut W109
2 Feed Regulator Lever W105
3 Feed Regulator Lever Nut A053B-2
4 Feed Regulator W107
5 Feed Regulator Spring W106
6 Feed Regulator Screw B010
7 Feed Regulator Pivot Screw W108
8 Feed Connection Slide Block A069B
9 Feed Connection Slide
Block Stud A069A
10 Forked Rod B103
11 Oscillating Shaft Set Screw
& Nut A023
12 Driving Crank W046
13 Feed Rock Shaft Crank A071B
14 Feed Rock Shaft A071A
15 Feed Bar Center Screw & Nut A076
16 Feed Bar A075
17 Feed Dog Screw A078
18 Sawtooth Feed Dog W011
19 Driving Crank Guide Nut W046-1
20 Driving Crank Guide Screw A061
21 Feed Lifting Rock Shaft A072
22 Feed Lifting Rock Shaft Crank A073
23 Screw B139-2
24 Feed Regulator Wavy Washer A067
25 Forked Rod Support Spring B103U
26 Forked Rod Support
Spring Screw B103US
27 Feed Regulator Bushing 124572
28 Feed Regulator Bushing Set
Screw 124573
