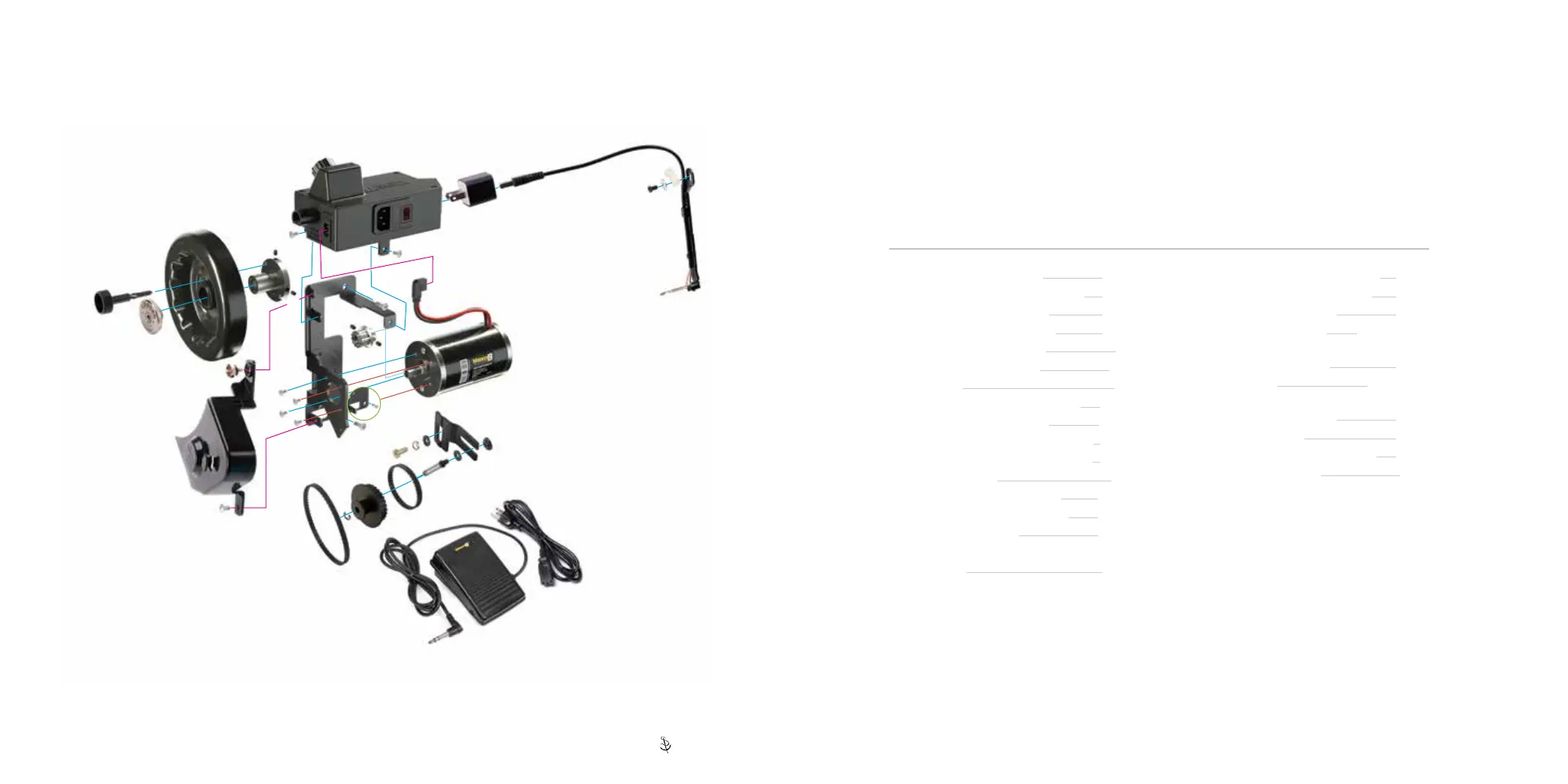

GROUP 6: Electric Power & Dynamic Transmission
KEY NAME PART # KEY NAME PART #
1 Posi-Pin
®
Safety Shear 121973
2 Posi-Pin Nut - Reverse Thread 100536
3 Posi-Pin Wheel Bushing 100537
4 WorkerB
®
Balance Wheel 122877
5 Cogged Timing Belt 13" 5265
6 Cogged Timing Belt 8" 56539
7 E5 Ring D116
8 Speed Reduction Pulley Shaft W061-1
9 Speed Reduction Pulley W061-A
10 Speed Reduction Pulley Washer W061-6
11 Speed Reduction Pulley Set Nut W061-2
12 Pulley Bracket W059
13 Motor Bracket Set Washer LT-2M-4
14 Motor Bracket Lock Washer LT-2M-3
15 Motor Bracket Bolt LT-2M-2
16 Belt Cover With Hex Bolt
& Gasket 123315
17 Machine Screw M4 x 0�7 (8mm) 122894
18 Machine Screw 10-32 (12mm) 122895
19 WorkerB Motor 90VDC 122808
20 WorkerB Control Box 122680 (110V)
122813 (100-230V)
21 WorkerB Foot Control 122809
22 Power Cord 122887 (US)
122888 (EU)
23 Set Screw 10-32 x 3/8" 713100
24 WorkerB Bracket 122810
25 12 Tooth Cogged Motor Pulley 122886
26 Integrated LED Light 123701
18
65 | Sailrite�com Ultrafeed
®
LS Guidebook | 66
