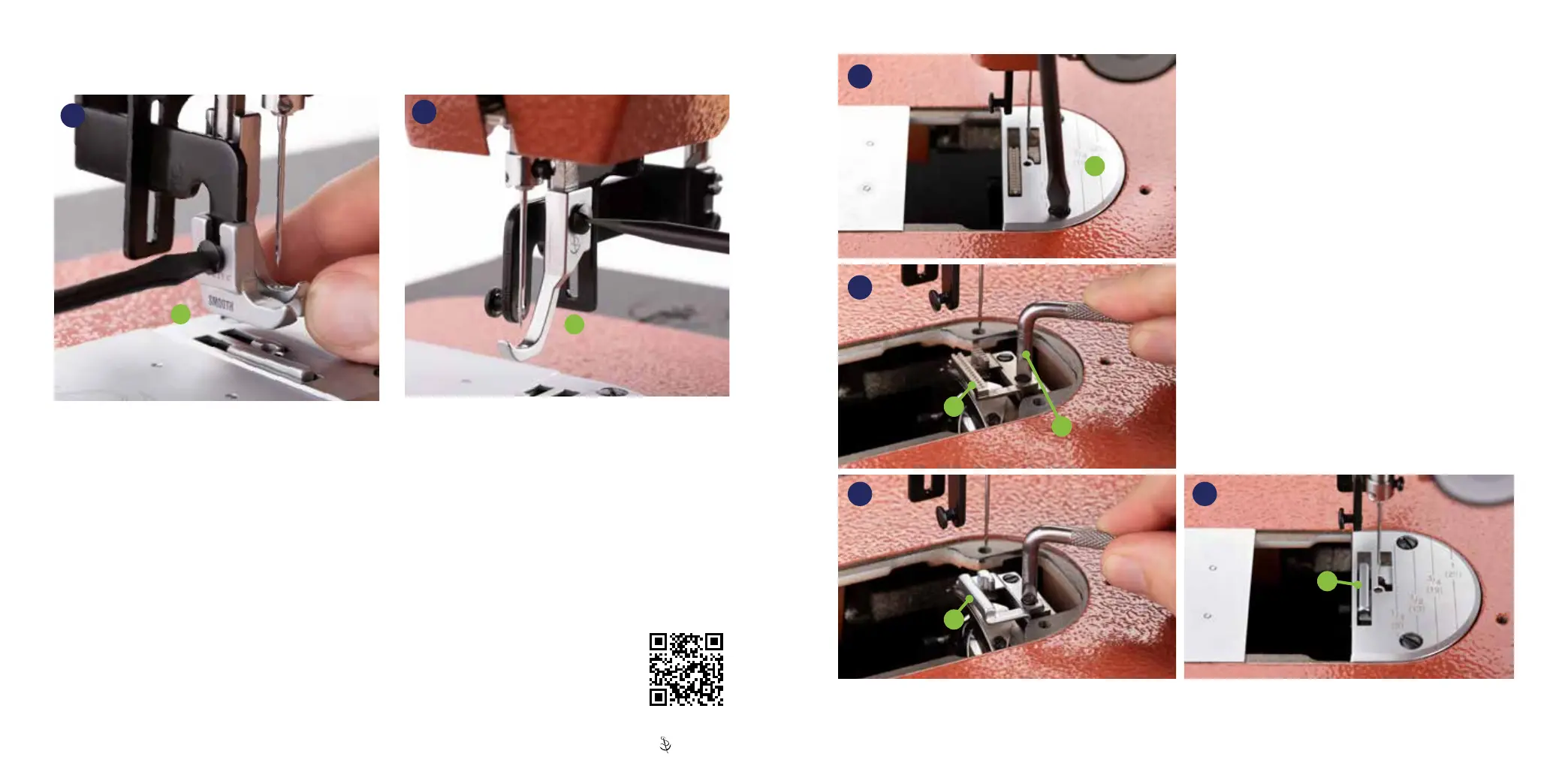

How to Install Center & Outside Feet
1� With the foot raised, rotate the balance wheel
so that the outside foot is at its highest position�
Loosen the screw enough to slip off the foot
(A); screw does not need to be removed.
2� Rotate the balance wheel so the needle is
at its highest position and then remove the
center foot (B)� Screw must be removed�
NOTE: If installing a feed dog, jump to “How to
Install a Feed Dog” before proceeding to step 3�
3� With the needle at its highest position, install
the center foot (B) and tighten its screw�
4� To install the outside foot, rotate the balance
wheel so the outside foot bracket is at its highest
position� Slide the outside foot underneath the
screw and push it up so it rests rmly against the
bracket and loosely tighten the screw (A)�
5� Lower the foot and rotate the balance
wheel until the needle is in its highest
position� Firmly tighten the screw (A)�
How to Install a Feed Dog
1� Unscrew and remove the needle plate (C) from the
machine bed� This will expose the feed dog (D)�
2� Unscrew (E) and remove the old feed dog from the
machine bed�
3� Install the new feed dog (F) and loosely tighten the
screws� The feed dog should be able to slightly move
side to side�
4� Lay the needle plate (C) over the feed dog (F)�
Check to see whether the feed dog is straight in
the needle plate slots (G)� Adjust as needed, then
remove the needle plate and nish tightening the
feed dog screws�
5� Reinstall the needle plate and screws into the
machine bed�
NOTE: Follow steps 3-5 of “How to Install Center &
Outside Feet” to reinstall the center and outside foot�
