Installation

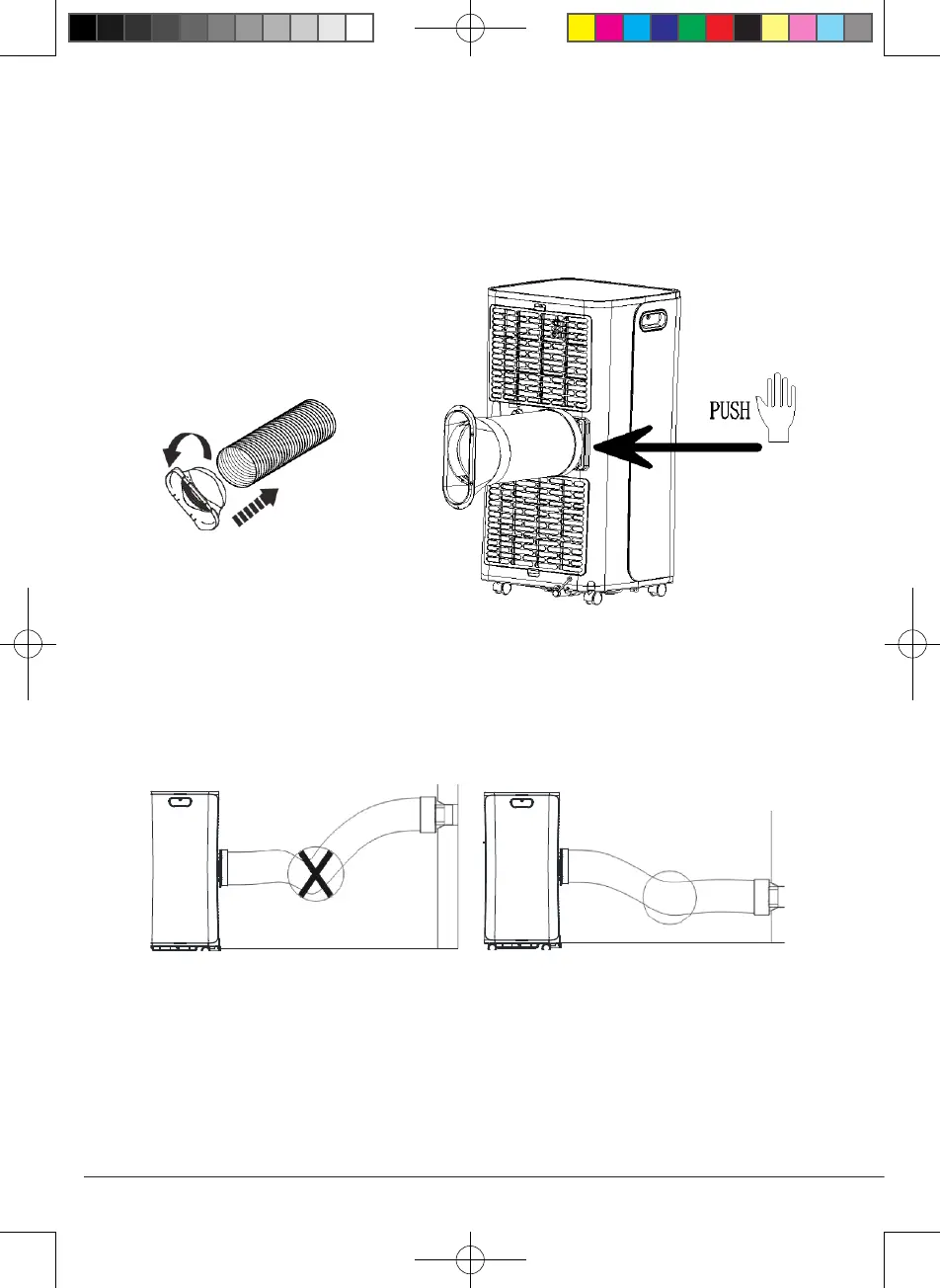

Spin adapter into exhaust pipe first, then spin the exhaust pipe into exhaust connector
(counter-clockwise) (fig.2)
Put adapter into window sealplate, adjust window open width in order sealplate match win-
dow well, and the length of sealplate is adjustable.
(fig.2)
Installation Errors
Free access of exhaust pipe is important, installation errors will bring bad influence of ma-
chine.
Avoid exhaust-pipe with sharp bend. (fig.3)
Make sure air in exhaust pipe can run smoothly . (fig.4)
(fig.3) (fig.4)
