3-002
INSPECTION AND MAINTENANCE

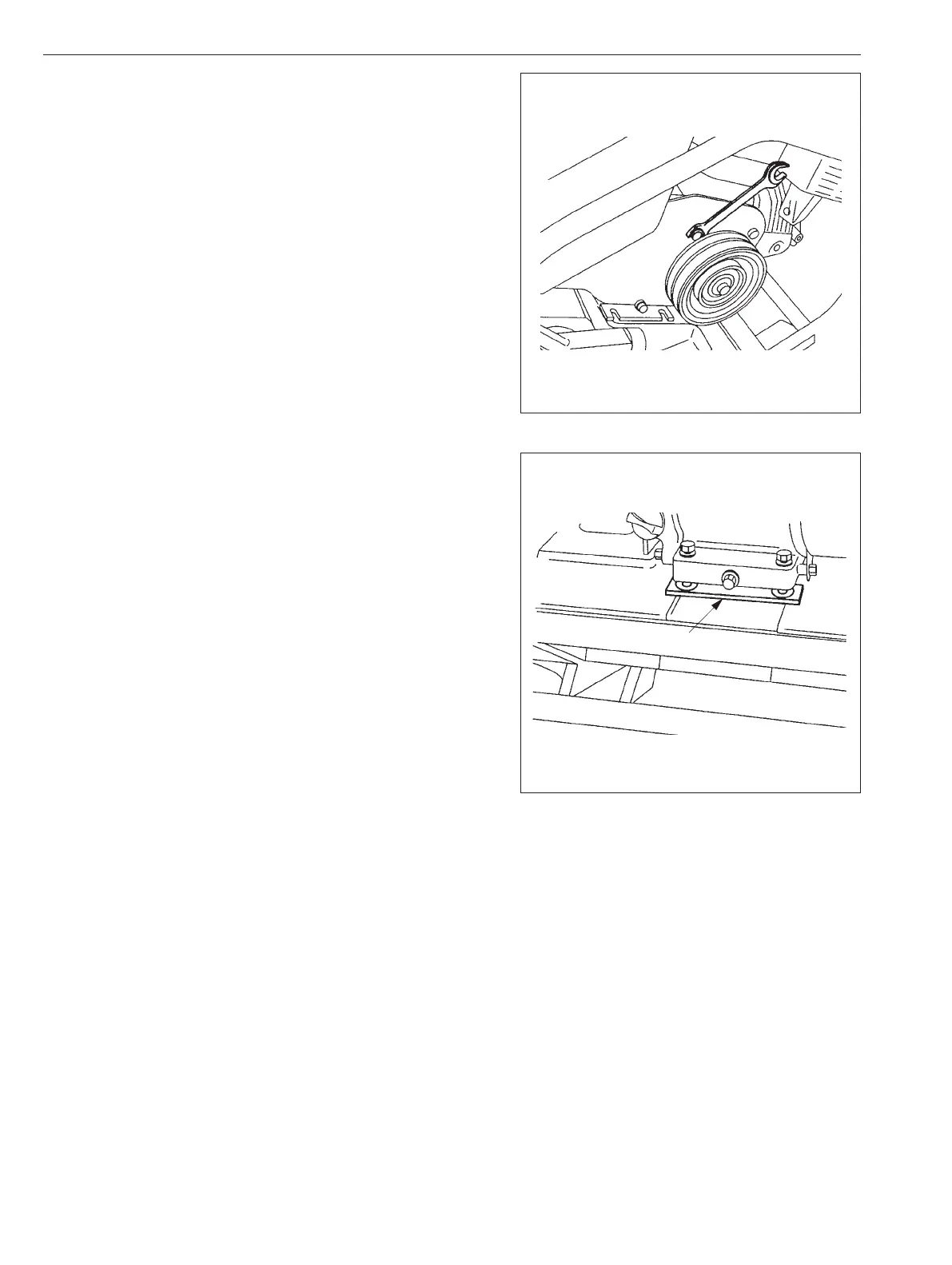

1) Remove the front cover (standard type), water tank (water
sprinkler system type.)
2) Loosen 4 bolts which secure the engine.
3) Remove the belt cover.
4) Remove the V-belt.
5) Remove the plates on the inside belt cover.
6) Loosen 4 bolts a little bit which secure the inside belt cover.
7) Insert the plates to the bottom of the engine.
8) Re-tighten 4 bolts of two places.
9) Set the V-belts.
PC800-03003
Plate
PC800-03003
Plate
To Next Page
