Warning:
Installation
Please pay attention to the following:
• Please check the equipment with your check list after receiving the unit.
• Please keep the unit horizontal and balanced before hanging up the unit.
• Please ensure proper equipment (e.g., fork lift, hoist, sling, etc.) is used when handling the unit.
• Please remove all packaging material after installation.
If there are any problems or the unit is damaged, please contact authorized dealer.
1. Indoor Unit Installation
Carefully plan the installation location with the following considerations:
• Easy distribution of air ducts.
• Space for connection of refrigerant pipes, wirings and water pipes.
• Ceiling/structure is strong enough to support the unit.
• For noise consideration, always install unit away from air conditioned area.

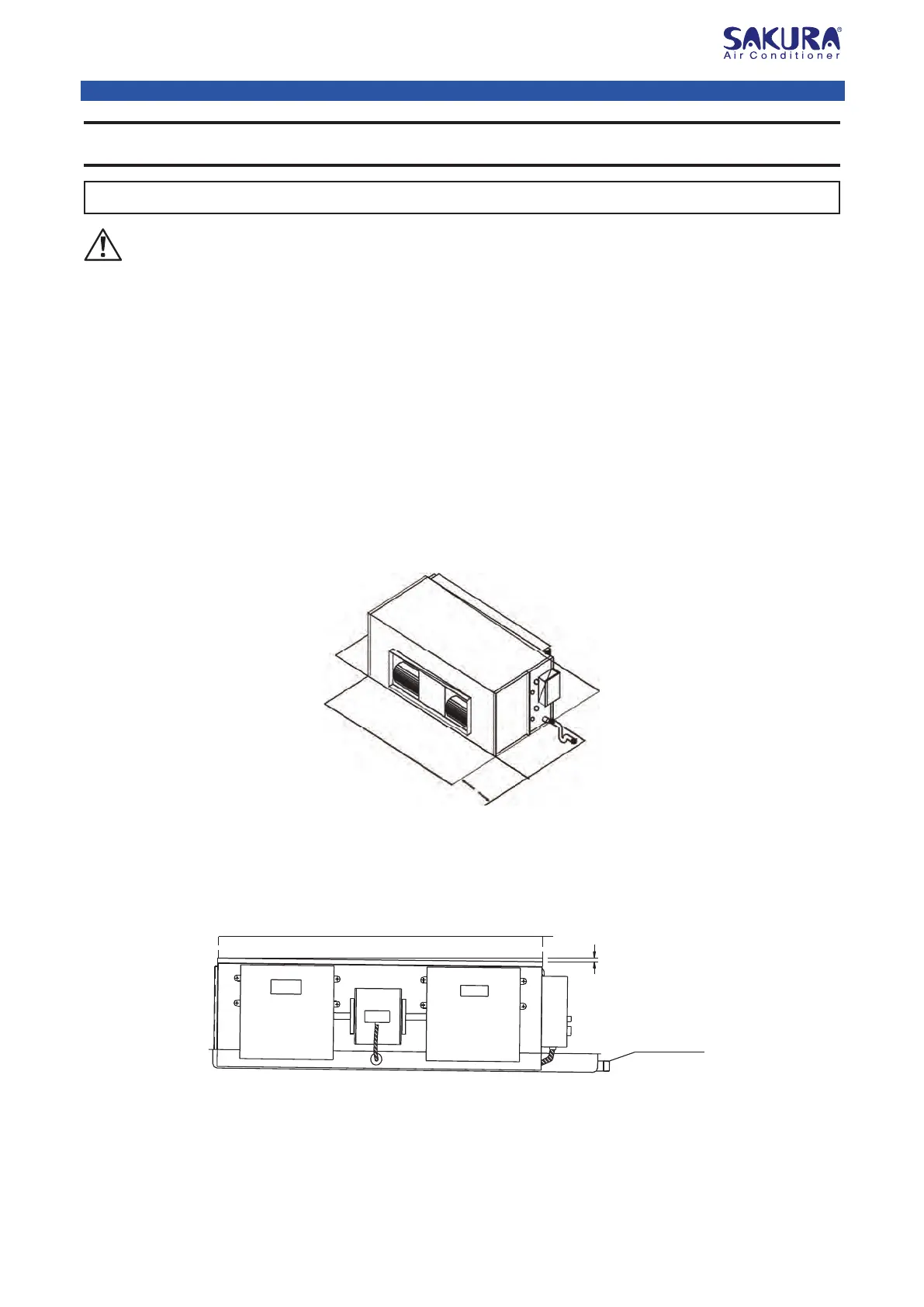

• Always allow sufcient space for servicing and maintenance as shown in the following diagram:
• Use the hanging rods to hang the unit through the holes provided. Strength of hanging rods must be
able to support the total weight of the unit.
• During operation of the unit, there will be plenty of condensate water that needs to be discharged. In order to
prevent overow of condensate water, the water must be drained through condensate water pipe.
Please ensure a gradient is maintained as shown in the following diagram.
Unit should be installed by qualied technicians. Installation should adhere to local code and regulations.
• To reduce noise transmission through hanging rod, it is recommended to install rubber dampers or isolators.
• Mufer can be used to reduce noise transmission through air duct if the unit needs to be installed near
air conditioned area.
Minimum 800mm
Condensate
0-10mm
water pipe
Sakura Air-cooled Split Ducted Air Conditioner
