Sakura SRT-30RA - Control System & Electrical Wiring; Function and Specification; Major component

Page 5 of 15
Control System & Electrical Wiring
Function and Specification
1. Major component
-.

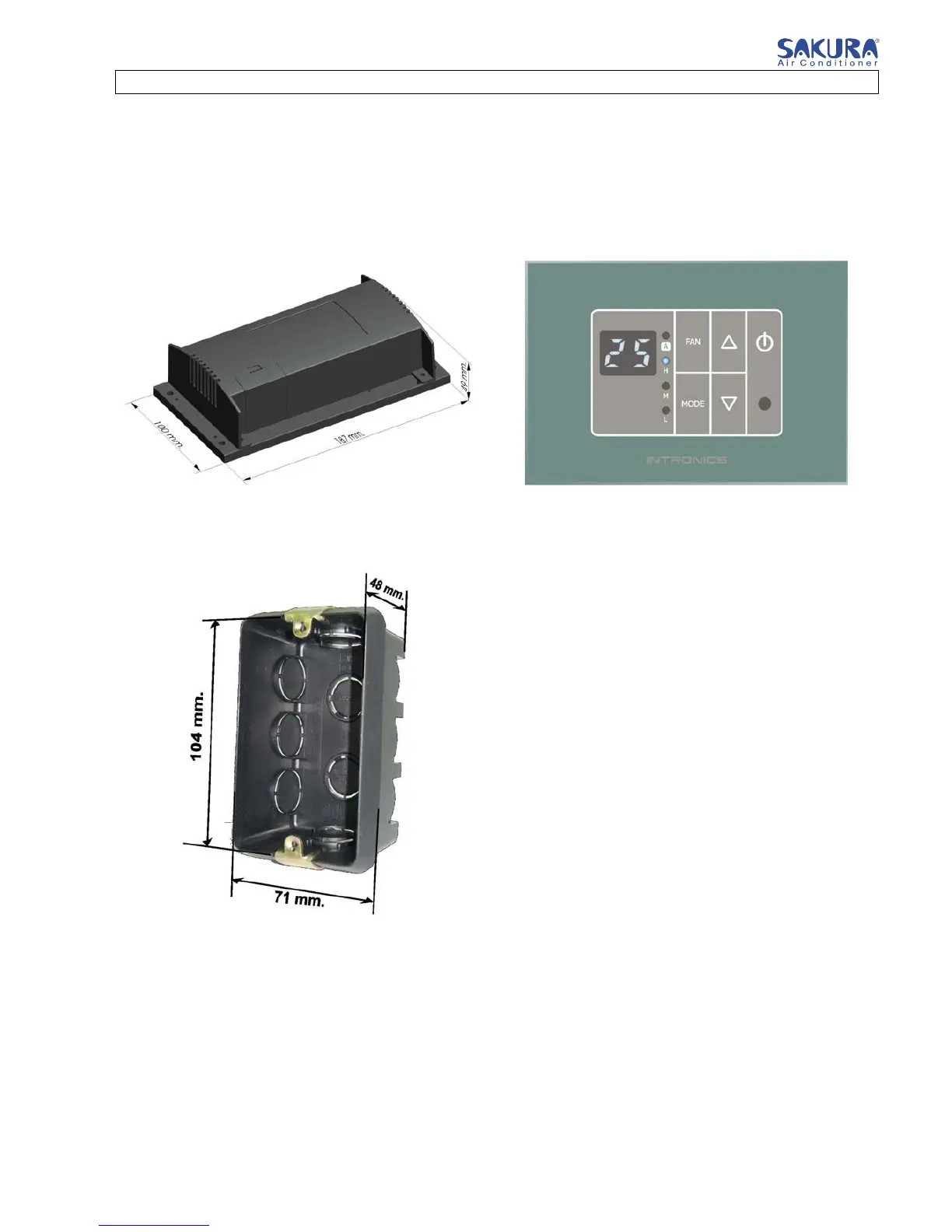

Main unit
-.
Display unit
-.
Display cable 2 cores, length 4 metres between Main unit and Display unit
-.
Flush-mounted box
Main Unit Display Unit
Flush-mounted box
