Salda Smarty 3X V 1.1 User Manual

9
Smarty 2X/3X V
www.salda.lt

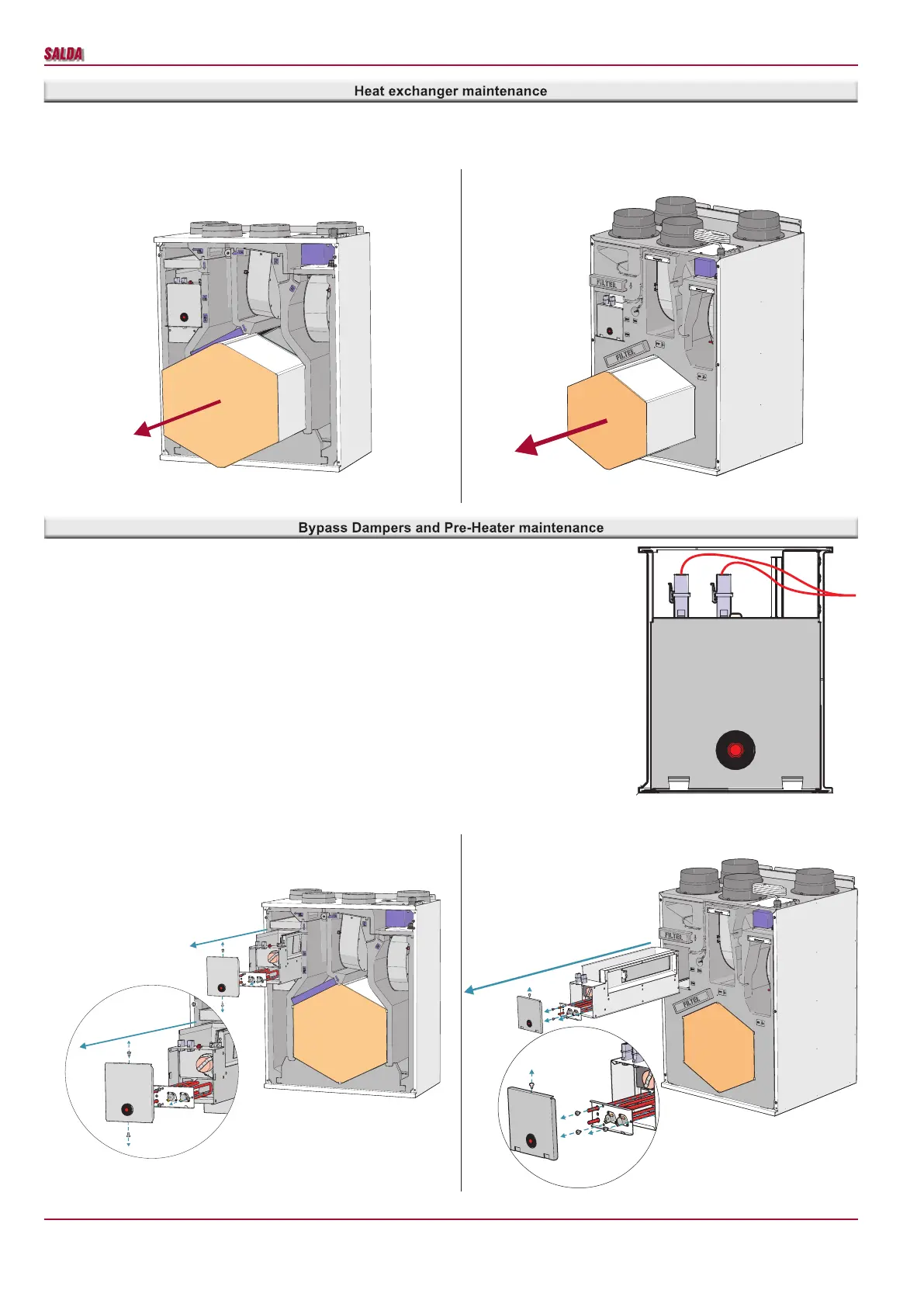

• Proceed to maintenance and repair after any rotation in the fan stopped.
• Clean the heat exchanger once a year.
• Firstly take out heat exchanger cassette carefully. Submerge it into a bath and wash with warm soapy water (do not use soda). Then rinse it with
weak hot water stream (too strong stream can fold the plates). Place back the heat exchanger only when it is completely dry.
Smarty 2X V Smarty 3X V
Smarty 2X V Smarty 3X V
Bypass damper and pre-heater are mounted on one block. The pre-heater shall be disconnected by
removing X29 connector. The bypass damper shall be disconnected by removing X25 .
X29
X25
