Connections
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
R/L in: Connect them to the audio output terminal of DVD.(shared with YPbPr)
VIDEO: Connect it to video output terminal of DVD.
POWER: Connect the power cord with DC 12V to this input.
YPbPr: Connect them to the YPbPr video output terminal of DVD.
HDMI: Connect it to the HDMI of DVD or other equipment.
VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
SCART: Connect them to the SCART video output terminal of DVD.
Connect it to the audio output terminal of PC.PC Audio:
Headphone out: Connect it to your headphone or other audio equipment.
USB: USB jack.
Coax: Digital coaxial output.

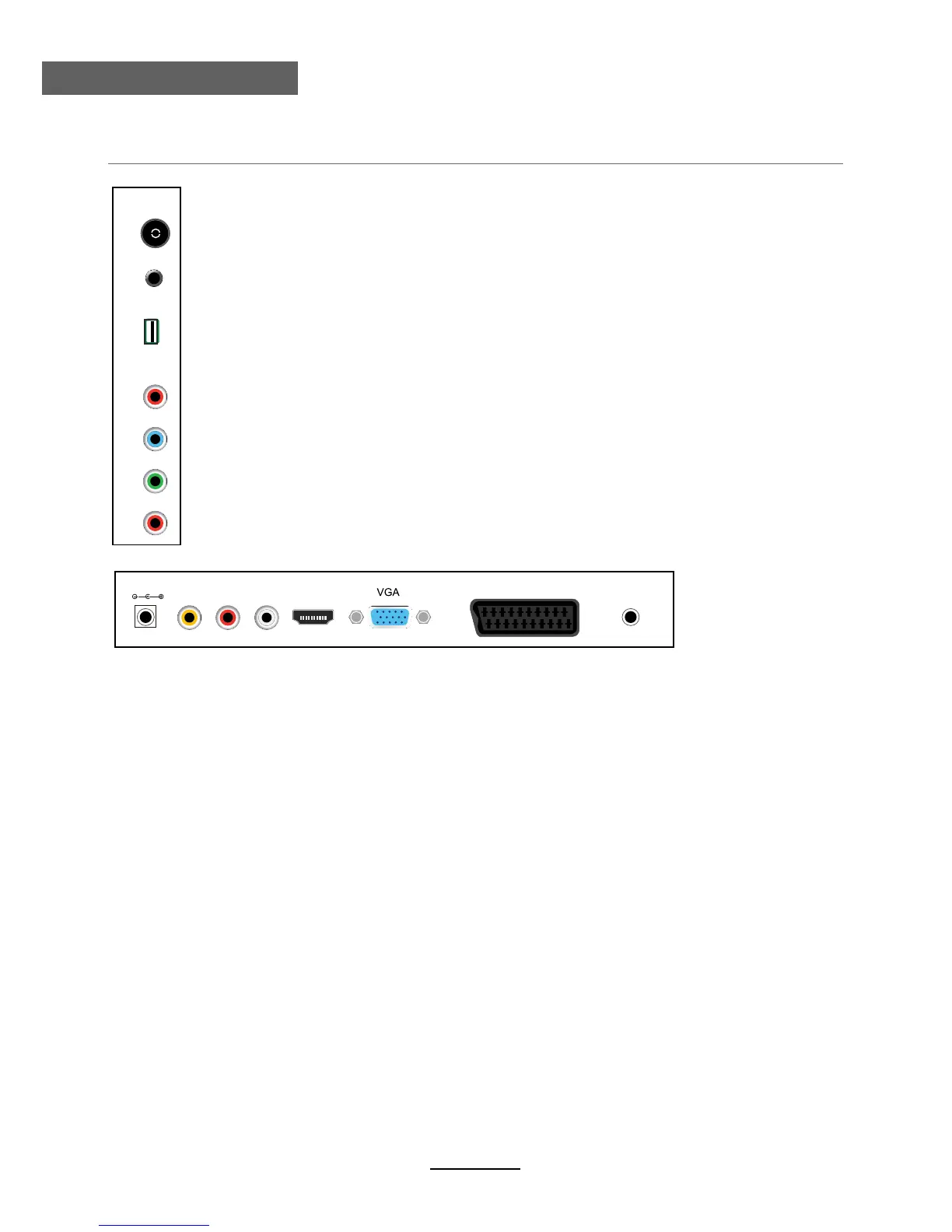

SCART
HDMI
VIDEO R L
POWER
COAX Y PB PR USB Earphone RF
PC Audio
