Salto CU5000 - Relay 2 DIP Switch Configuration; DIP Switch Functionality Mapping

2/4
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials.
P-200552 - -ED.04/05/2010
CONTROL UNIT - UNIDAD DE CONTROL
CU5000
CU50EN/SVN
RELAY 2 FUNCTION - FUNCION DEL RELE 2

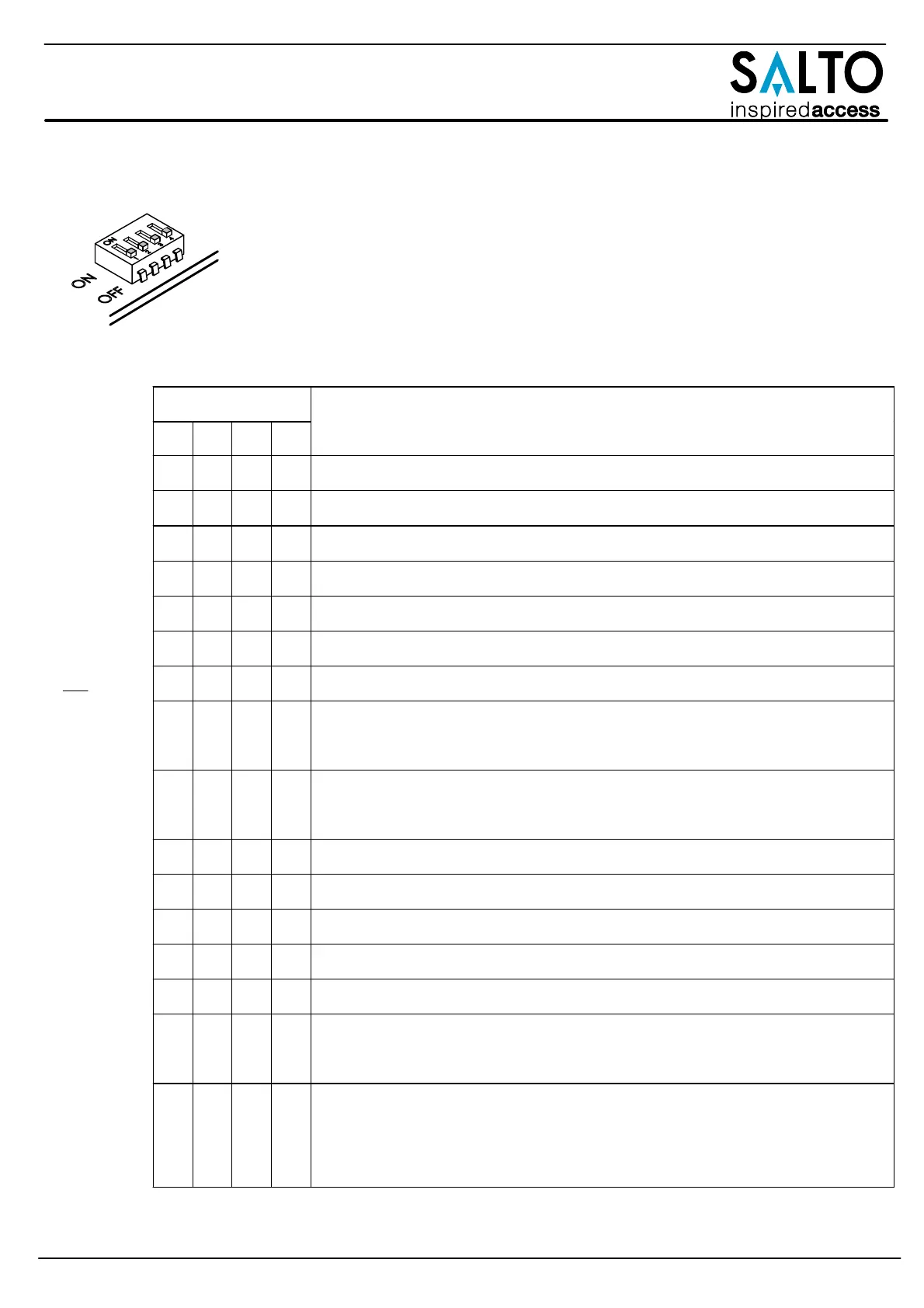

DIP SWITCHES CONFIGURATION
CONFIGURACION DIP SWITCHES
The configuration of the dip switch controls the operation of the RELAY 2:
La configuración del dip switch controla la función del RELE 2:
DIP SW. CONFIG.
ON=1, OFF=0
RELAY2 OPERATION
FUNCIONAMIENTO DEL RELE 2
1 2 3 4
0 0 0 0
S
ame as RELAY 1.
Igual que el RELE 1.
0 0 0 1
S
ame as OUTPUT 1.
Igual que la SALIDA 1.
0 0 1 0
One pulse when card is read.
Un pulso al leer una tarjeta.
0 0 1 1
One pulse when card is rejected.
Un pulso al rechazar una tarjeta.
0 1 0 0
‘Intrusion’ and ‘Tamper’ alarm.
Alarma en caso de intrusión o apertura caja.
0 1 0 1
‘Door Left Open’ warning. ‘Intrusion’ and ‘Tamper’ alarm.
Aviso Puerta abierta y alarma intrusión o apertura caja.
0 1 1 0
S
ame as DOOR input (door opened
→
RELAY2 activated).
Igual que entrada DOOR (puerta abierta → RELE 2 activado).
0 1 1 1
RELAY 1 activated by READER 1 and EXIT input.
RELAY 2 activated by READER 2 and DOOR input.(**)
RELE 1 activado desde el LECTOR 1 o entrada EXIT.
RELE 2 activado desde el LECTOR 2 o entrada DOOR.(**)
1 0 0 0
‘Door Left Open’ warning. ‘Intrusion’ and ‘Tamper’ alarm. One pulse when card is
rejected.
Aviso Puerta abierta y alarma intrusión o apertura caja. Un pulso al rechazar una
tarjeta.
1 0 0 1
One pulse when a card has not been updated completely.
Un pulso al detectar actualización incompleta de llave.
1 0 1 0
S
ame as RELAY 1.
Igual que el RELE 1.
1 0 1 1
S
ame as RELAY1.
Igual que el RELE 1.
1 1 0 0
S
ame as RELAY 1.
Igual que el RELE 1.
1 1 0 1
S
ame as RELAY 1.
Igual que el RELE 1.
1 1 1 0
CU is working as updater. RELAY 1 is deactivated and RELAY 2 is activated briefly
when a card has not been updated completely.
CU Funcionando como actualizador. RELE 1 desactivado y un pulso en el RELE 2 al
detectar actualización incompleta de la llave.
1 1 1 1
RELAY 1 and RELAY 2 alternatively activated.
RELAY 1 activated by EXIT input (open roller blind).
RELAY 2 activated by DOOR input (close roller blind).(**)
RELE 1 y RELE 2 activados alternativamente.
RELE 1 activado desde entrada EXIT (abre persiana).
RELE 2 activado desde entrada DOOR (cierra persiana).(**)
CU5000 firmware version 1.70 or later. CU5000 Firmware versión 1.70 o posterior.
(**)- This configuration is only available on standard opening mode.
(**)-Estas configuraciones solo son operativas en el modo estándar de apertura.
