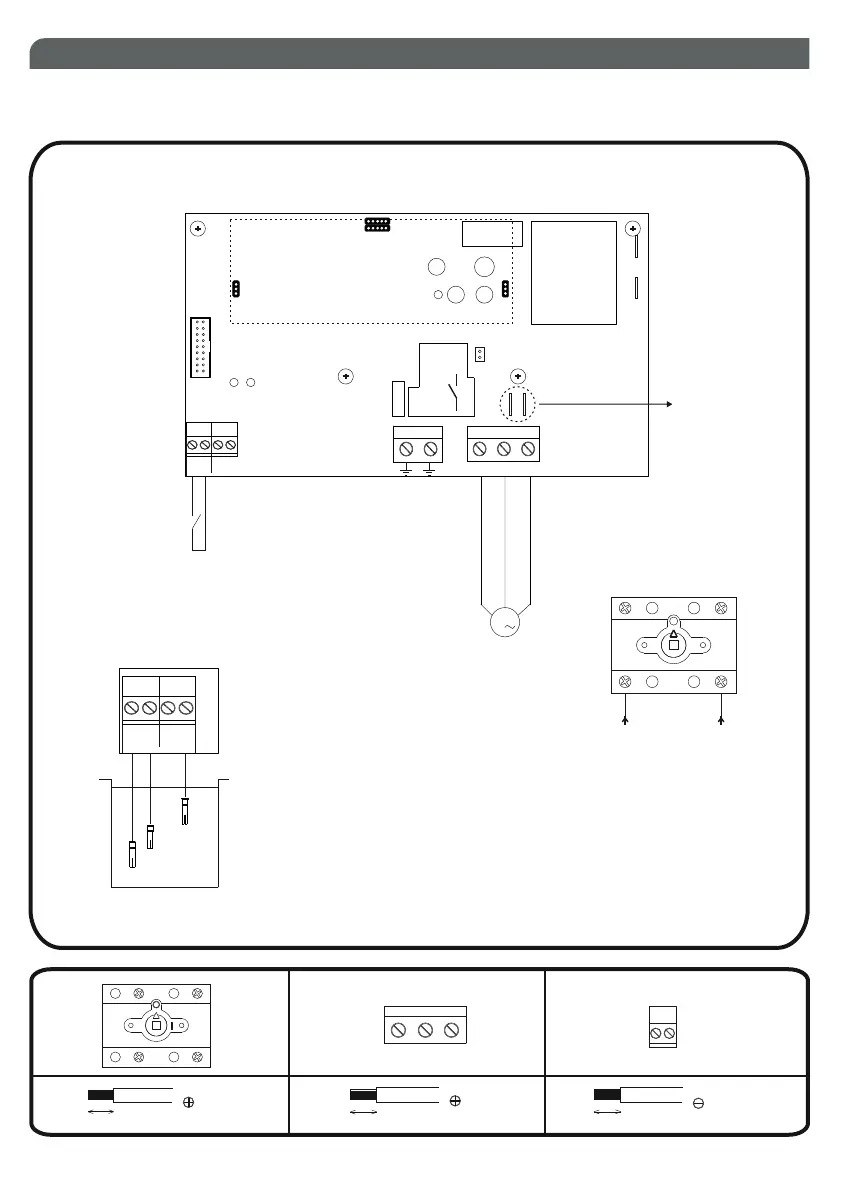

SALUPO DRY CONTROL PLUS - Wiring Diagrams; Wiring Diagram SA604.xx

POWER SUPPLY
230 Vac 50/60 Hz
1 2
G.MIN
COM
MIN
COM
MAX
G.MAX1
U V
AVV.
MOTOR 1
3 4
EXPANSION BOARD
Max 10 mm²
(M4)
0,8Nm
10 mm
Max 4 mm²
(M3)
0,5Nm
9,8 mm
Max 2.5 mm²
(M3)
0,5Nm
8,3 mm
MOTOR
M
1
COMMON
RUNNING
START-UP
4. WIRING DIAGRAMS
4.1 Wiring diagram SA604.xx
EXTERNAL COMMAND 1 INPUT
1 2
G.MIN
COM
MIN
COM
MAX
G.MAX1
3 4
COM
MIN
MAX
EXTERNAL COMMAND 2 INPUTS
FILLING FUNCTION
L1 N
FLOAT SWITCH OR PRESSURE SWITCH
20
CAPACITOR
