SALUPO DRY CONTROL PLUS - Advanced Programming - Current, Delay, and Button Modes

MINIMUM CURRENT
AUT. 9.9 A
IT IS USED TO SET THE
OVERLOAD MAXIMUM CURRENT
OF THE MOTOR
RANGE 0.5 ÷ 90.0A (SA607.xx)
RANGE 1 ÷ 8s
AUT. INDICATES THAT THE VALUE
OF THE MAXIMUM CURRENT HAS
BEEN SET WITH THE AUTO-LEARNING
MAN. INDICATES THAT THE
MAXIMUM CURRENT VALUE
HAS BEEN SET MANUALLY
RANGE 0.5 ÷ 18.0A (SA604.xx)

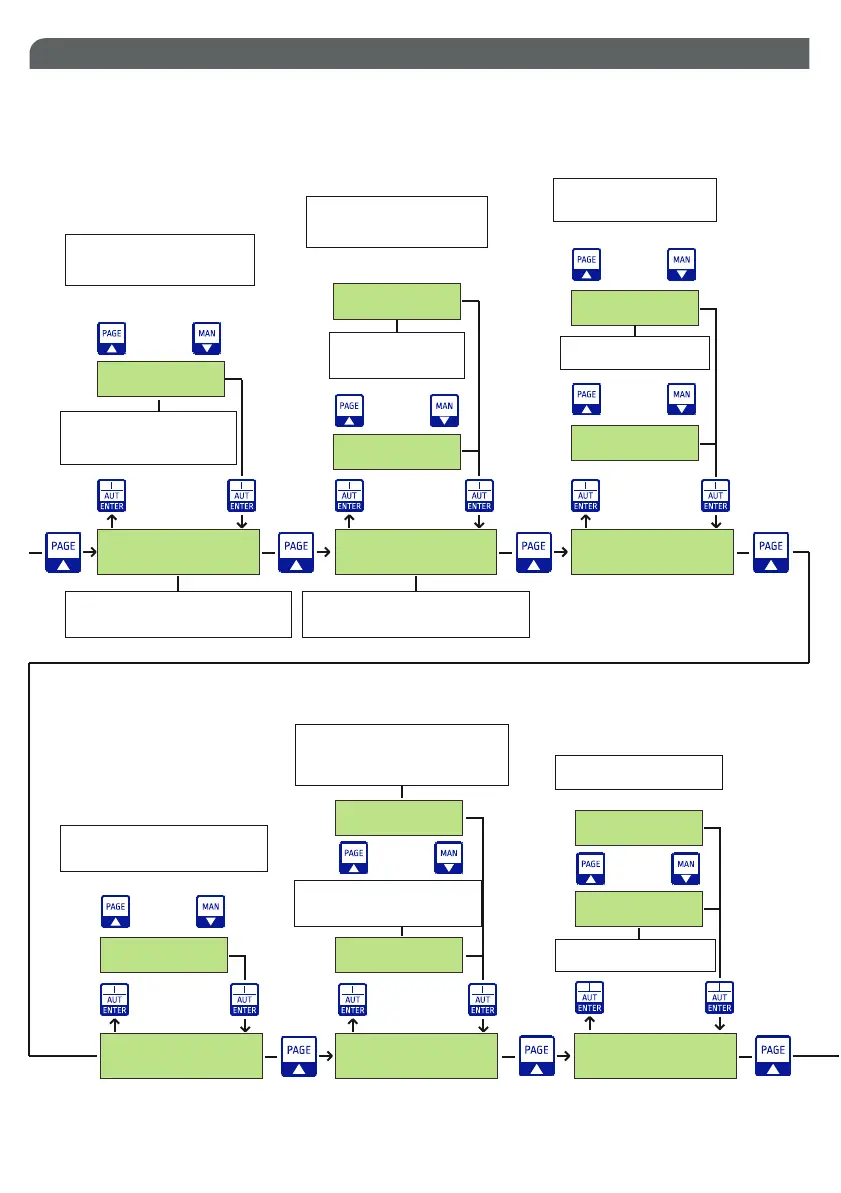

5. PROGRAMMING
5.2 Advanced programming
MAXIMUM CURRENT
AUT. 16.5 A
MAXIMUM CURRENT
MAN. 16.5 A
CURRENT DELAY
4 s
CURRENT DELAY
4 s
MANUAL BUTTON
UNSTABLE
MANUAL BUTTON
UNSTABLE
MANUAL BUTTON
STABLE
IT IS USED TO SET THE DELAY
OF THE INTERVENTION FOR THE
PROTECTION OF THE CURRENT
UNSTABLE STARTS THE
MOTOR ONLY WHEN THE
MAN BUTTON IS PRESSED
STABLE STARTS THE MOTOR WITH
A PULSE ON THE MAN BUTTON;
STOPS THE MOTOR WITH A PULSE
ON THE RESET BUTTON
RANGE 1 ÷ 30min
SUPPLY MAINS
WAITING OFF
SUPPLY MAINS
WAITING 1 min
SUPPLY MAINS
WAITING OFF
OFF EXCLUDES THE
MAINS SUPPLY WAITING
IT IS USED TO SET THE
MAINS SUPPLY WAITING
24
IT IS USED TO SET THE
MINIMUM CURRENT
OF THE MOTOR
RANGE 0.5 ÷ 87.0A (SA607.xx)
RANGE 0.5 ÷ 15.0A (SA604.xx)
OFF EXCLUDES THE
CONTROL ON THE
MINIMUM CURRENT
MINIMUM CURRENT
AUT. 9.9 A
MINIMUM CURRENT
OFF
AUT. INDICATES THAT THE MINIMUM
CURRENT VALUE HAS BEEN SET
WITH THE AUTO-LEARNING
PHASES UNBALANCE
10 %
PHASES UNBALANCE
OFF
PHASES UNBALANCE
10 %
IT IS USED TO SET THE
CURRENTS UNBALANCED
ON THE PHASES
RANGE: OFF - 5% - 10% - 15%
OFF IT EXCLUDES
THE PHASES UNBALANCE
