4. Check that the sensor is horizontal, level it if necessary.
XI. INSTALLATION OF THE HUUM DOOR OPENING SENSOR
1. Put heat shrink tubing on the connection wire of the door opening sensor from harness "1" (2x
0.75 mm
2
), then solder it to the sensor wire "8" routed through the mounting hole of the box to the
door frame.
2. Tuck the wire into the mounting hole on the box.
NOTE: The wire should be tucked outside the box.
3. Put a shrink wrap on the sensor wire.

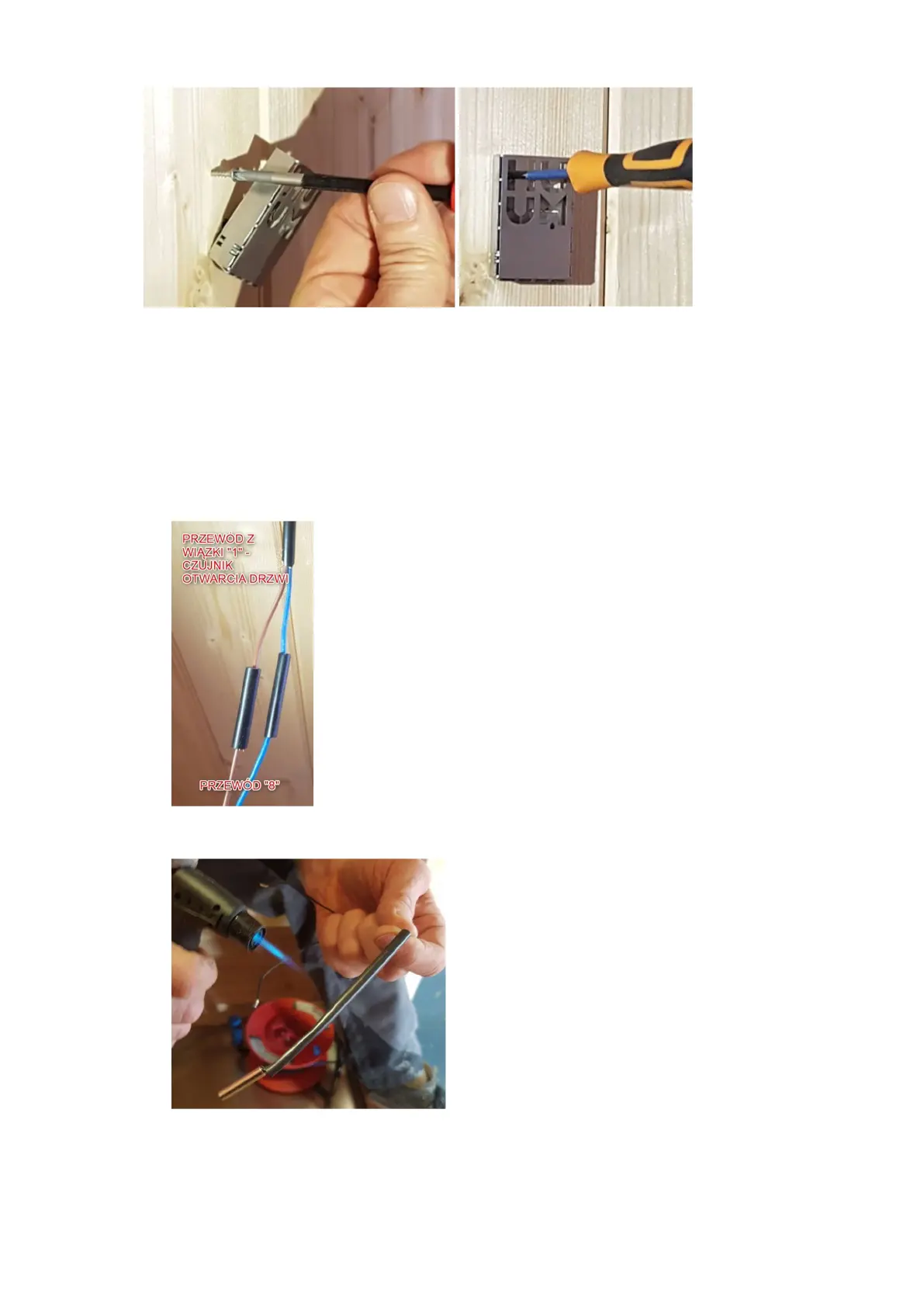

4. Connect the other end of the "8" wire to the supplied HUUM sensor by applying heat shrink
bands and soldering as shown in the photo below. This will allow the wire to pass through
the narrow opening.
