SUN_IS_ electrical_installation_v5.1_06092021
25

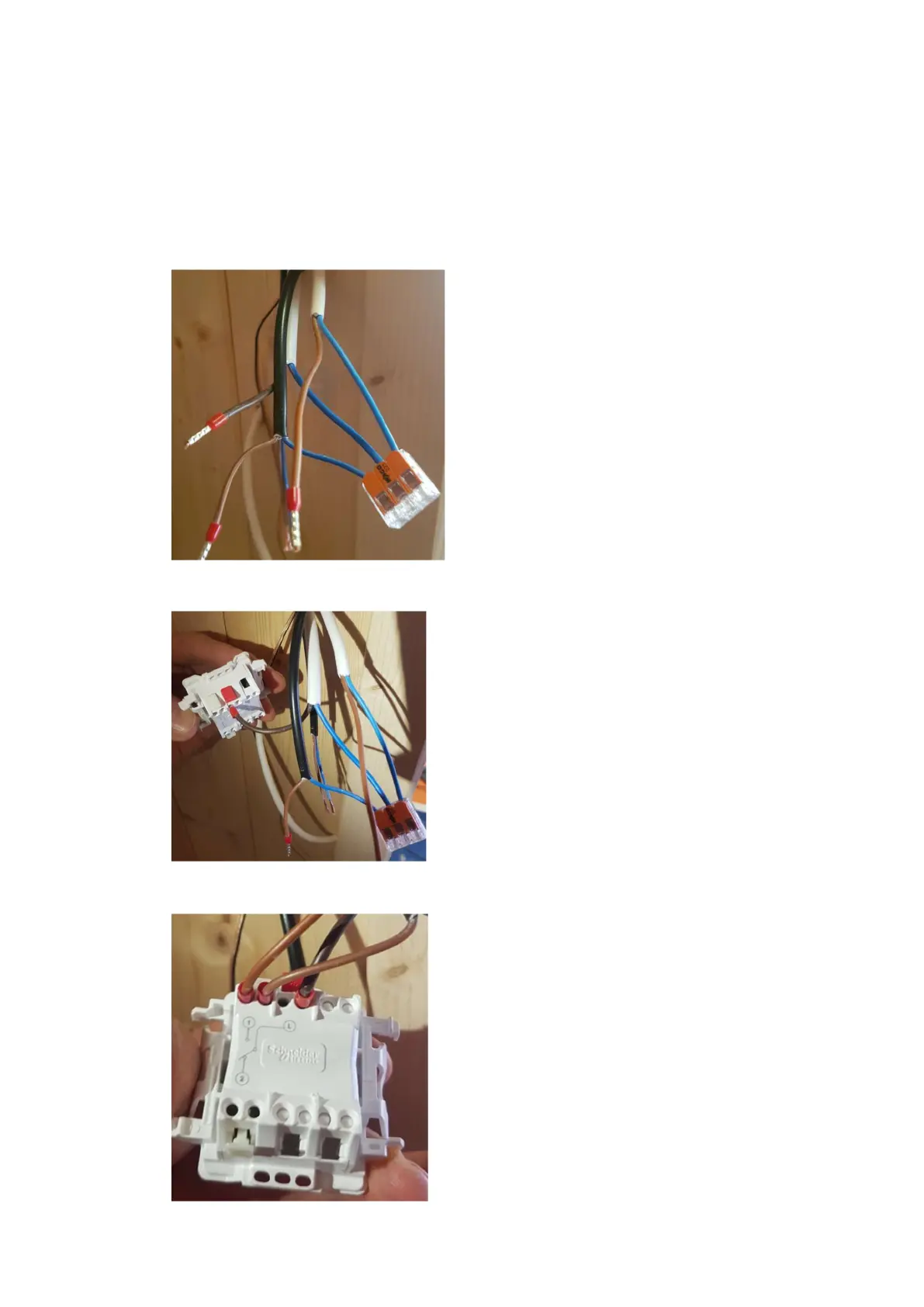

XIII. CONNECTION OF THE INSTALLATION IN THE BOX AND MOUNTING OF THE LED
LIGHT SWITCH
1. Attach the cable lugs to:
a) Power wire from harness "1" (2x 1.5 mm
2
)
b) LED wire left "4"
c) LED wire right "7"
2. Use WAGO connector "3" to connect the "-" wires.
3. Connect the phase from the power wire to the red terminal.
4. Connect the remaining wires to the white terminal.
