SUN_IS_ electrical_installation_v5.1_06092021
28

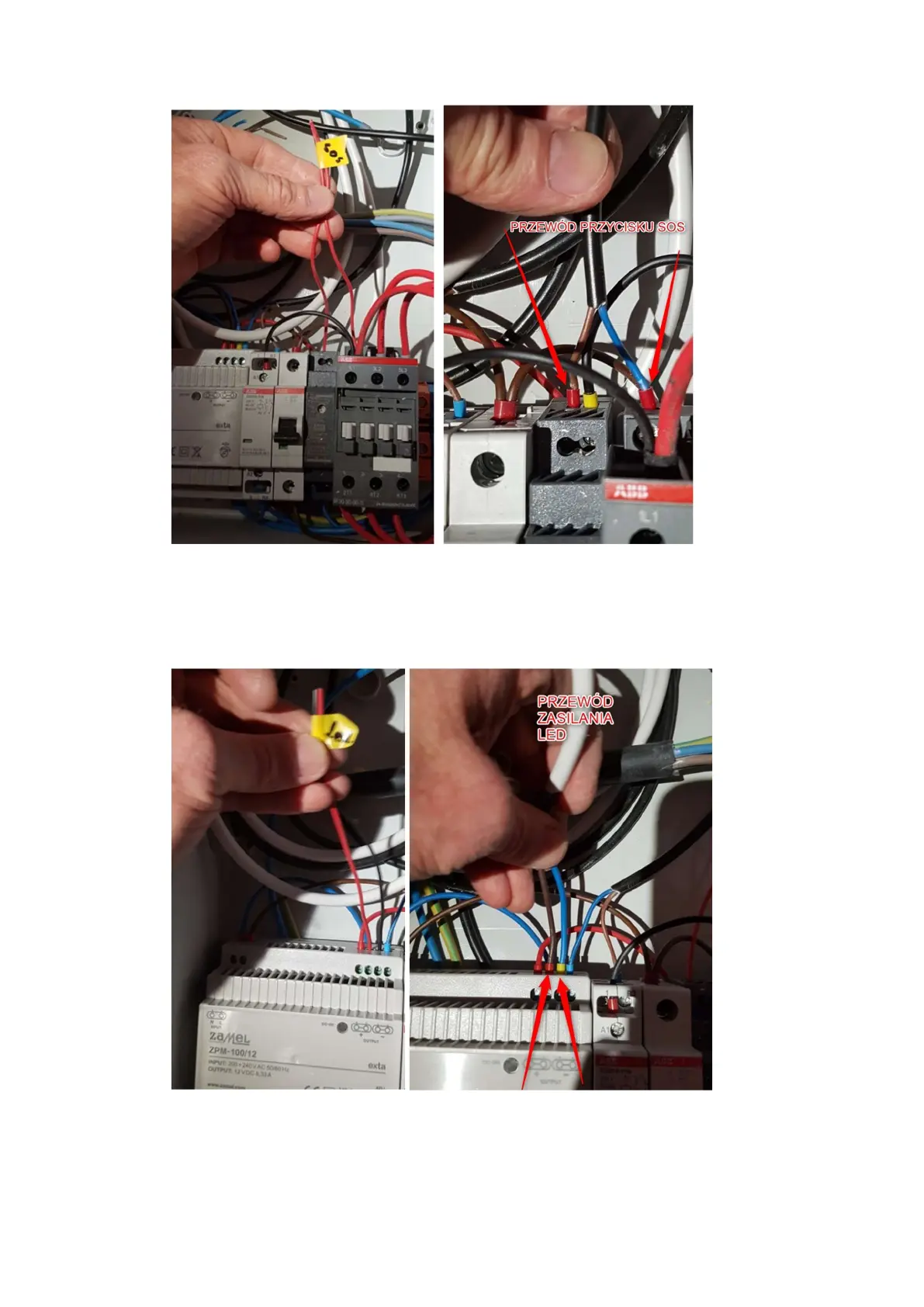

C. Connecting the power supply for the LED strips
1. Fit the 2x 1.5 mm
2
wires from harness "1" with cable lugs.
2. Find the wire marked "LED" in the box, and insert the wires in its place.
D. Preparation of the HUMM control unit and its connection to the installation
1. Remove the screws securing the cover of the control unit, and prepare only the components
shown in the photo for assembly. The rest is unnecessary.
