XIV. INSTALLATION IN A BOX
A. Connection of SOS siren installation
1. Fit cable lugs onto the wire.

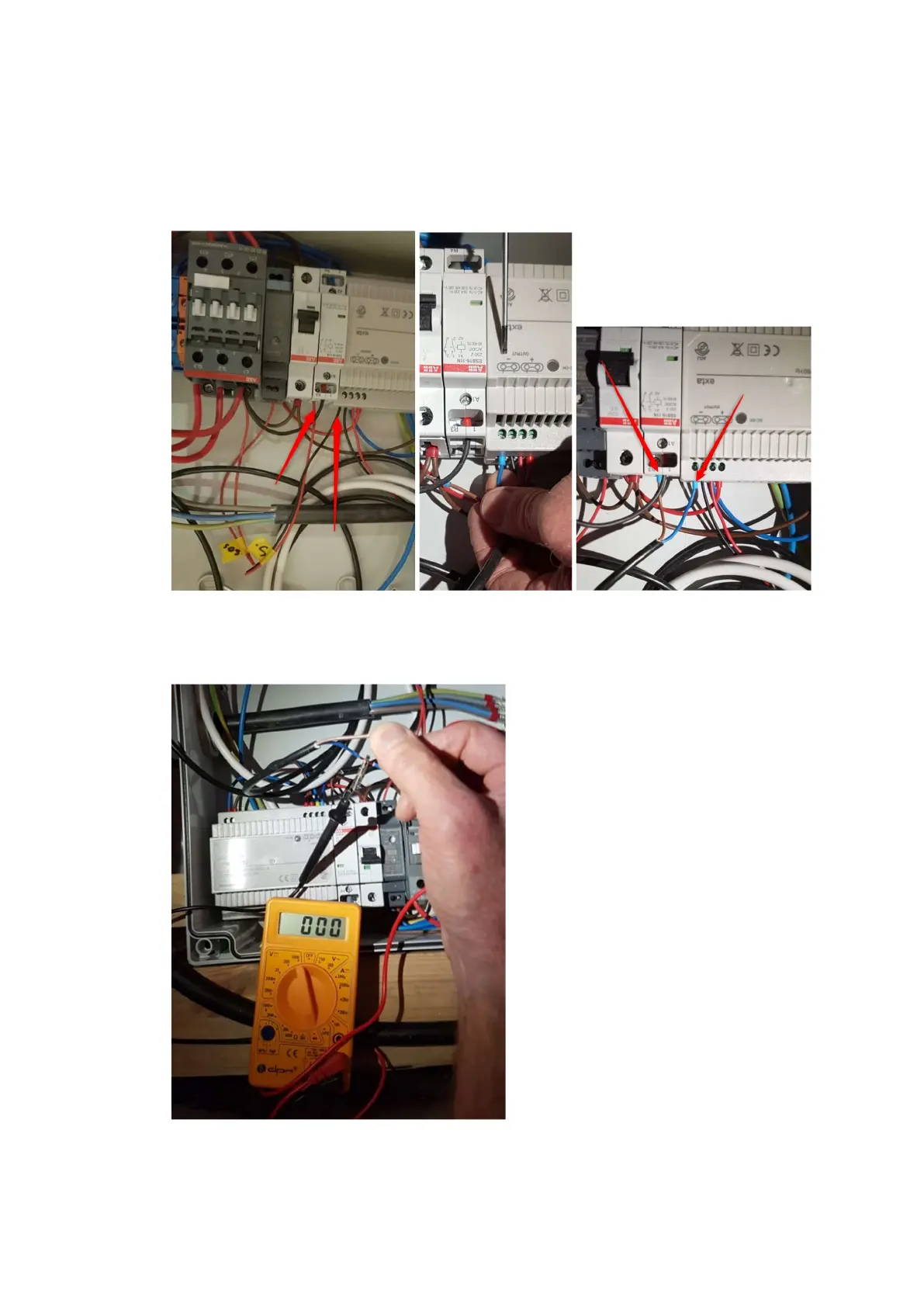

2. Find the wire marked "S" in the box, and insert the wires in its place according to the pictures
below.
B. Connection of SOS button installation
1. Identify the wire from harness "1" 2x 0.75 mm
2
to the SOS switch. To do this, switch on the
SOS switch and check with a multimeter that there is a transition on the wire.
2. Once you have identified the wire, fit the cable lugs.
3. Find the wire marked "SOS" in the box, and insert the wires in its place as shown in the
photos below.
