SUN_IS_ electrical_installation_v5.1_06092021
30

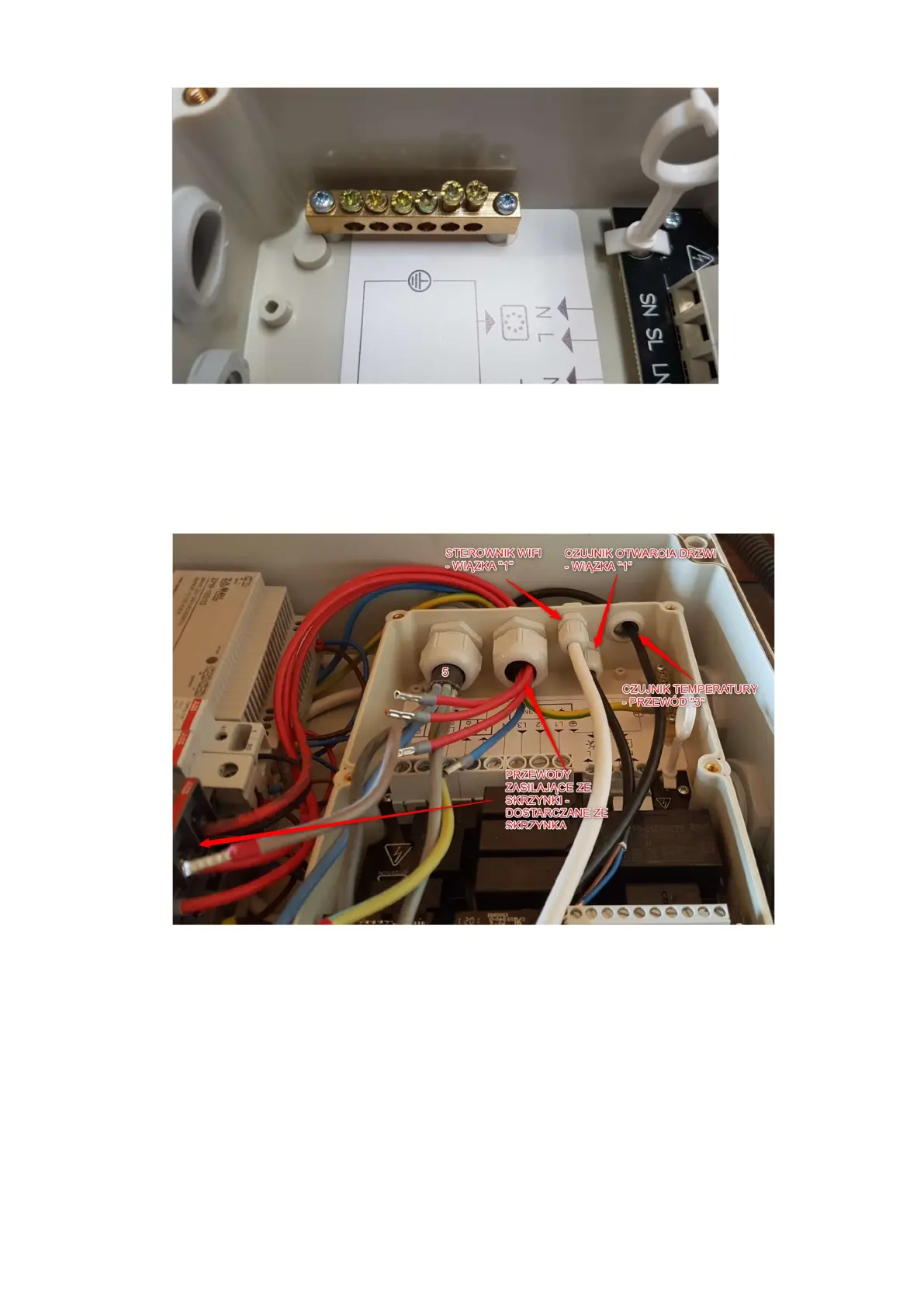

4. Feed the cables into the control unit through the glands in the following order:
a) Wire "5" to the furnace supply through the first large choke.
b) Wire from harness "1" to the door-opening sensor through the small gland at the bottom
c) Wire from harness "1" to the Wi-Fi controller via the small choke from above
d) Wire from harness "3" to temperature sensor through rubber gland
5. Attach the cable lugs to the wires.
NOTE: Place a tray under the area where the cable lugs and shear wires are inserted to
prevent copper shear debris from entering the control unit.
