System Overview - Options
Option 1 - Page 09
Option 2 - Page 10
Option 3 - Page 10

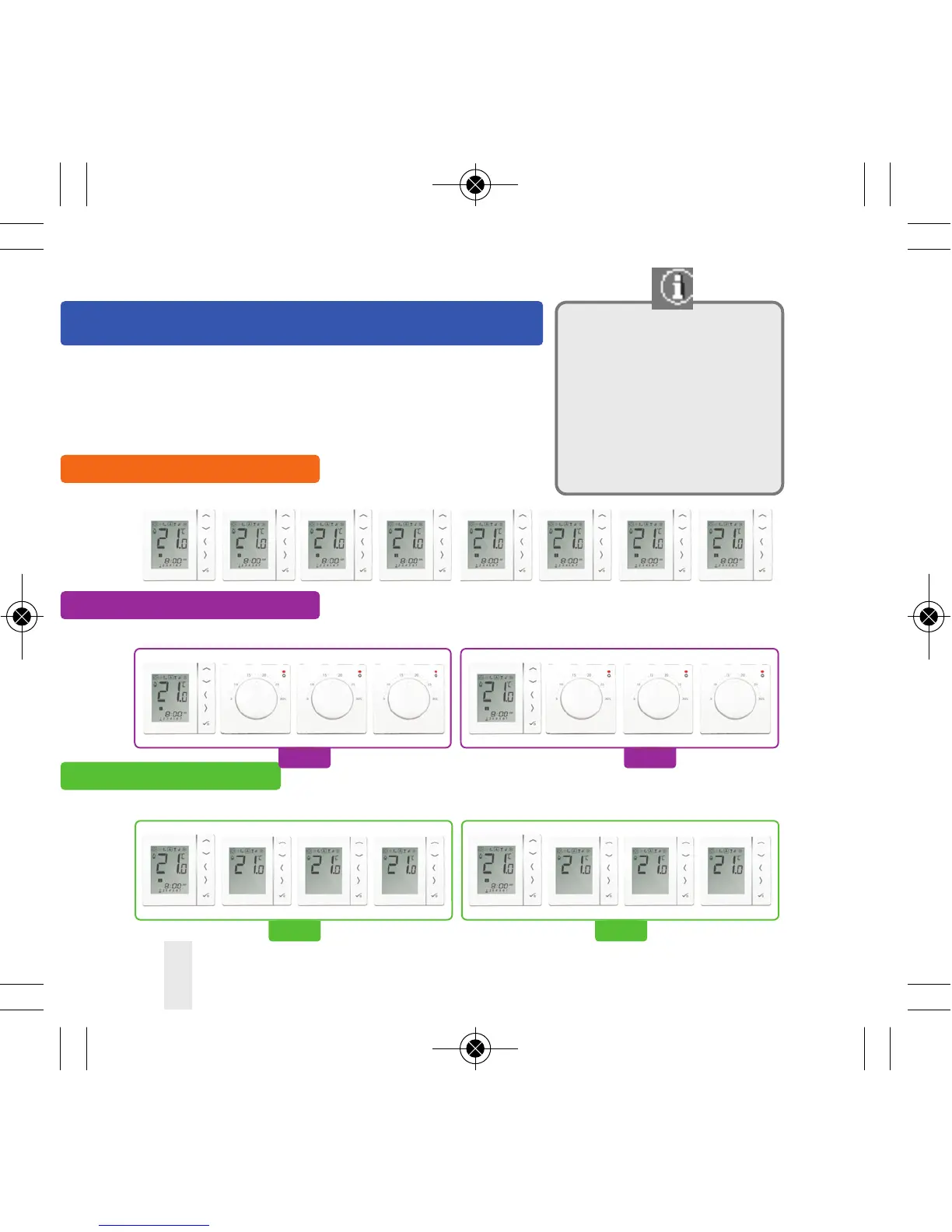

The systems below although not exhaustive show the main options. The
maximum number of groups per KL10 wiring centre is two. The group
selection communication cable must correspond to the group terminals
on the KL10 WC. Please refer to note 5 on the KL10 installation guide.
Group 1 Group 2
Group 1
Group 2
All Digital Variants can be
congured from VS10. Groups
must have a group control
thermostat. 1 or 2 Groups can be
used per wiring centre. HW Timer
can be stand alone or part of a
group. If using HW Timer as part
of a group it must be in group 1.
08 VS10W and VS10B Installer Manual
Option 2 - Unit is congured as a Group Control Thermostat used to control a group(s) of Dial Stat(s)
Option 3 - Unit is congured as a Group Control Thermostat used to control a group(s) of Digital Stat(s) congured as group thermostats.
Option 1 - Unit is congured as individual PRT.
