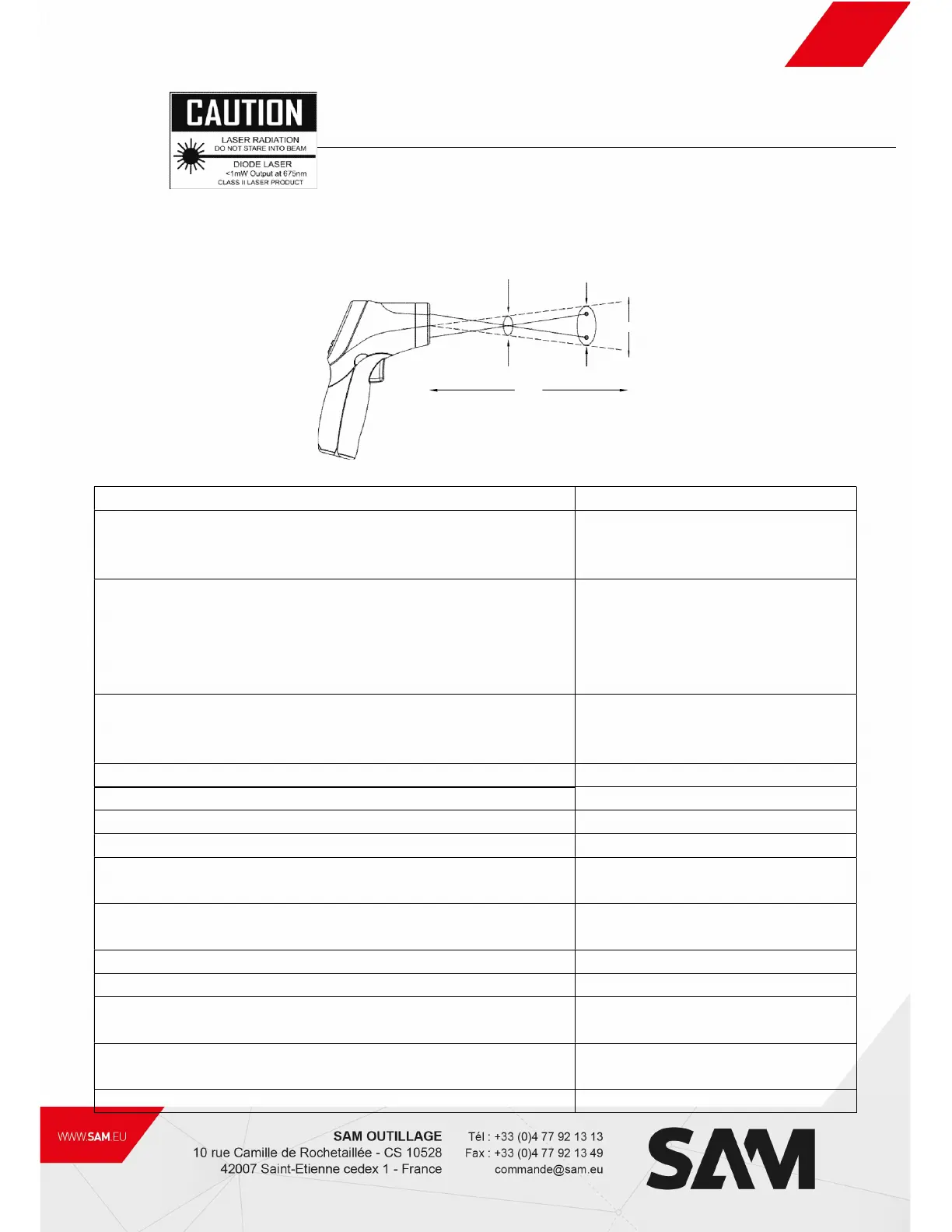

Distance & Spot Size
As the distance (D) from the object increases, the spot size (S) of the area measured by the unit becomes larger. The relationship
between distance and spot size for each unit is listed below. The focal point for each unit is 914mm (36”). The spot sizes indicate
90% encircled energy.
D:S= 12:1
12.5mm @ 150mm
25mm @ 300mm
1. SPECIFICATIONS
Temperature range D: S
-50 to 550°C (-58°F ~ 1022°F)
Display resolution 0.1 °C (0.1°F)
1°F
12:1
<1000
>1000
Accuracy for targets:
Assumes ambient operating temperature of 23 to 25°C (73 to 77°F)
-50°C ~ 20°C (-58°F ~ 68°F)
20°C ~300°C (68°F ~572°F)
300°C ~550°C (572°F ~ 1022°F)
-±2.5°C (4.5°F)
±1.0% ±1.0°C (1.8°F)
±1.5%
Repeatability
-50~20°C (-58~68°F)
20~550°C (68~1022°F)
±1.3°C (2.3°F)
±0.5% or ±0.5°C (0.9°F)
Response time 150ms
Spectral response 8~14um
Emissivity Digitally adjustable from 0.10 to 1.0
Over range indication LCD will show “ --- ”
Polarity Automatic (no indication for positive polarity)
Minus (-) sign for negative polarity
Diode laser output <1mW, Wavelength 630~670nm,
Class 2 laser product
Operating temp. 0 to 50°C (32 to 122°F)
Storage temp. –10 to 60°C (14 to 140°F)
Relative humidity 10%~90%RH operating, <80%RH
storage
Power supply 9V battery, NEDA 1604A or IEC 6LR61,
or equivalent
Safety “ CE ” Comply with EMC
S
0.5in @ 6in.
1in @12in.
