Samaire SA493 - Installation Instructions; Step 1: Assemble Canopy and Coupling Cover; Step 2: Route Wires and Fix Downrod

3
Installation Instruction
IMPORTANT:SWITCH OFF THE ELECTRICAL MAINS AT THE MAIN CIRCUIT BREAKER
FUSE BOX.

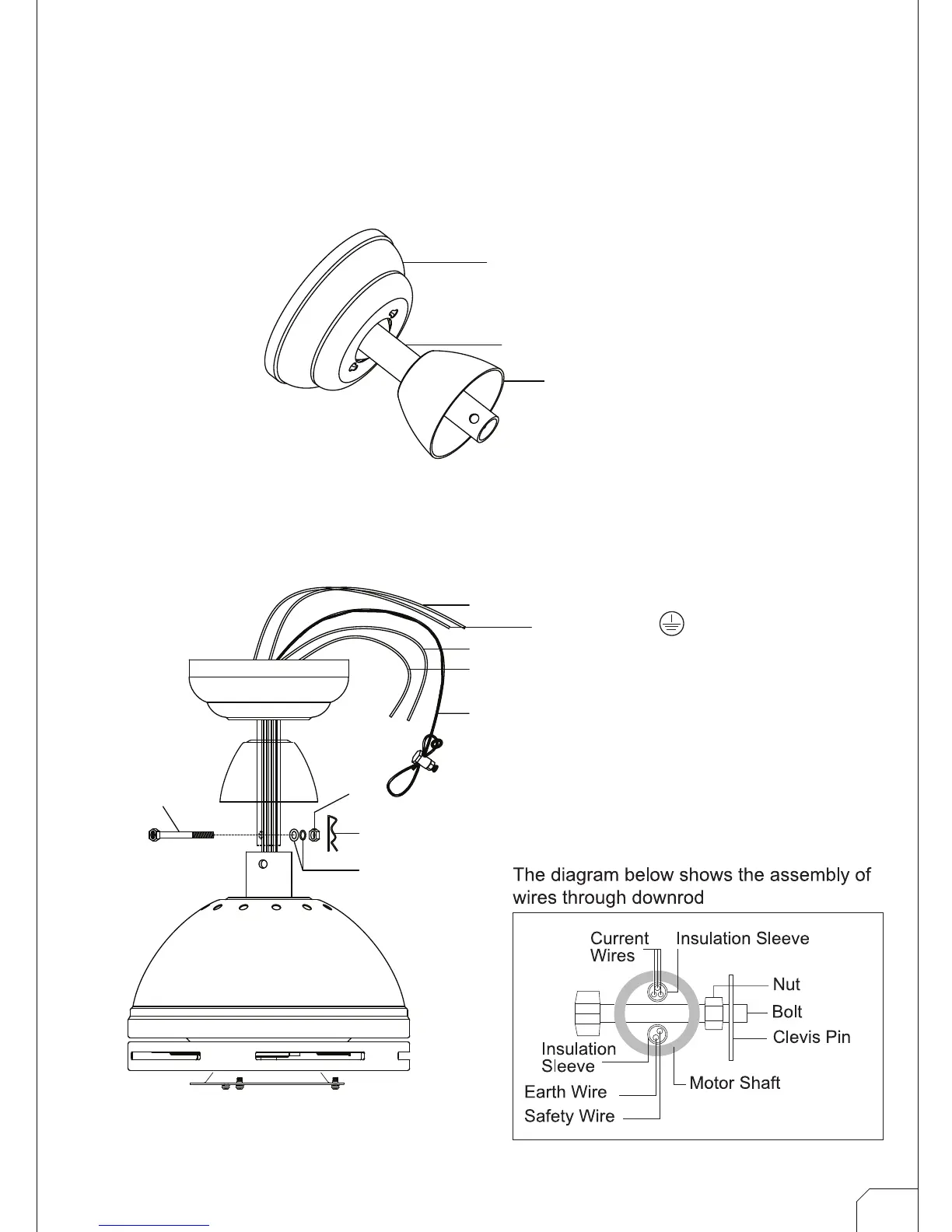

Step 1 - Remove the clevis pin,nut and bolt on the rubber pulley. Assemble the canopy and the
Coupling Cover on the downrod.
Step 2 - Route the safety wire, yellow/green, orange, blue and brown wires through the downrod.
Fix the downrod to the shaft with bolt and nut and tighten them firmly the in
sert the clevis pin.
Downrod
Canopy
Coupling Cover
ORANGE (LIGHT)
Washer
R Pin
Nut
Bolt
Safety Wire
Blue (N)
Brown (L)
Motor
GREEN/YELLOW
