Samaire SA493 - Step 5: Attach Fan Blades; Step 6: Install Light Bulbs

5
Installation Instruction
Step 6 -Install the bulbs into the socket (Max. 18W/socket)

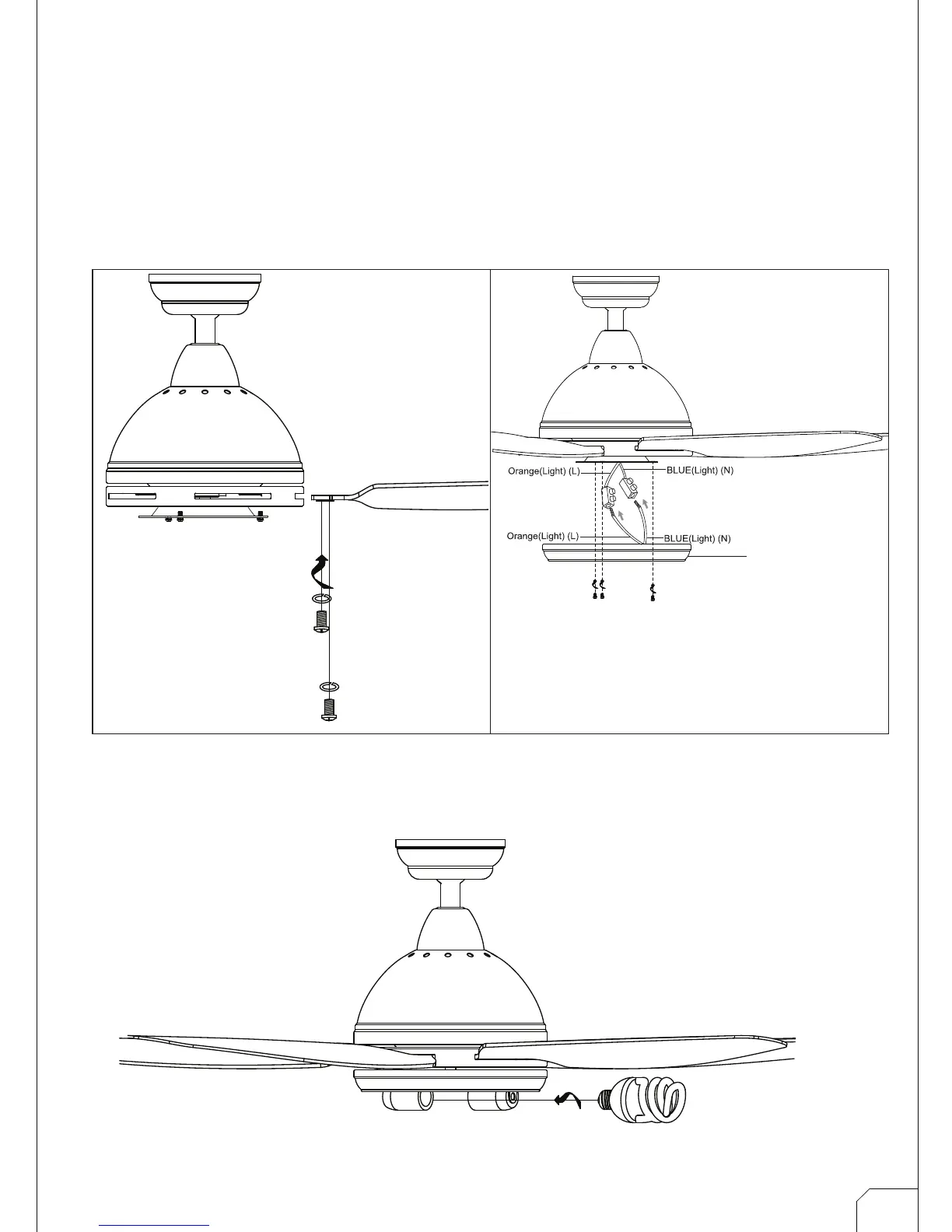

Step 5 -
Important: Assemble the blades only after the ceiling fan is mounted on the bracket.
5A) Remove the screws at the motor and fix the blade with the piece to the motor using
these screws.
5B) Connect the blue and orange wire from the light kit to the fan motor wire, align the
slotted holes on the light kit and tighten back the 3 screws.
5A
5B
Light kit
