Operator's manual
Trailed disc mowers
KDC
- 36 -

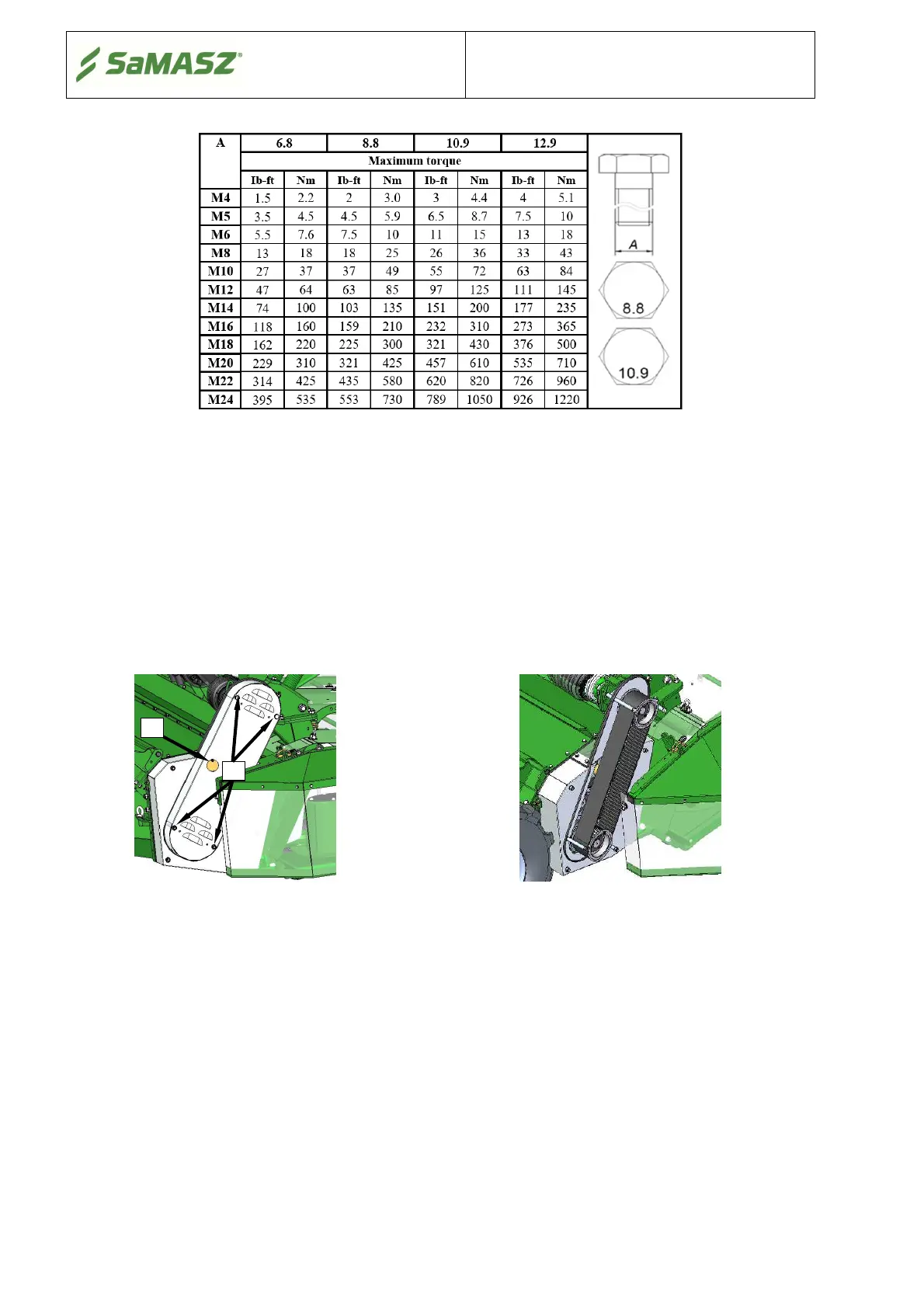

Tab. 8. Torque values for bolts
In the absence of specific torque values, the following chart can be used as a guide to the
maximum safe torque for a particular size and grade of fastener. There is no torque difference for
fine or coarse threads. Torque values are based on clean, dry threads. Reduce value by 10% if
threads are oiled before assembly.
6.11. Controlling condition of cog belt and tension
(Applies to KDC S / KDC W)
Drive from conditioner and rollers driving shaft is transmitted by cog belt onto conditioner’s
axis. Constant belt tension is provided by tightener, adjusted with tensioning bolt B (Fig. 38).
Fig. 37a. Protective guard of drive belt Fig. 37b. View of properly tightened drive belt
When starting for very first time after ca. 2 hours of operation, control tension of cog belt
transmitting the drive onto the conditioner or rollers. If cog belt tension is too low, tighten it as per
decal N175.
