Operator's manual
Trailed disc mowers
KDC
- 38 -
2. Impurities inside belt are removed once conveyor is in vertical position. Belt is deflected with
hand and then impurities are removed with a hook wire.

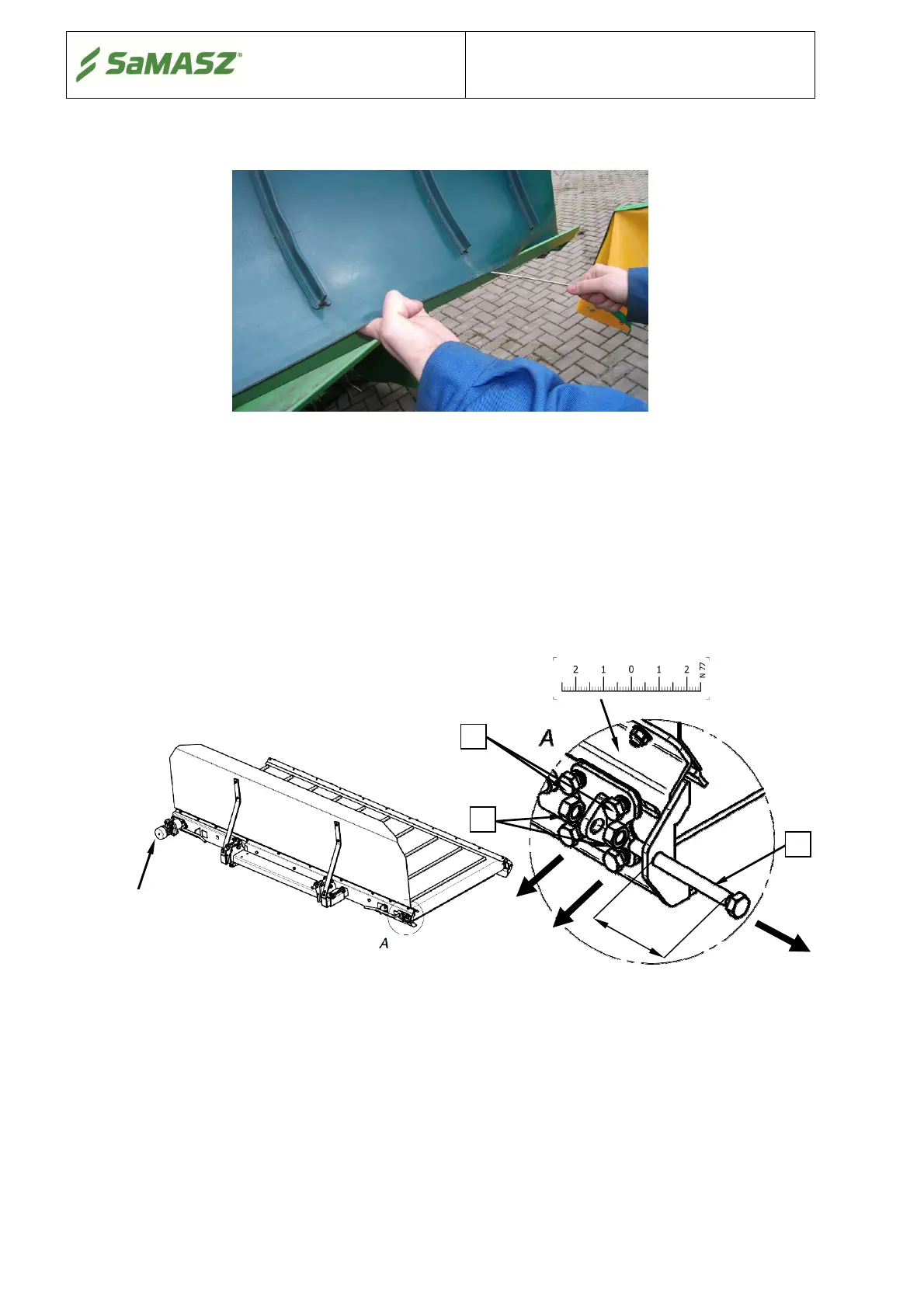

Fig. 40. Removing impurities from inside belt
6.12.2. Conveyor belt replacement and adjustment instruction
KDC mower with conveyors must be mounted on a tractor.
I. Steps to be taken when transporting in operating position (horizontal).
1. Using a marker, mark lines on millimetre measures – decal N-77 (unless belts worked well).
2. Loosen tightening mechanism of tightening roller belt – bolts M10 - S
1
, nuts M12 – N
2
and
unscrew adjustment bolt M12 – S
2
by approx. 30 mm (Fig. 41).
Fig. 41.
3. Unscrew bolts M10 – S
1
, nuts M12 – N
2
adjustment bolts M12 – S
2
of front tighteners(Fig.
42).
engine
(do not adjust)
30 mm
gauge
S
1
S
2
N
