Optional extra equipment:
 warning plate with combined lights and reflectors,
 warning triangle,
 side shift adapter.

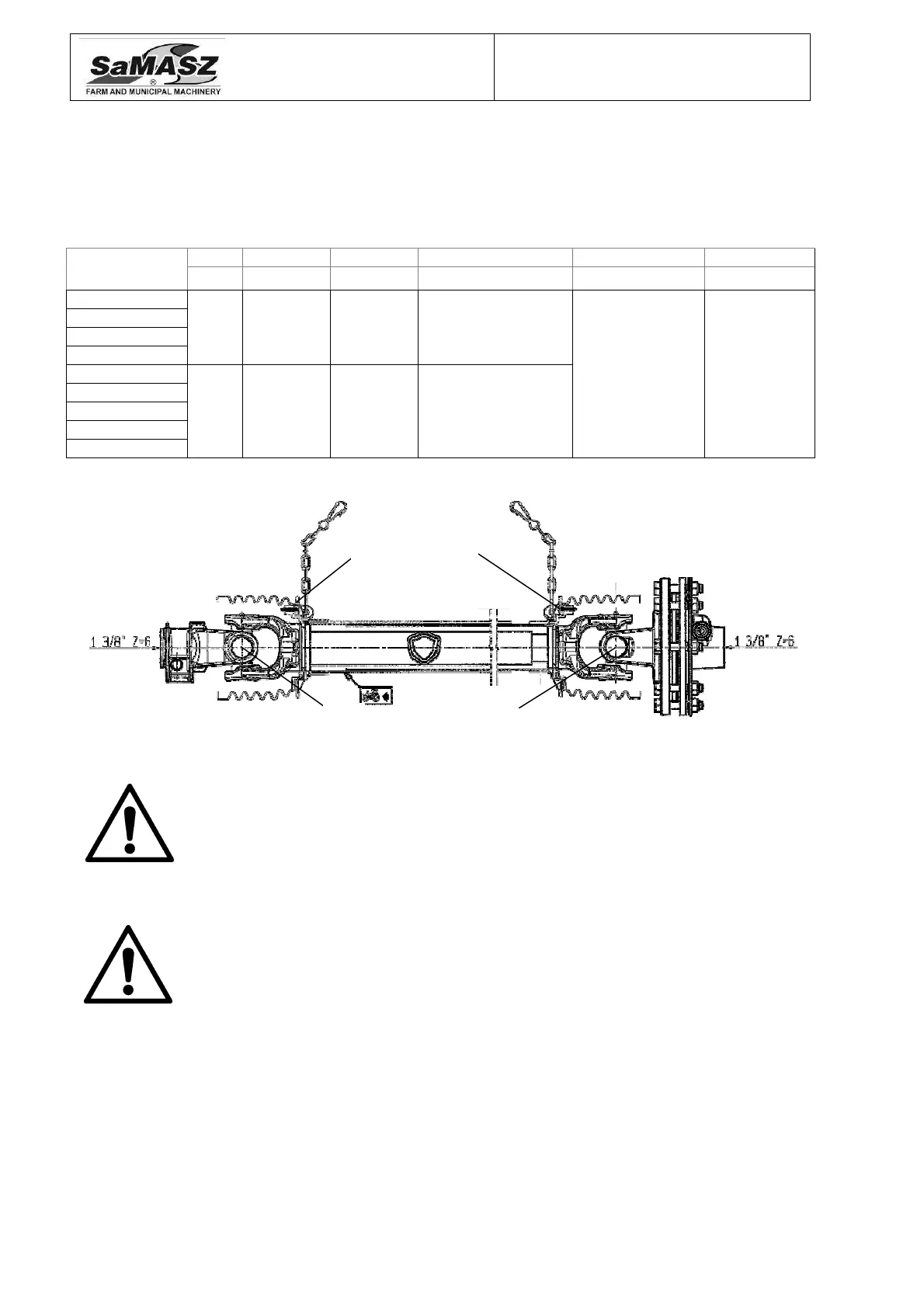

Tab. 6. PTO shaft for front disc mowers
Model
Power Length Moment Symbol Clutch Manufacturer
HP mm Nm
KDF 260
74 850- 1286 520 8G5T085CE007001
Overrunning
clutch = 1200 Nm
Bondioli &
Pavesi
KDF 300
KDF 340
KDF 390
KDF 260 S/SL
100 1010-1543 710 8G7T101CE007002
KDF 300 S/SL/W
KDF 301 S/SL/W
KDF 340 S/SL/W
KDF 341 S/SL/W
Fig. 4. PTO shaft lubrication points. Mounting directions
CAUTION:
Lubricate the PTO shaft with high quality multi-purpose grease every
50 shaft operating hours. The articulated telescoping shaft should also be
lubricated before and after longer periods of disuse.
PTO shafts of other brands with equivalent parameters could be used afer SaMASZ permission.
CAUTION:
Optional extra equipment should be ordered separately.
The mower is equipped with such elements as holders and brackets used to mount warning lights
and plates. Combined lights and reflectors are mounted on the warning plates.
PTO shaft’s end without clutch
–
To be mounted on the
tractor’s side.
PTO shaft’s end with
overrunning clutch – To be
mounted on mower’s side
50h 50h
50h
50h
