❑ lift the cutter bar vertically with hydraulic cylinder and lock the locking pawl (Z) (Fig. 9b),
❑ protect the cutter bar from falling by disconnecting shut-off valve (Z) (Fig. 12b) found on mower's
cylinder,
❑ dismount PTO shaft from tractor,
❑ lift up support leg and secure it with cotter.
WARNING:
During transport, the shut-off valve lever must be closed in (Z) position (Fig.
12b). This prevents the mower against accidental dismantling if unexpected
motion of the tractor and the mower occurs – in worst case, causing potential
cracks on hydraulic hose, leading to an accident.

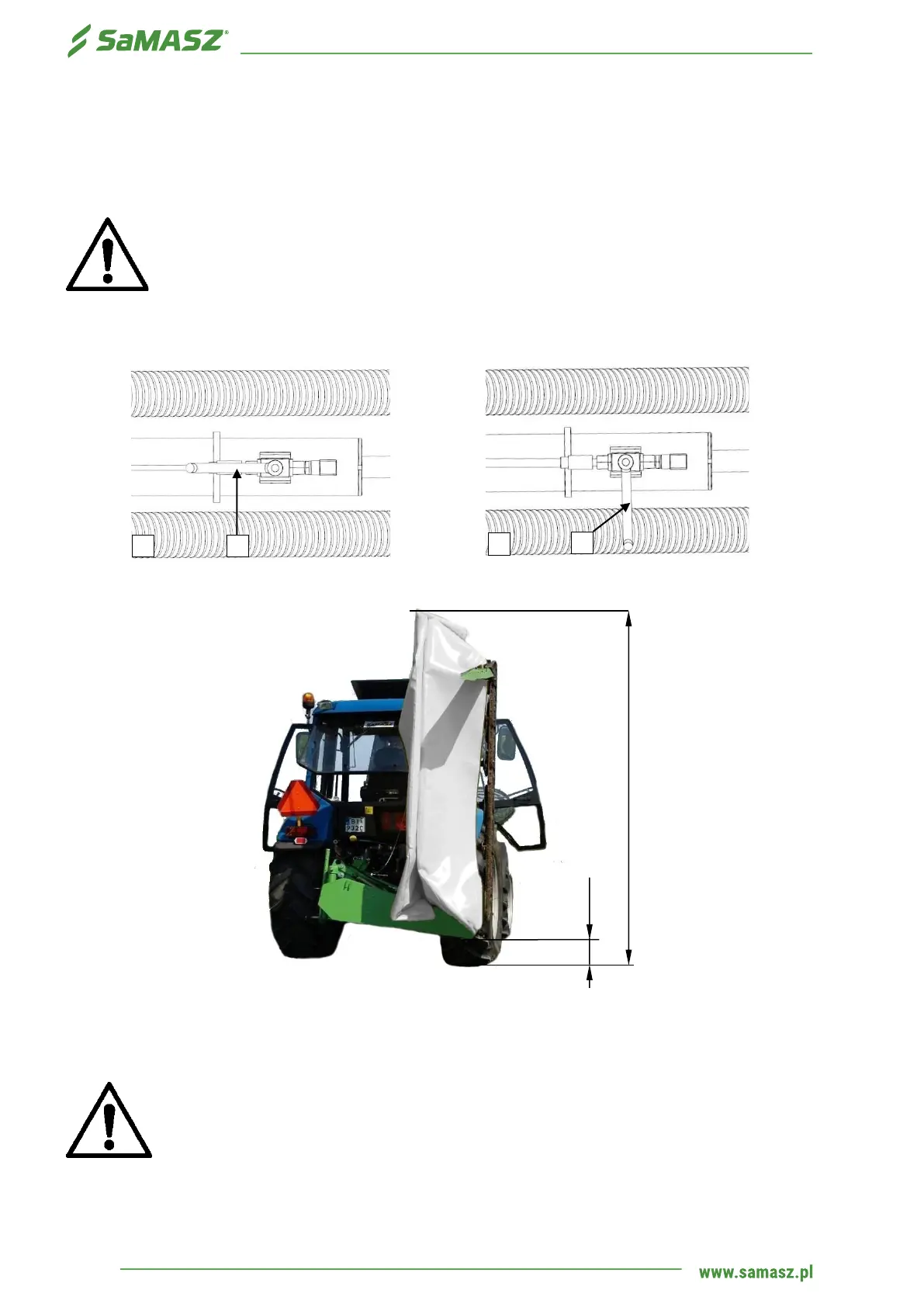

Fig. 12. Cylinder valve in position: a) opened O (work), b) closed Z (transport)
Fig. 13. Transport position
5.4. Preparing mower for transport on public roads
WARNING!
Legal requirements for transport on public roads may differ from state to state.
Check your location's requirements and comply.
To comply with safety precautions concerning transport on the public roads the mower should be
equipped with the following devices:
