3.1. Technical data
Tab. 2. Technical data
Mower type:
SAMBA 160
SAMBA 200
SAMBA 240
SAMBA 280
SAMBA 320
Working width [ft.in.]
5' 3"
6' 7"
7' 10"
9' 2"
10' 6"
Number of knives [pcs]
8
10
12
14
16
Number of discs [pcs]
4
5
6
7
8
Tractor's PTO rears [rpm]
540
1000
Cooperating tractor power [HP]
from 20
from 30
from 45
from 60
from 75
Operating capacity [ac/h]
~ 3.7
~ 5.0
~ 6.2
~ 7.4
~ 8.6
Transport height [ft.in.]
7' 5"
5' 3"
9' 10"
11' 2"
12' 4"
Transport length [ft.in.]
5' 10"
Transport width [ft.in.]
5' 7"
Width after aggregation [ft.in.]
12' 1"
12' 12"
13' 11"
14' 9"
16' 4"
Weight [kg/lbs.]
410 / 903
445 / 981
490 / 1080
505 / 1113
560 / 1235
Cutting speed of knife [m/s]
83
Rotational speed of discs [rpm]
3115
3-point linkage category
I/II
II
Noise level L
pA
77,0 ± 3,0 dB
L
Amax
76,0 ± 3,0 dB
L
Cpeak
98,5 ± 3,0 dB
L
pA
– noise level related to 8 hour working time. Averaged in time acoustic pressure level corrected by
frequency characteristic A.
L
Amax
– maximum value corrected by frequency characteristic A of acoustic pressure level.
L
Cpeak
– peak level of acoustic pressure corrected by frequency characteristic C.
3.2. Design and operating principle

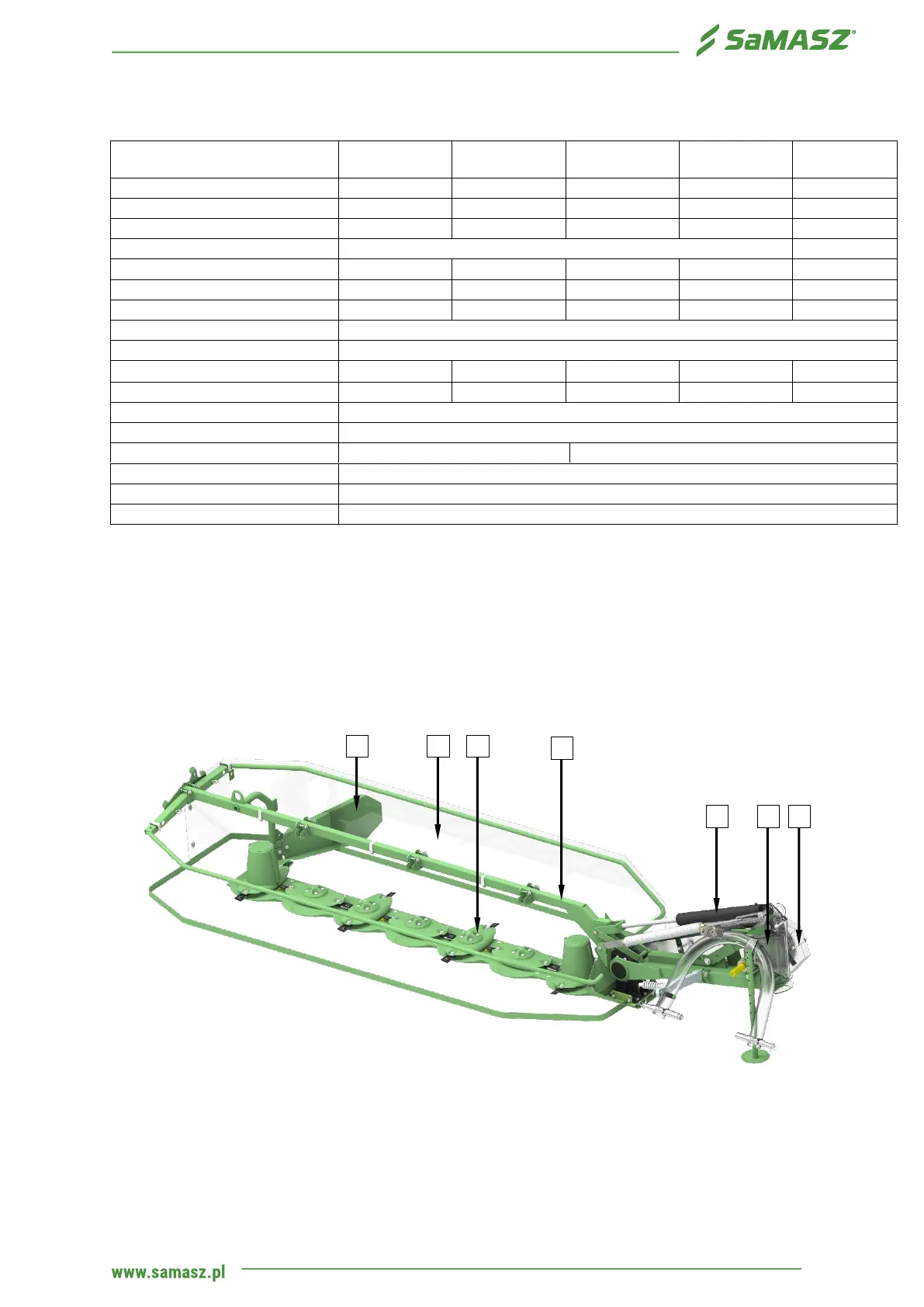

Fig. 2. Overview of rear disc mower SAMBA
1 – Linkage
2 – Cylinder with support spring
3 – Belt gear
4 – Cutter bar
5 – Swath guide
6 – Safety guard
7 – 3-point linkage frame
