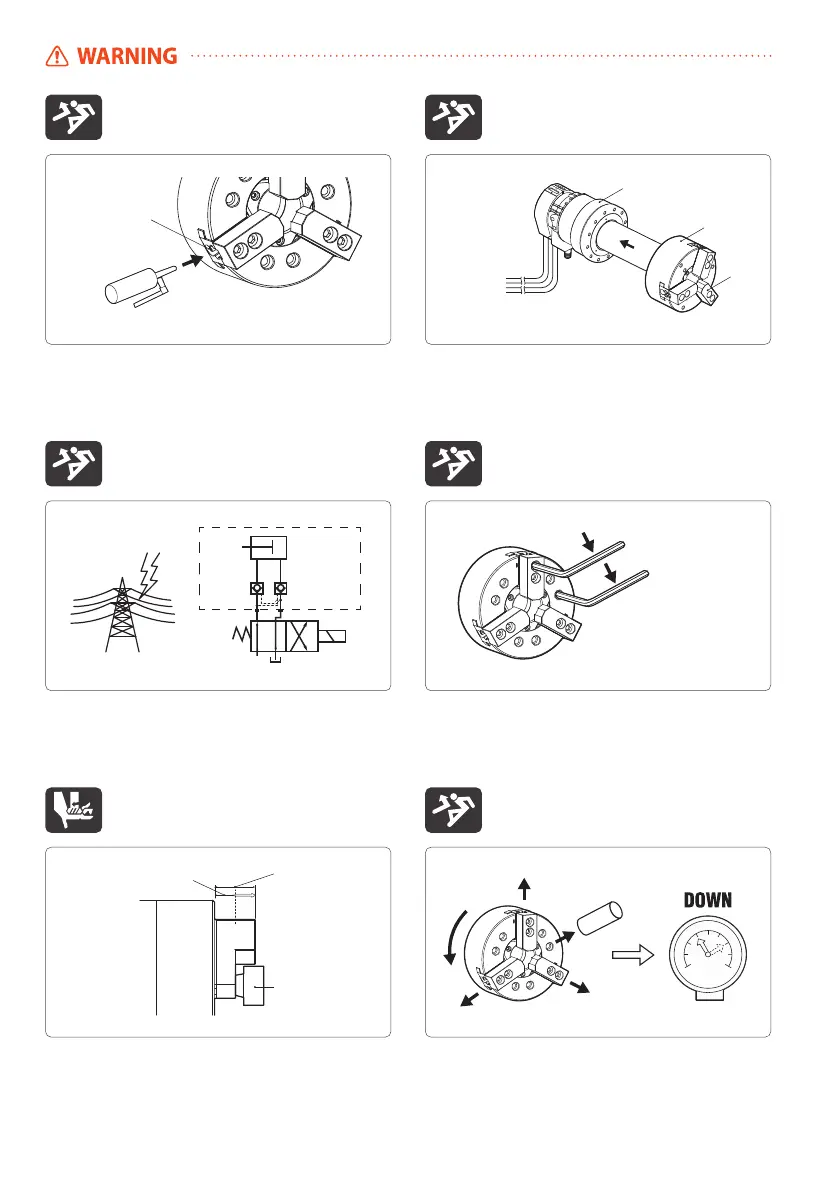

Gripped workpiece may discharge by lighting or inter-
ruption. Set work to correct gripping position.
Danger by discharge of chuck or workpiece in case of
damaging of chuck.
In cases of power failure Samchully Cylinders
are fitted with check valves and pressure
release valves. When power is restored the
solenoid valve resumes its normal function.
When chucking components internally reduce
the hydraulic pressure by more than 50%.
Danger by discharge of workpiece related with lower-
ing gripping force caused by unsucint lubrication.
Do not forget to grease chuck.
Excessive force may cause damage to the cylinder.
Do not exceed Max. permissible input force
related with plunger input force.
Unclamp
Clamp
Solenoid valve
Lighting, Interruption
Cylinder
Danger by discharge of chuck or workpiece.
Secure clamp bolts with specied torque.
(Page16)
Danger by discharge of chuck or workpiece in case of
damaging of chuck.
The height of the jaw should be within the
maximum gripping force limits. (Page32)
Grease gun
Grease nipple
Cylinder
Input force
Chuck
Jaw
Chuck mounting bolt
Jaw mounting bolt
Standard soft jaw height
Special jaw height
Workpiece
Pressure
Guage
