SAMCOM T2 - Page 2

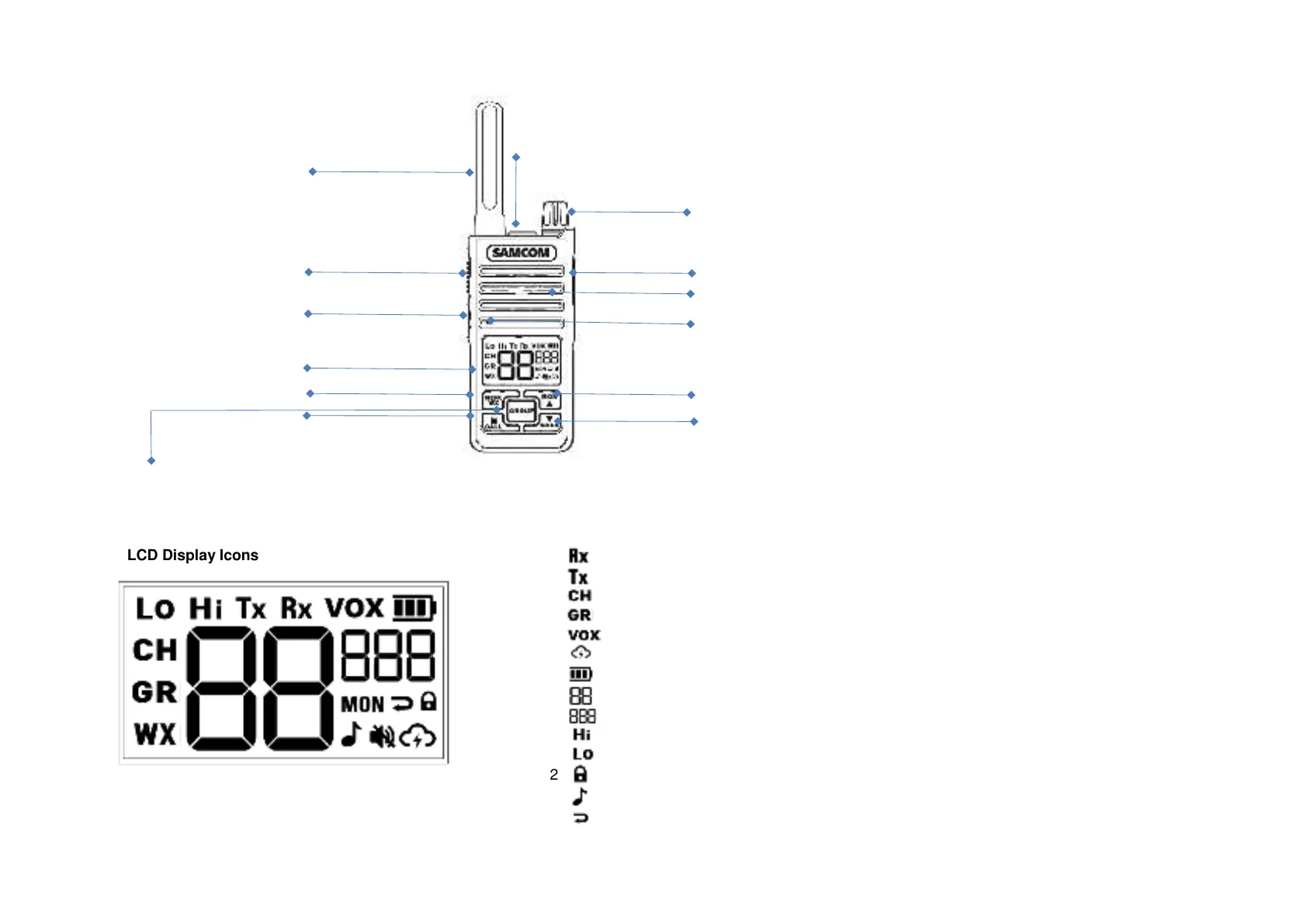

Overview
12
1. LCD display
2. Earphone & Charger Jack
6 3. Push-To-Talk (PTT) key
4. Up / Monitor key
5. Down / Scan key
3 2
6. Power / Volume Knob
11 7. Group key
14
8. Menu / WX key
9. Call Tone /Key-Lock key
10. Microphone
1
11. Speaker
8 4
12. Antenna
9
13. Flashlight LED
14. Flashlight key
● GROUP Button – A dual-receiving and dual-transmitting function which enable radio to monitor
two channals at the same time. And it configured to transmit a communication signal on a secondary channel.
LCD Display Icons
1
: Receiving status
2
: Transmitting status
3
: Main Channel (Foreground)
4 : Group Channel (Background)
5
: VOX (Voice-activiated TX)
6
: Weather Receiver
7
: Battery Level
8
: Channel Number
9
: CTCSS/CDCSS Code Number
10 : High TX Power
11 : Low TX Power
12 : Key Lock
13
: Key Beep
14
: Channel Scan
10
5
13
