Amps, VA” and “Power Factor, PF” will not be displayed (will be displayed as “0”).
This is necessary because at power output < 2.5W, the noise on the output side
may be comparable to the low value of the load and the logic may not be able
to differentiate noise from load and hence, may display wrong values for these
parameters
Power Saving / Sleep Mode in the LCD Display
To save power, the LCD display will remain ON for 3 minutes from the time the
Display Push Button (2) is pressed and will then switch OFF into Sleep Mode. To
wake up, press the Display Push Button (2).

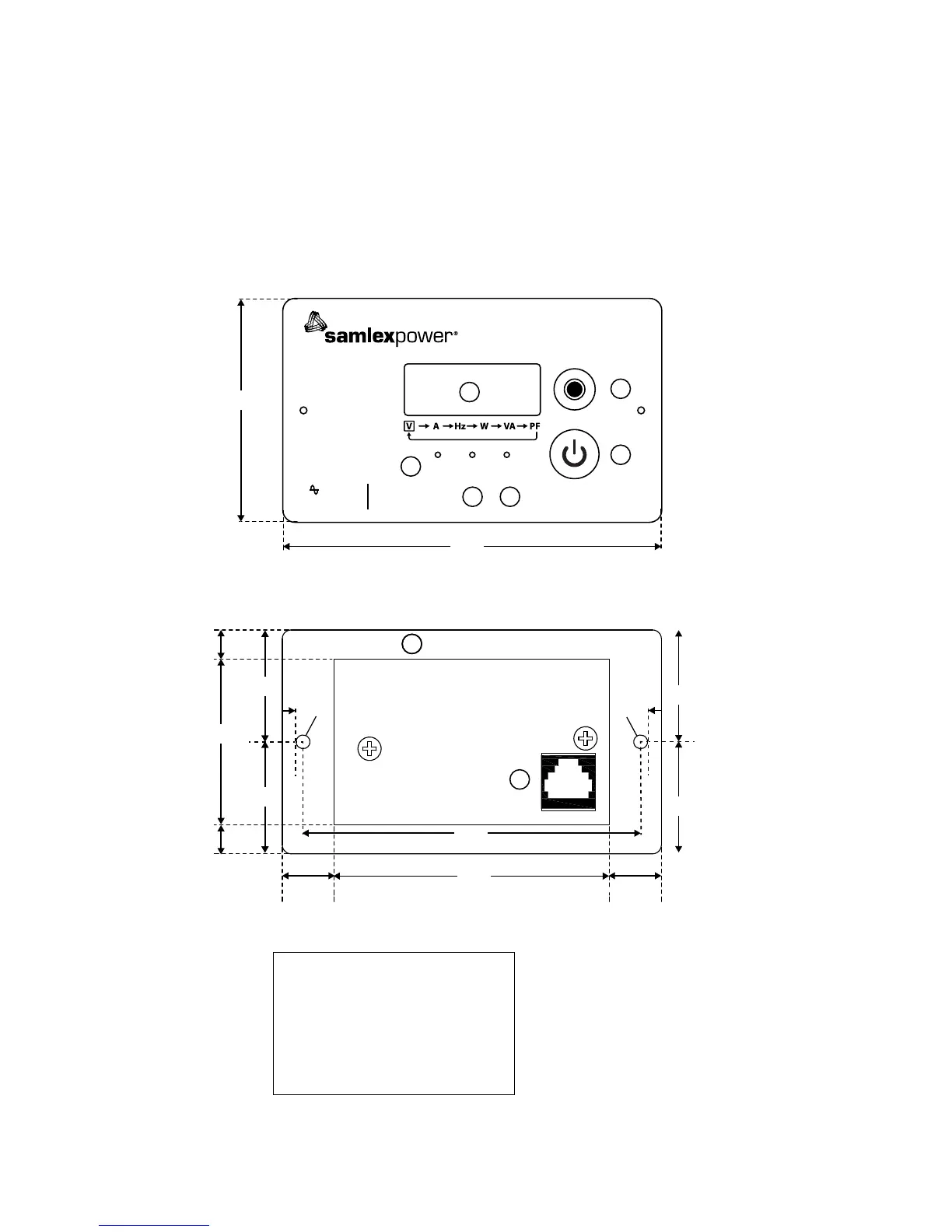

Fig. 1 Remote Control RC-200 - Layout and Dimensional Drawing
4
32,5
32,5
65
110
OVER
LOAD
OVER
TEMP
POWER
DISPLAY
MODEL RC-200
Pure
Sine Wave
8,5
15
8,5
15
48
Overall Depth: 25.5
Front View
Back View
1
11
2
3
4
5
6
7
R2 R2
32,5
32,5
4
32,5
32,5
98
80
LEGEND
1. Power ON/OFF Push Button
2. Push Button to Change Display Screen
3. LCD Screen
4. LED - “Overload”
5. LED - “Over Temp”
6. LED - “Power
7. RJ-50 Modular Jack
(NOTE: All dimensions in mm)
