4 | SAMLEX AMERICA, INC.
SECTION 2 | Layout & Dimensions

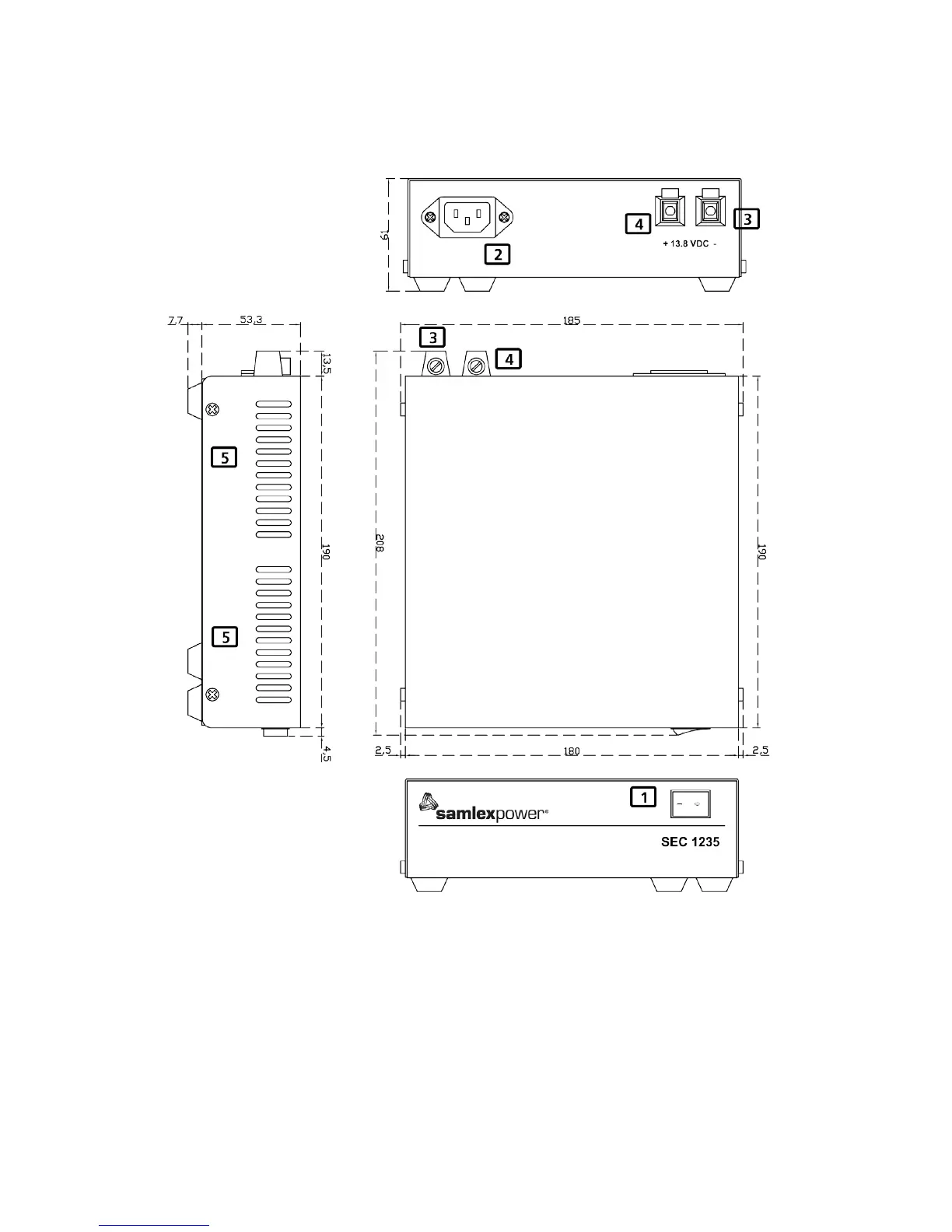

Figure 2.1 Layout & Dimensions - SEC-1235
1. Lighted Power ON/OFF Rocker Switch (Lights Red when ON)
2. AC Power Cord Inlet: Type “IEC 320-C14” for detachable power cord with “IEC 320-C13”
connector on one end and NEMA5-15P plug on the other end.
3. Black Negative (-) DC Load Terminal {Tubular hole Dia 5mm/0.2” and set screw (slot head, #10, 24 TPI, 5/16” long)}
4. Red Positive (+) DC Load Terminal {Tubular hole Dia 5mm/0.2” and set screw (slot head, #10, 24 TPI, 5/16” long)}
5. Air inlet slots for cooling fan (cooling fan and air outlet slots at the bottom - not shown)
Dimensions: WxDxH 185 x 208 x 61 mm / 7.28 x 8.19 x 2.40 in
