5
5

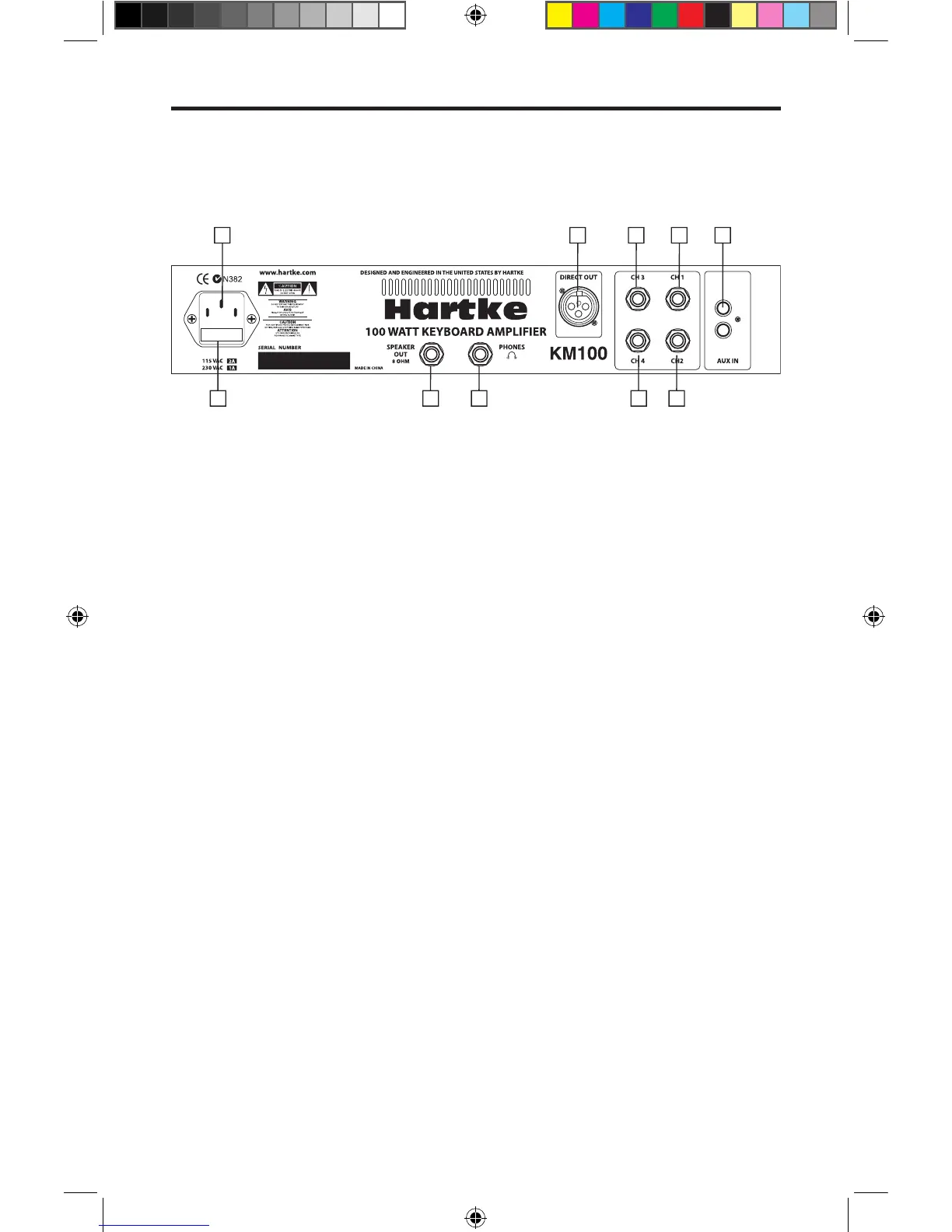

Guided Tour - Rear Panel

A AC INLET - Connect the supplied standard IEC power cable here.
B. Direct Output
XLR - This connector carries the Balanced signal from the KM60 or 100's
mixer output and can be used to connect to the main PA mixer
.
C.
Channel 3 Input - 1/4-inch phone jack for connecting line level inputs. Use this input if
you are connecting a mono signal source.
D. Channel 1 Input - 1/4-inch phone jack for connecting line level inputs like those from key-
boards and drum machines.
E. Aux Input – RCA inputs for connecting an external line level signal like that from a CD, MP3
player or sound card.
F. FUSE - User accessible fuse.
G. PHONES - Connect any stereo headphone (600 ohms or less) to this standard 1/4" stereo
jack. When a plug is inserted into the headphone jack, the speaker output is disconnected,
allowing you to use your KM60 or KM100 as a practice amplifier. The level of the signal sent
to the headphones is determined by the setting of the Output knob—at the point where a
connected speaker would clip, the headphones will clip.
WARNING: Because even the smallest KM Series amplifier is capable of generating extremely high
headphone signal levels, always start with the Volume knob at minimum and then slowly turn it up. In
particular, a clicking sound is an indication of distortion and possible damage to the headphones (and/
or your hearing!); don’t let things get to that point!
H. Speaker Output - 1/4-inch phone jack for connecting the internal sp
eaker (KM100 only).
I.
Channel 4 Input - 1/4-inch phone jack for connecting line level inputs like those from key-
boards and drum machines.
J.
Channel 2 Input - 1/4-inch phone jack for connecting line level inputs like those from key-
boards and drum machines.
.
KM60100_ownman_v1.indd 5 11/21/05 10:38:39 PM
