Microphone Wiring Guide
10

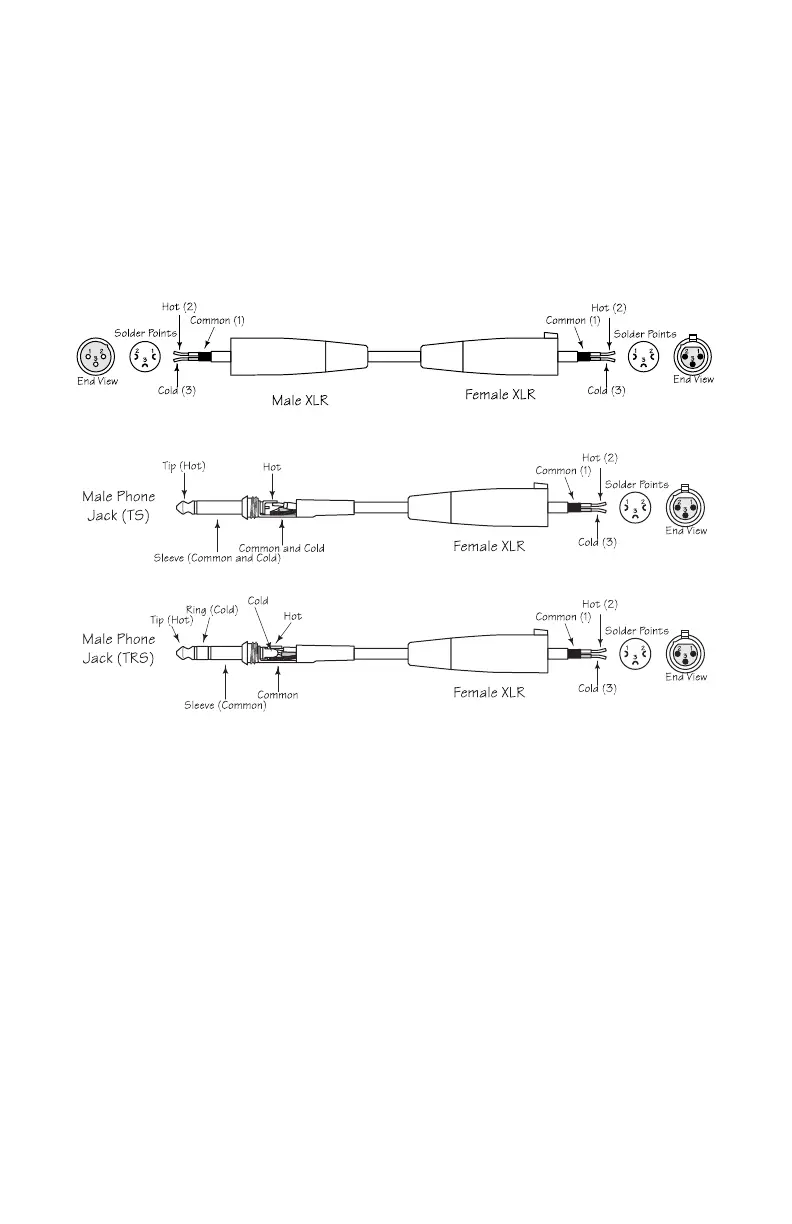

The 7KIT mics can be connected to any mixer, mixer/amplifier, or mic preamp
using a standard microphone cable. As shown in the wiring diagrams below, con-
nect the female XLR end directly to the microphone’s gold-plated connector and
the other end (normally a male XLR end, although some mixers use 1/4" connec-
tors) to the mixer, mixer/amplifier, or mic preamp.
