Samson C03 User Manual

Samson Technologies Corp.
575 Underhill Blvd.
P. O. Box 9031
Syosset, NY 11791-9031
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: 516-364-3888
www.samsontech.com
Specifications
Type Condenser Microphone

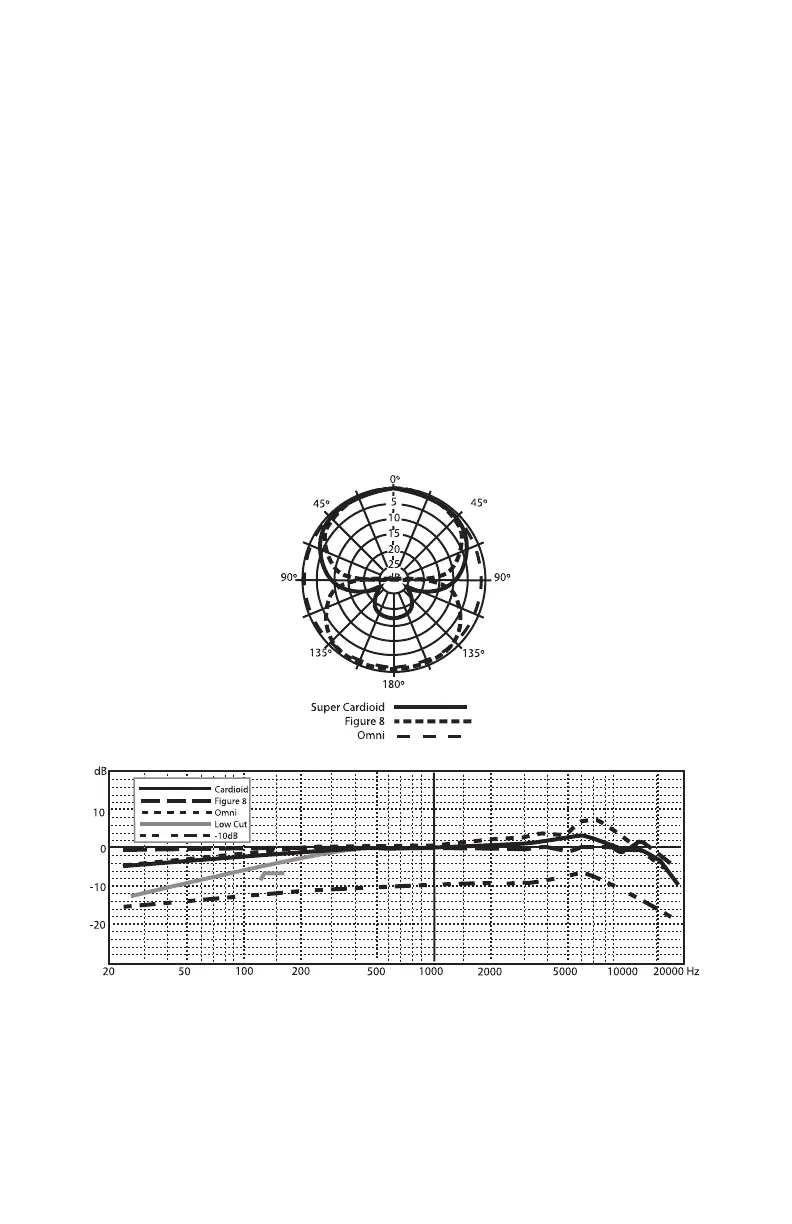

Polar Pattern Super Cardioid/Fig. 8/Omni
Frequency Response 40~18000 Hz
Sensitivity -40 dBV/pa (10mv/pa)
Rated Impedance 350Ω
Equivalent Noise level 23 dB (A weighted IEC/DIN 651)
Max. SPL 142 dB (THD≤ 0.5% 1000 Hz)
Dynamic Range 119 dB
Power Supply 48V Phantom Power (IEC 268-
15/DIN 45596)
Current Consumption 7.0 mA
Dimensions ø 54 x 180 mm
Weight 460g
Specifications subject to change without notice.
C03 Specifications

Samson C03 Specifications

Microphone Specifications

type	Condenser Microphone
polar pattern	Super Cardioid/Fig. 8/Omni
frequency response	40~18000 Hz
sensitivity	-40 dBV/pa (10mv/pa)
rated impedance	350Ω
equivalent noise level	23 dB (A weighted IEC/DIN 651)
max SPL	142 dB (THD≤ 0.5% 1000 Hz)
dynamic range	119 dB

Power

power supply	48V Phantom Power (IEC 268- 15/DIN 45596)
current consumption	7.0 mA

Weight and Dimensions

dimensions	ø 54 x 180 mm
weight	460g
