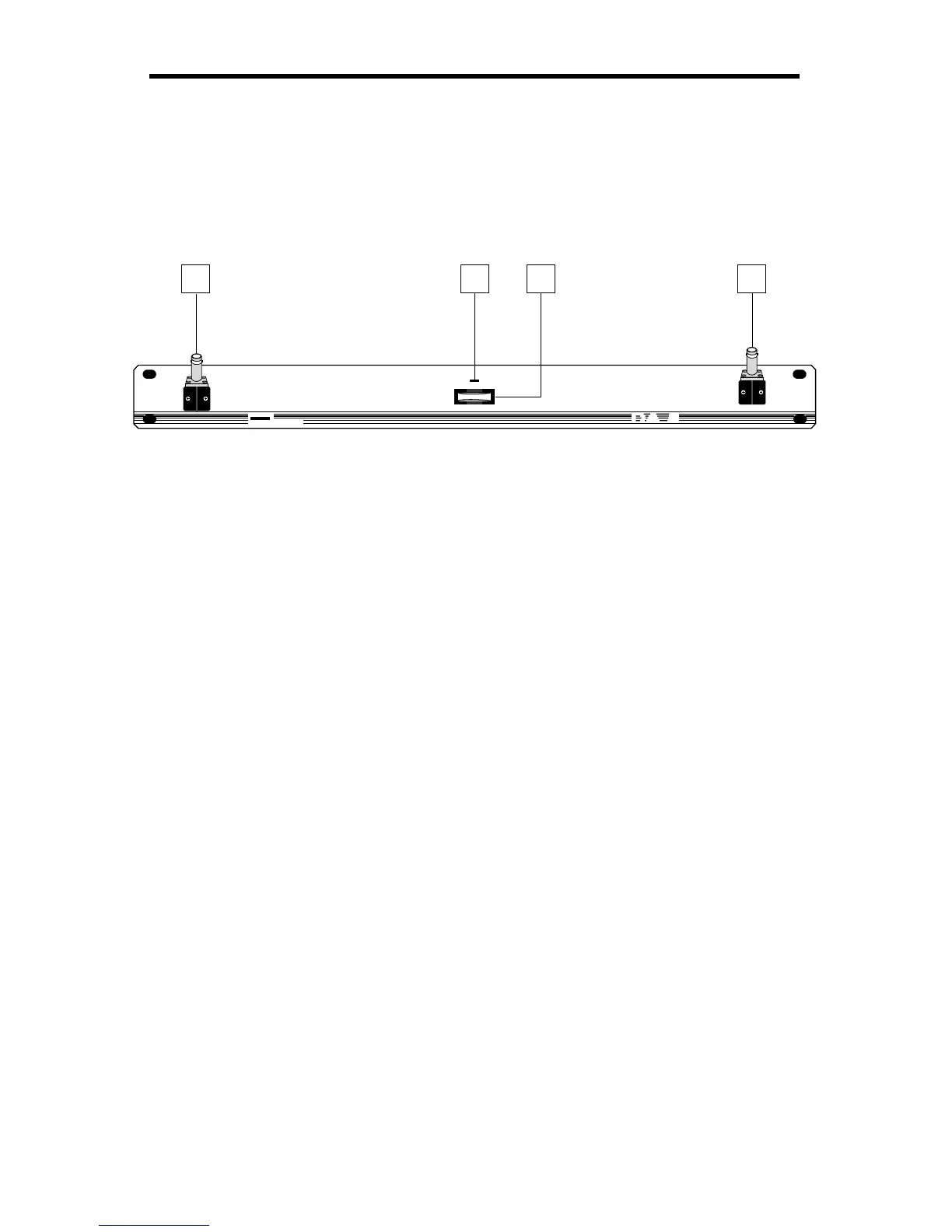

Guided Tour - DA-5L Front Panel
1: Antenna A and B mountings - Connect a pair of tuned coaxial
antennas to these mountings. Use the antennas provided with your
Samson UHF receiver, or, if unavailable, substitute the following anten-
nas only: Samson Part Number
ANT 800. Third-party antennas should
not be substituted. These antenna mountings are phantom powered;
take care not to short them. See the section in this manual entitled
“Setting Up and Using the DA-5L” (on page 31) for information about
antenna installation and positioning.
2: “Power” LED - This is lit whenever the DA-5L is powered on.
3: Power switch - Use this to turn the main power on and off. When
the DA-5L is on, the “Power” LED (see #2 above) will be lit.
