Samson Resolv 50a - Rear Panel Layout

5
ENGLISH
1 VOLUME
- Controls the amount of output level.
2 RCA
– Used to connect signals from unbalanced,
–10dBV devices.
3 1/4-INCH PHONE
– Balanced TRS (Tip, Ring,
Sleeve) 1/4-inch phone plug used to connect
balanced or unbalanced line level signals.

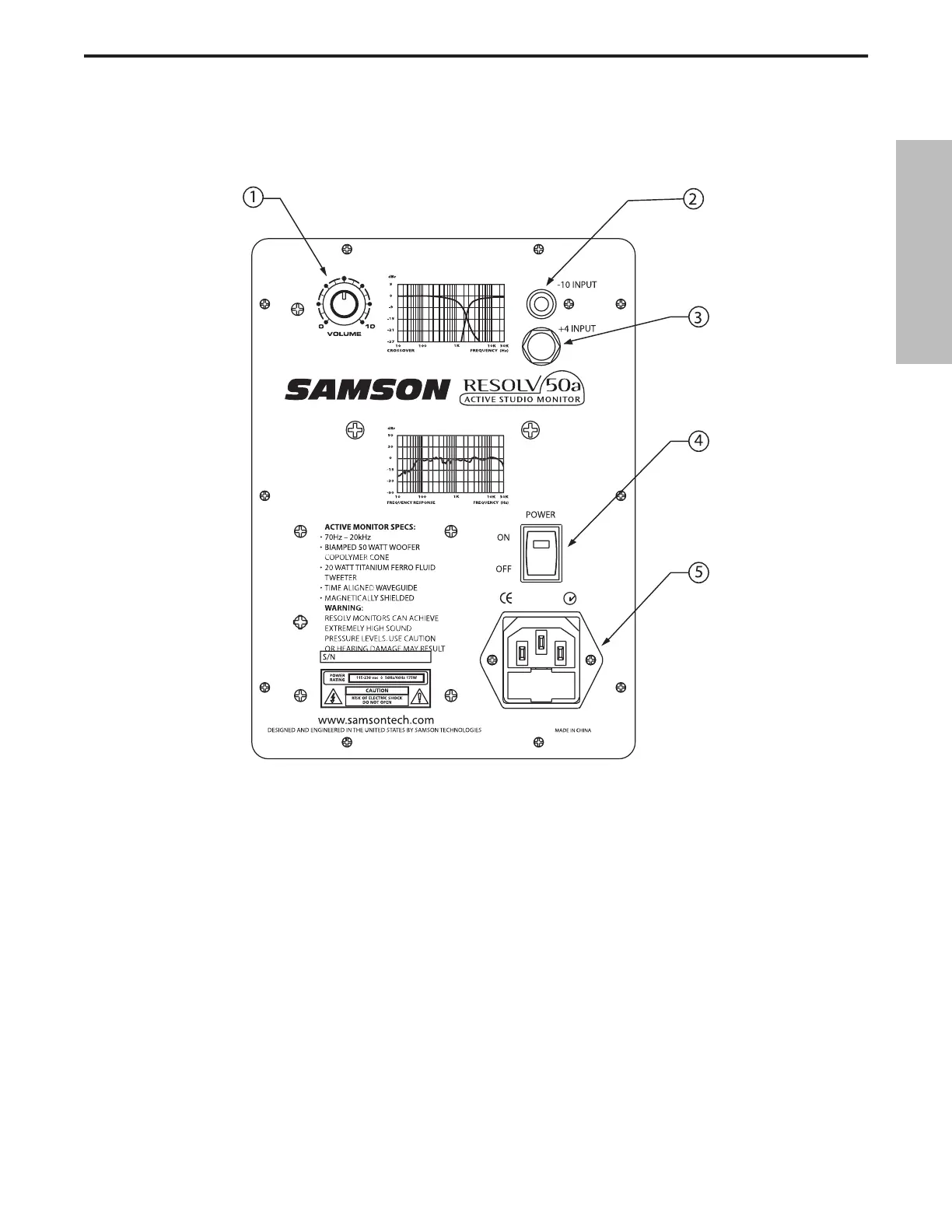

RESOLV 50a Layout
Rear Panel Layout
4 POWER SWITCH
– Main power switch (when set
to the ON position) illuminates green indicat-
ing the RESOLV 50a is powered up and ready for
operation.
5 AC INLET
- Connect the supplied IEC power
cable here.
