XM410 System Set-Ups

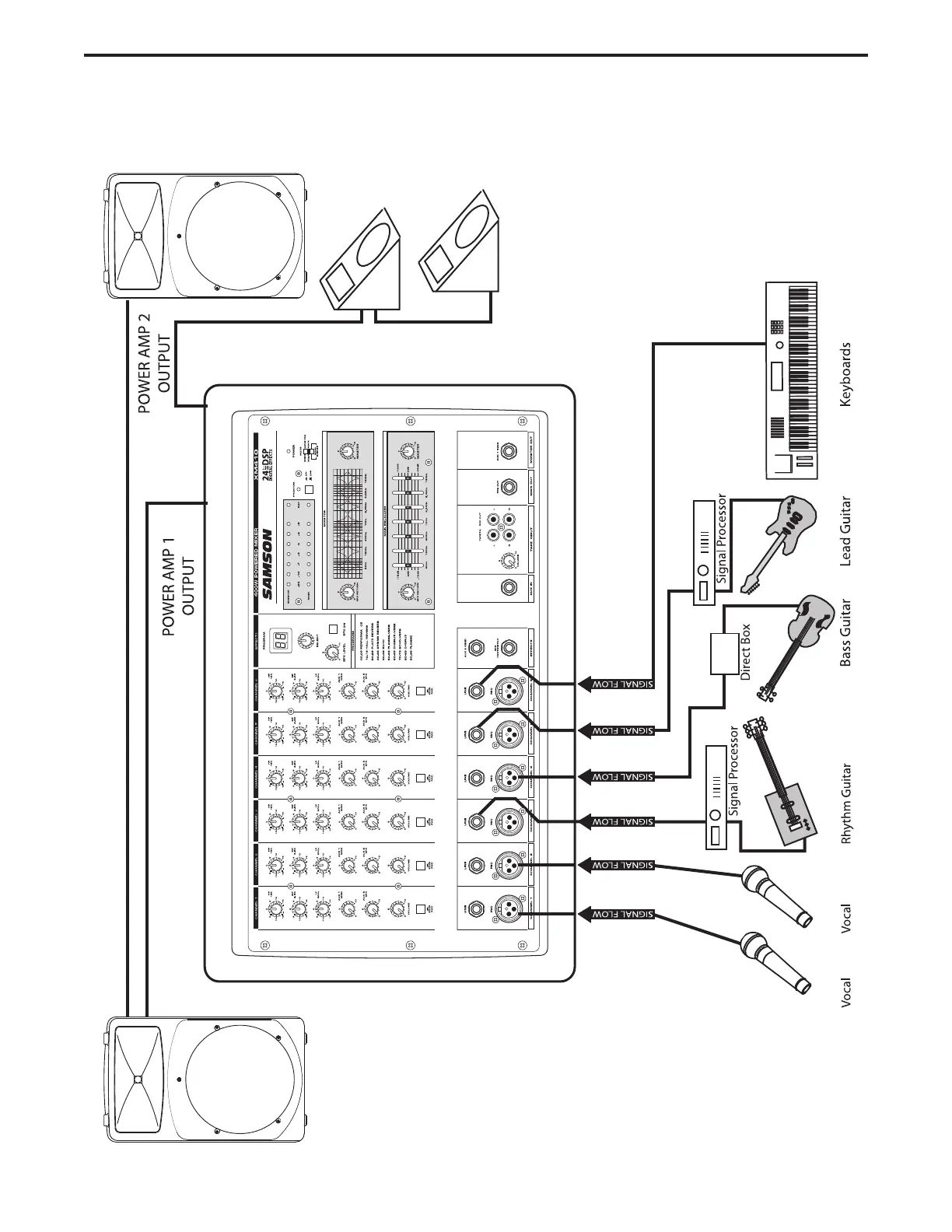

This system shows the XM410 power amp oper- ating in MAIN/MONITOR mode, with two speakers connected to POWER AMP 2 and two moni- tor speakers speaker connected to POWER AMP 1. For inputs, two microphones are con- nected to channel 1 and 2’s low-impedance inputs, and the output of the Bass Direct Box is also connected to the Low-Impedance input on channel 4. The Keyboards, as well as the Lead and Rhythm Guitar signal processors’ outputs, are connected to the XM410’s line inputs.
